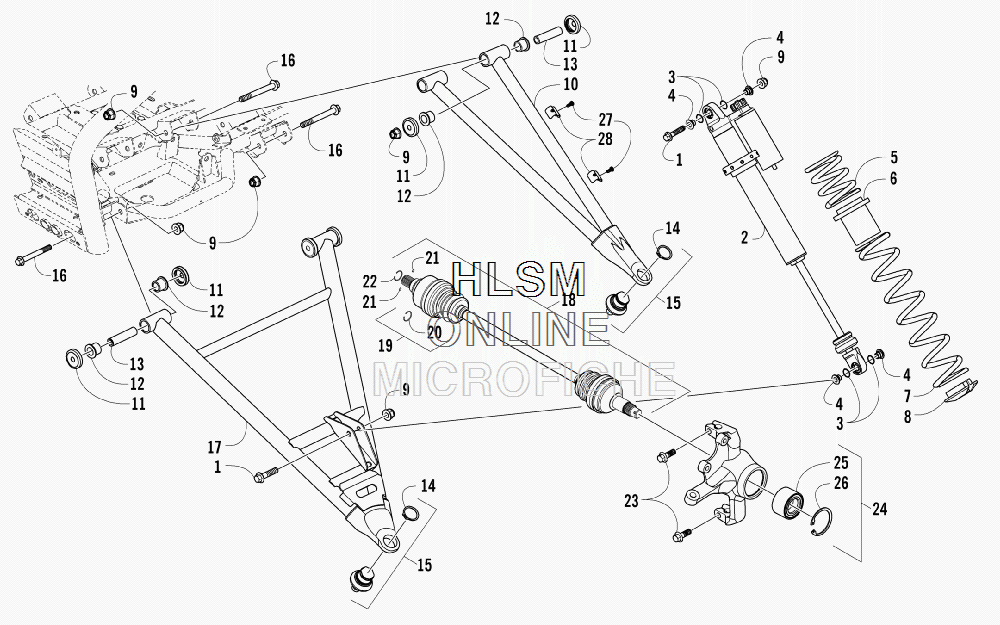

FRONT SUSPENSION ASSEMBLY для Arctic Cat Wildcat 1000 - BLACK [U2013W2W1PUSQ] - 2013 года выпуска

  • №
    Артикул
    Название
  • 1
    8409-050 SCREW, CAP
    SCREW, CAP
  • 2
    0403-251 SHOCK ABSORBER (INC. 3-4)
    SHOCK ABSORBER (INC. 3-4)
  • 3
    0403-273 ...O-RING
    ...O-RING
  • 4
    0403-268 ...SPACER
    ...SPACER
  • 5
    0503-503 SPRING, SUSPENSION - UPPER - WHITE
    SPRING, SUSPENSION - UPPER - WHITE
  • 6
    0403-280 GUIDE, SPRING
    GUIDE, SPRING
  • 7
    0503-502 SPRING, SUSPENSION - LOWER - WHITE
    SPRING, SUSPENSION - LOWER - WHITE
  • 8
    0403-272 RETAINER, SPRING
    RETAINER, SPRING
  • 9
    8428-002 NUT, LOCK
    NUT, LOCK
  • 10
    0503-556 A-ARM, UPPER RIGHT - BLACK (INC. 11-15)
    A-ARM, UPPER RIGHT - BLACK (INC. 11-15)
  • 10
    0503-557 A-ARM, UPPER LEFT - BLACK (INC. 11-15)
    A-ARM, UPPER LEFT - BLACK (INC. 11-15)
  • 11
    3313-113 ...SEAL
    ...SEAL
  • 12
    0403-264 ...BUSHING
    ...BUSHING
  • 13
    0403-250 ...AXLE
    ...AXLE
  • 14
    0423-009 ...RING, RETAINING
    ...RING, RETAINING
  • 15
    0405-483 ...BALL JOINT
    ...BALL JOINT
  • 16
    8413-090 SCREW, CAP
    SCREW, CAP
  • 17
    0503-558 A-ARM, LOWER RIGHT - BLACK (INC. 11-15)
    A-ARM, LOWER RIGHT - BLACK (INC. 11-15)
  • 17
    0503-559 A-ARM, LOWER LEFT - BLACK (INC. 11-15)
    A-ARM, LOWER LEFT - BLACK (INC. 11-15)
  • 18
    1502-774 AXLE - FRONT - LOCKING (INC. 19-22)
    AXLE - FRONT - LOCKING (INC. 19-22)
  • 19
    1436-410 ...REPAIR KIT, BOOT (INC. 20)
    ...REPAIR KIT, BOOT (INC. 20)
  • 20
    1441-988 ......CLIP, RETAINING
    ......CLIP, RETAINING
  • 21
    1402-885 ...PIN, DETENT
    ...PIN, DETENT
  • 22
    1402-889 ...CLIP, RETAINING
    ...CLIP, RETAINING
  • 23
    0423-998 SCREW, SHOULDER
    SCREW, SHOULDER
  • 24
    0503-484 KNUCKLE - ASSEMBLY - RIGHT (INC. 25-26)
    KNUCKLE - ASSEMBLY - RIGHT (INC. 25-26)
  • 24
    0503-485 KNUCKLE - ASSEMBLY - LEFT (INC. 25-26)
    KNUCKLE - ASSEMBLY - LEFT (INC. 25-26)
  • 25
    1402-809 ...BEARING
    ...BEARING
  • 26
    0423-423 ...RING, RETAINING
    ...RING, RETAINING
  • 27
    0423-946 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 28
    0403-257 CLIP, ROUTING
    CLIP, ROUTING
