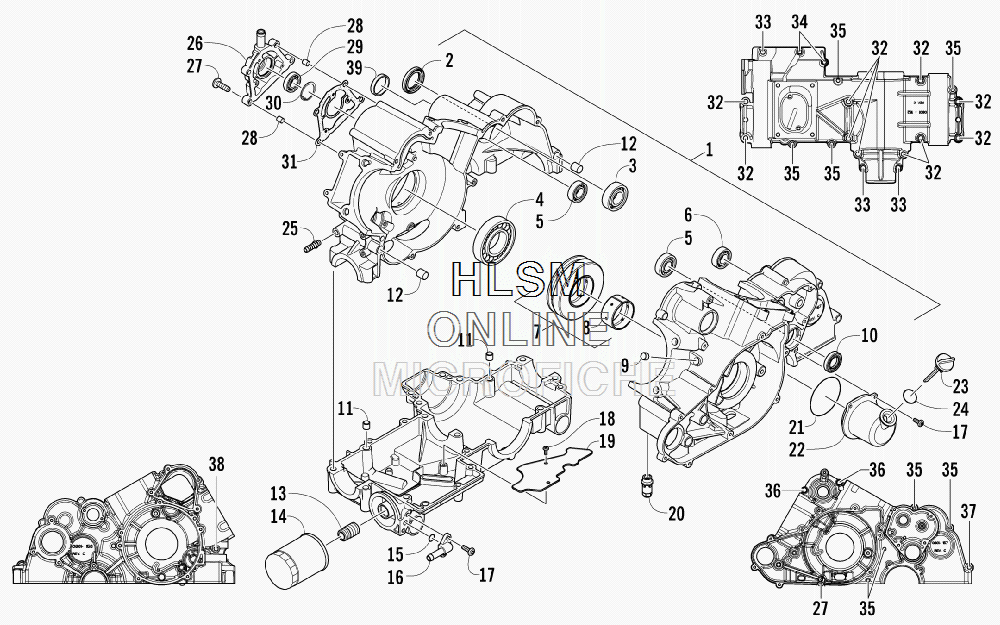

CRANKCASE ASSEMBLY для Arctic Cat Wildcat 1000 - BLACK [U2013W2W1PUSQ] - 2013 года выпуска

  • №
    Артикул
    Название
  • 1
    0801-211 CRANKCASE - ASSEMBLY (INC. 2-13)
    CRANKCASE - ASSEMBLY (INC. 2-13)
  • 2
    0830-035 ...SEAL, DRIVESHAFT
    ...SEAL, DRIVESHAFT
  • 3
    0832-048 ...BEARING,DRIVESHAFT
    ...BEARING,DRIVESHAFT
  • 4
    0832-042 ...BEARING,BALL-S/R 40X80X18
    ...BEARING,BALL-S/R 40X80X18
  • 5
    0832-050 ...BEARING,CONRAD-6304
    ...BEARING,CONRAD-6304
  • 6
    0832-049 ...BEARING,CONRAD-6204
    ...BEARING,CONRAD-6204
  • 7
    0832-055 ...BEARING - ASSEMBLY (INC. 8)
    ...BEARING - ASSEMBLY (INC. 8)
  • 8
    0832-057 ......BEARING
    ......BEARING
  • 9
    0801-002 ...PLUG, ENGINE CASE
    ...PLUG, ENGINE CASE
  • 10
    0822-052 ...SEAL, COUNTERSHAFT - RIGHT
    ...SEAL, COUNTERSHAFT - RIGHT
  • 11
    0829-003 ...DOWEL, SPLIT, 11 X 16
    ...DOWEL, SPLIT, 11 X 16
  • 12
    0829-002 ...DOWEL, SPLIT, 13 X 18
    ...DOWEL, SPLIT, 13 X 18
  • 13
    0812-008 ...UNION, OIL FILTER
    ...UNION, OIL FILTER
  • 14
    0812-029 FILTER, OIL
    FILTER, OIL
  • 15
    0830-172 O-RING
    O-RING
  • 16
    0812-060 FITTING, OIL
    FITTING, OIL
  • 17
    8468-616 SCREW,MACH-TSPNH M6X1.0X16 CL8.8 BLACK
    SCREW,MACH-TSPNH M6X1.0X16 CL8.8 BLACK
  • 18
    0623-914 SCREW,SELF TAP THD LK-TSPNH 10-24X.375
    SCREW,SELF TAP THD LK-TSPNH 10-24X.375
  • 19
    0812-079 PLATE, OIL SUMP
    PLATE, OIL SUMP
  • 20
    0812-052 VALVE, OIL-RELIEF - ASSEMBLY
    VALVE, OIL-RELIEF - ASSEMBLY
  • 21
    0830-162 O-RING, OIL FILLER COVER
    O-RING, OIL FILLER COVER
  • 22
    0812-081 COVER, OIL FILLER
    COVER, OIL FILLER
  • 23
    0801-073 STICK, OIL LEVEL
    STICK, OIL LEVEL
  • 24
    0830-010 O-RING
    O-RING
  • 25
    0812-078 FITTING, OIL - THREADED
    FITTING, OIL - THREADED
  • 26
    0801-193 COVER, BREATHER
    COVER, BREATHER
  • 27
    8468-625 SCREW,MACH-TSPNH M6X1.0X25 CL8.8 BLACK
    SCREW,MACH-TSPNH M6X1.0X25 CL8.8 BLACK
  • 28
    0829-048 PIN, DOWEL
    PIN, DOWEL
  • 29
    0832-084 BEARING,6201, 12 X 32 X 10
    BEARING,6201, 12 X 32 X 10
  • 30
    0831-086 CIRCLIP
    CIRCLIP
  • 31
    0830-191 GASKET, BREATHER
    GASKET, BREATHER
  • 32
    8412-860 SCREW,CAP-HFH M8X1.25X60 CL8.8 RIE SILVER
    SCREW,CAP-HFH M8X1.25X60 CL8.8 RIE SILVER
  • 33
    8412-830 SCREW,CAP-HFH M8X1.25X30 CL8.8 RIE SILVER
    SCREW,CAP-HFH M8X1.25X30 CL8.8 RIE SILVER
  • 34
    8468-640 SCREW,MACH-TSPNH M6X1.0X40 CL8.8 BLACK
    SCREW,MACH-TSPNH M6X1.0X40 CL8.8 BLACK
  • 35
    8468-660 SCREW,MACH-TSPNH M6X1.0X60 CL8.8 BLACK
    SCREW,MACH-TSPNH M6X1.0X60 CL8.8 BLACK
  • 36
    8468-630 SCREW,MACH-TSPNH M6X1.0X30 CL8.8 BLACK
    SCREW,MACH-TSPNH M6X1.0X30 CL8.8 BLACK
  • 37
    8412-875 SCREW,CAP-HFH M8X1.25X75 CL8.8 RIE SILVER
    SCREW,CAP-HFH M8X1.25X75 CL8.8 RIE SILVER
  • 38
    8412-850 SCREW,CAP-HFH M8X1.25X50 CL8.8 RIE SILVER
    SCREW,CAP-HFH M8X1.25X50 CL8.8 RIE SILVER
  • 39
    0818-103 PLUG, CYLINDER
    PLUG, CYLINDER
