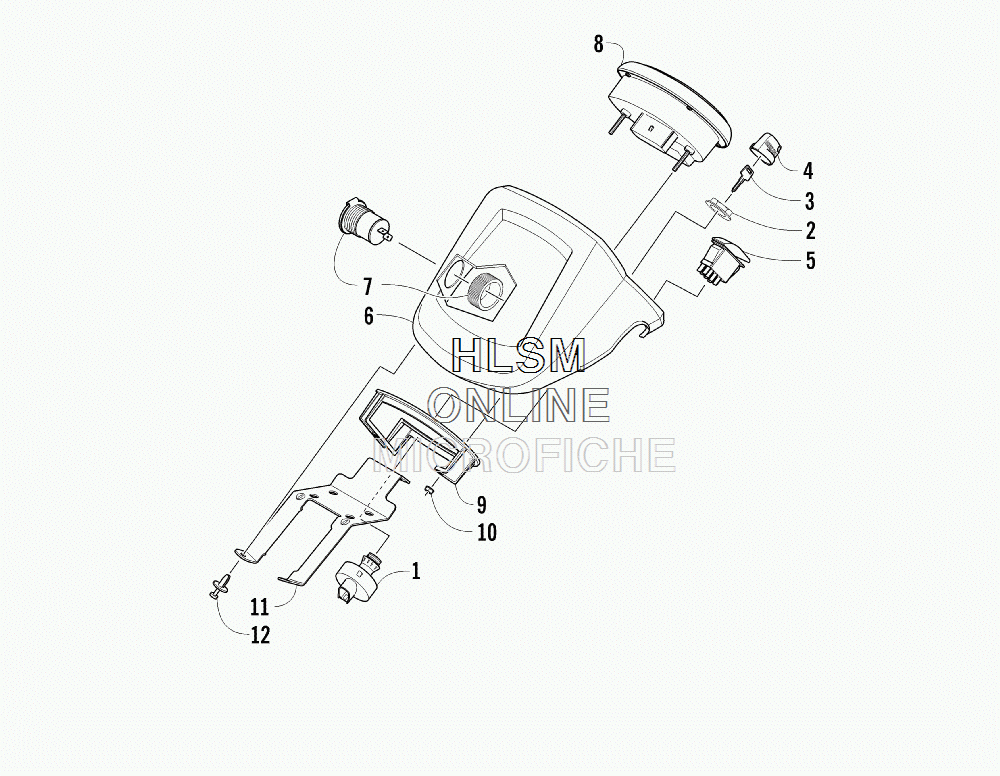

INSTRUMENT POD ASSEMBLY для Arctic Cat TRV 500 Core 4x4 [A2013TCO1POSS] (INTERATIONAL) - 2013 года выпуска

  • №
    Артикул
    Название
  • 1
    0430-090 SWITCH, IGNITION - ASSEMBLY (INC. 2-4)
    SWITCH, IGNITION - ASSEMBLY (INC. 2-4)
  • 2
    0430-050 ...NUT, RETAINING
    ...NUT, RETAINING
  • 3
    0430-042 ...KEY, IGNITION - (Y SERIES - LEFT-SIDE CUT)
    ...KEY, IGNITION - (Y SERIES - LEFT-SIDE CUT)
  • 3
    0430-043 ...KEY, IGNITION - (Z SERIES - RIGHT-SIDE CUT)
    ...KEY, IGNITION - (Z SERIES - RIGHT-SIDE CUT)
  • 4
    0430-054 ...COVER, KEY
    ...COVER, KEY
  • 5
    0409-121 SWITCH, HANDWARMER
    SWITCH, HANDWARMER
  • 6
    0505-584 POD, INSTRUMENT - BLACK
    POD, INSTRUMENT - BLACK
  • 7
    0641-897 OUTLET, ACCESSORY - 12V
    OUTLET, ACCESSORY - 12V
  • 8
    0520-198 GAUGE, LCD
    GAUGE, LCD
  • 9
    0420-065 BRACKET, RETAINING
    BRACKET, RETAINING
  • 10
    0423-493 NUT W/WASHER
    NUT W/WASHER
  • 11
    2506-470 BRACKET, MOUNTING - INSTRUMENT POD
    BRACKET, MOUNTING - INSTRUMENT POD
  • 12
    0423-535 RIVET, REINSTALLABLE
    RIVET, REINSTALLABLE
