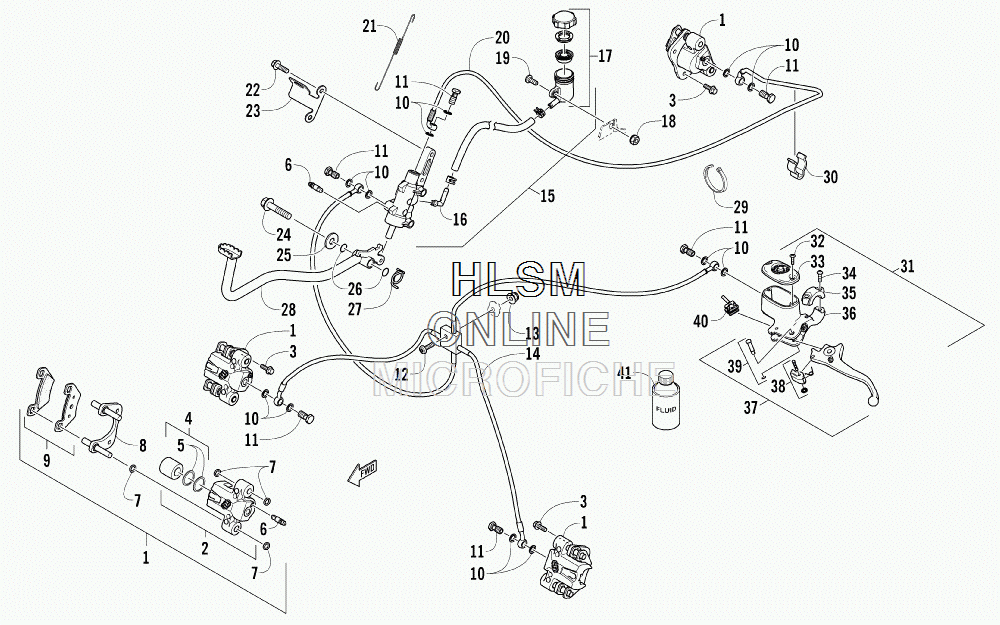

HYDRAULIC BRAKE ASSEMBLY для Arctic Cat TRV 500 Core 4x4 [A2013TCO1POSS] (INTERATIONAL) - 2013 года выпуска

  • №
    Артикул
    Название
  • 1
    1436-422 CALIPER, BRAKE - RIGHT FRONT (INC. 2-9)
    CALIPER, BRAKE - RIGHT FRONT (INC. 2-9)
  • 1
    1436-423 CALIPER, BRAKE - LEFT FRONT (INC. 2-9)
    CALIPER, BRAKE - LEFT FRONT (INC. 2-9)
  • 1
    1436-423 CALIPER, BRAKE - REAR (INC. 2-9)
    CALIPER, BRAKE - REAR (INC. 2-9)
  • 2
    1436-160 ...HOUSING, CALIPER - ASSEMBLY - RIGHT FRONT (INC. 3-6)
    ...HOUSING, CALIPER - ASSEMBLY - RIGHT FRONT (INC. 3-6)
  • 2
    1436-161 ...HOUSING, CALIPER - ASSEMBLY - LEFT FRONT (INC. 3-6)
    ...HOUSING, CALIPER - ASSEMBLY - LEFT FRONT (INC. 3-6)
  • 2
    1436-161 ...HOUSING, CALIPER - ASSEMBLY - REAR (INC. 3-6)
    ...HOUSING, CALIPER - ASSEMBLY - REAR (INC. 3-6)
  • 3
    8408-821 ......SCREW, CAP
    ......SCREW, CAP
  • 4
    0502-606 ......PISTON/SEAL SET (INC. 5)
    ......PISTON/SEAL SET (INC. 5)
  • 5
    0502-607 .........SEAL SET
    .........SEAL SET
  • 6
    0502-609 ......VALVE, BLEED
    ......VALVE, BLEED
  • 7
    0502-608 ...O-RING, GUIDE - SET
    ...O-RING, GUIDE - SET
  • 8
    0502-605 ...BRACKET ASSEMBLY
    ...BRACKET ASSEMBLY
  • 9
    1502-694 ...PAD, BRAKE - SET
    ...PAD, BRAKE - SET
  • 10
    0423-178 WASHER, CRUSH
    WASHER, CRUSH
  • 11
    0423-413 BOLT, BANJO-FITTING
    BOLT, BANJO-FITTING
  • 12
    8476-625 SCREW, MACHINE
    SCREW, MACHINE
  • 13
    8427-602 NUT, LOCK
    NUT, LOCK
  • 14
    1502-015 HOSE, BRAKELINE - ASSEMBLY
    HOSE, BRAKELINE - ASSEMBLY
  • 15
    1502-577 BRAKE ASSEMBLY (INC. 16-17)
    BRAKE ASSEMBLY (INC. 16-17)
  • 16
    1502-296 ...ADAPTER, HOSE
    ...ADAPTER, HOSE
  • 17
    1502-578 ...RESERVOIR, BRAKE W/CLAMP
    ...RESERVOIR, BRAKE W/CLAMP
  • 18
    0623-038 NUT W/WASHER
    NUT W/WASHER
  • 19
    8476-616 SCREW, MACHINE
    SCREW, MACHINE
  • 20
    1502-591 HOSE, BRAKELINE
    HOSE, BRAKELINE
  • 21
    0502-785 SPRING, BRAKE SWITCH
    SPRING, BRAKE SWITCH
  • 22
    8408-625 SCREW, CAP
    SCREW, CAP
  • 23
    0502-840 BRACKET, SWITCH
    BRACKET, SWITCH
  • 24
    8408-816 SCREW, CAP
    SCREW, CAP
  • 25
    8050-252 WASHER
    WASHER
  • 26
    1602-213 O-RING
    O-RING
  • 27
    0502-807 SPRING, BRAKE LEVER
    SPRING, BRAKE LEVER
  • 28
    1502-063 LEVER, BRAKE
    LEVER, BRAKE
  • 29
    0123-788 TIE, CABLE - 8 IN.
    TIE, CABLE - 8 IN.
  • 30
    1502-115 CLIP, BRAKELINE HOSE
    CLIP, BRAKELINE HOSE
  • 31
    1502-902 BRAKE ASSEMBLY (INC. 32-40)
    BRAKE ASSEMBLY (INC. 32-40)
  • 32
    0502-566 ...SCREW, MACHINE - KIT
    ...SCREW, MACHINE - KIT
  • 33
    0502-868 ...COVER, RESERVOIR
    ...COVER, RESERVOIR
  • 34
    0502-568 ...SCREW, MACHINE - KIT
    ...SCREW, MACHINE - KIT
  • 35
    0502-869 ...CLAMP, MASTER CYLINDER
    ...CLAMP, MASTER CYLINDER
  • 36
    0502-704 ...MASTER CYLINDER ASSEMBLY
    ...MASTER CYLINDER ASSEMBLY
  • 37
    1502-904 ...LEVER ASSEMBLY - KIT (INC. 38-39)
    ...LEVER ASSEMBLY - KIT (INC. 38-39)
  • 38
    1502-905 ......LOCK, BRAKE LEVER - KIT
    ......LOCK, BRAKE LEVER - KIT
  • 39
    0502-580 ......LEVER PIN - KIT
    ......LEVER PIN - KIT
  • 40
    0502-564 ...SWITCH, BRAKE
    ...SWITCH, BRAKE
  • 41
    5639-848 FLUID, BRAKE - 12 OZ
    FLUID, BRAKE - 12 OZ
