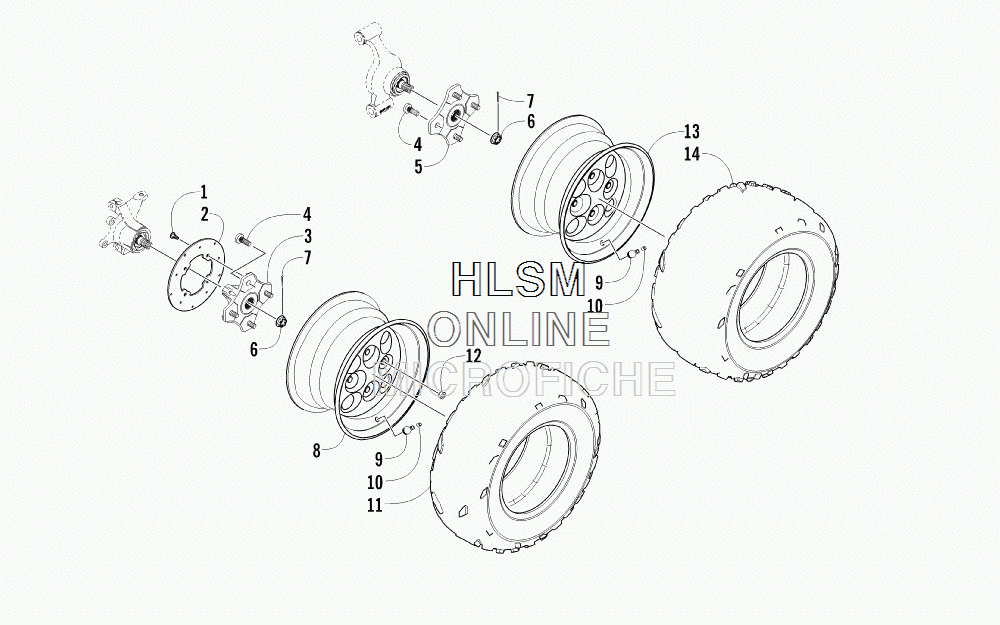

WHEEL AND TIRE ASSEMBLY для Arctic Cat TRV 500 Core 4x4 [A2013TBK4CUSR] - 2013 года выпуска
-
№АртикулНазвание
-
10423-557 SCREW, SHOULDERSCREW, SHOULDER
-
21436-808 DISC, BRAKEDISC, BRAKE
-
31502-462 HUB, WHEEL - FRONT (INC. 4)HUB, WHEEL - FRONT (INC. 4)
-
40402-974 ...STUD...STUD
-
51502-462 HUB, WHEEL - REAR - RIGHT (INC. 4)HUB, WHEEL - REAR - RIGHT (INC. 4)
-
51502-464 HUB, WHEEL - REAR - LEFT (INC. 4)HUB, WHEEL - REAR - LEFT (INC. 4)
-
60423-607 NUT, CASTLENUT, CASTLE
-
70423-407 PIN, COTTERPIN, COTTER
-
81402-776 WHEEL - FRONT - PLATINUMWHEEL - FRONT - PLATINUM
-
90402-064 STEM, VALVE (INC. 10)STEM, VALVE (INC. 10)
-
100402-140 ...CAP, VALVE STEM...CAP, VALVE STEM
-
112402-096 TIRE - FRONTTIRE - FRONT
-
120423-408 NUT, LUGNUT, LUG
-
131402-777 WHEEL - REAR - PLATINUMWHEEL - REAR - PLATINUM
-
142402-097 TIRE - REARTIRE - REAR
