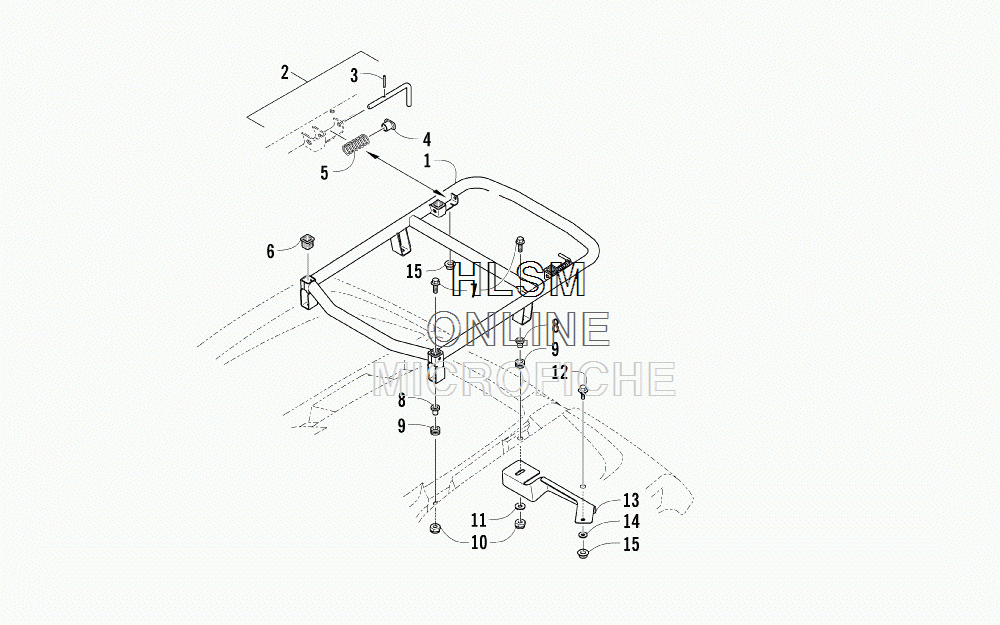

REAR RACK ASSEMBLY для Arctic Cat TRV 500 Core 4x4 [A2013TBK4CUSR] - 2013 года выпуска
-
№АртикулНазвание
-
12506-221 BASE, MRP - ASSEMBLY (INC. 2-6)BASE, MRP - ASSEMBLY (INC. 2-6)
-
20541-504 ...PIN - ASSEMBLY (INC. 3-5)...PIN - ASSEMBLY (INC. 3-5)
-
30423-635 ......PIN, ROLL......PIN, ROLL
-
40423-677 ......BUSHING, FLANGED......BUSHING, FLANGED
-
50423-636 ......SPRING......SPRING
-
60441-592 ...BUSHING...BUSHING
-
78410-835 SCREW, CAPSCREW, CAP
-
80423-669 SPACERSPACER
-
90423-465 GROMMETGROMMET
-
108432-802 NUT, LOCKNUT, LOCK
-
110423-087 WASHERWASHER
-
120423-654 SCREW, SHOULDERSCREW, SHOULDER
-
132506-092 BRACKET, REAR FENDER - RIGHTBRACKET, REAR FENDER - RIGHT
-
132506-093 BRACKET, REAR FENDER - LEFTBRACKET, REAR FENDER - LEFT
-
148050-222 WASHERWASHER
-
158427-602 NUT, LOCKNUT, LOCK
