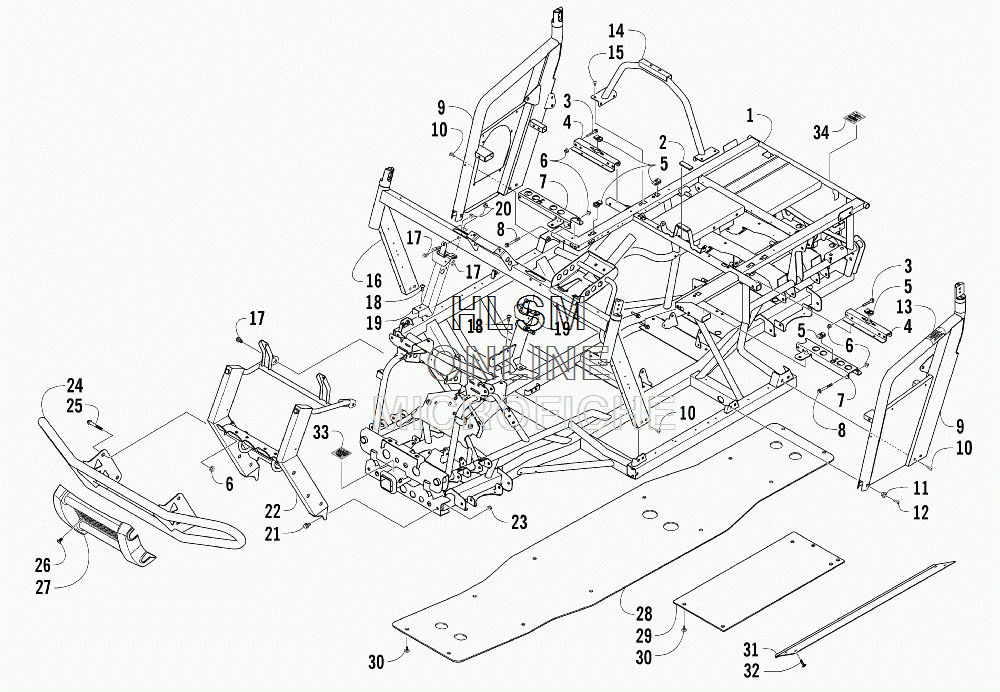

FRAME AND RELATED PARTS для Arctic Cat Prowler XTZ [U2013P4W1PUSU] - 2013 года выпуска`
-
№АртикулНазвание
-
14506-616 FRAME, MAIN (INC. 2)FRAME, MAIN (INC. 2)
-
20406-879 ...BUMPER, SEAT...BUMPER, SEAT
-
38408-850 SCREW, CAPSCREW, CAP
-
41506-842 BRACKET, SEAT SUPPORT - REARBRACKET, SEAT SUPPORT - REAR
-
50423-577 CLIP, U-NUTCLIP, U-NUT
-
68427-802 NUT, LOCKNUT, LOCK
-
72516-644 BRACKET, SEAT SUPPORT - FRONT - RIGHTBRACKET, SEAT SUPPORT - FRONT - RIGHT
-
72516-645 BRACKET, SEAT SUPPORT - FRONT - LEFTBRACKET, SEAT SUPPORT - FRONT - LEFT
-
88408-870 SCREW, CAPSCREW, CAP
-
95506-186 SUPPORT, OVERHEAD - RIGHTSUPPORT, OVERHEAD - RIGHT
-
95506-187 SUPPORT, OVERHEAD - LEFTSUPPORT, OVERHEAD - LEFT
-
100423-817 SCREW, MACHINESCREW, MACHINE
-
111423-051 SPACERSPACER
-
120423-886 SCREW, MACHINESCREW, MACHINE
-
132411-522 DECAL, WARNING - ROPSDECAL, WARNING - ROPS
-
142506-638 SUPPORT, ROPSSUPPORT, ROPS
-
158476-616 SCREW, MACHINESCREW, MACHINE
-
164506-869 SUPPORT, STEERINGSUPPORT, STEERING
-
178408-820 SCREW, CAPSCREW, CAP
-
188476-820 SCREW, MACHINESCREW, MACHINE
-
190505-688 BRACKET, STEERING SUPPORT - RIGHTBRACKET, STEERING SUPPORT - RIGHT
-
191502-930 BRACKET, STEERING SUPPORT - LEFTBRACKET, STEERING SUPPORT - LEFT
-
208424-802 NUTNUT
-
218409-020 SCREW, CAPSCREW, CAP
-
222516-556 BRACKET, MOUNTING - BUMPERBRACKET, MOUNTING - BUMPER
-
238427-002 NUT, LOCKNUT, LOCK
-
242506-779 BUMPERBUMPER
-
258408-860 SCREW, CAPSCREW, CAP
-
268477-616 SCREW, MACHINESCREW, MACHINE
-
272406-713 FASCIA, BUMPER - FRONTFASCIA, BUMPER - FRONT
-
282416-076 PLATE, SKID - CENTERPLATE, SKID - CENTER
-
291406-721 PANEL, BELLY - SIDEPANEL, BELLY - SIDE
-
300423-545 SCREW, SHOULDERSCREW, SHOULDER
-
312506-612 PLATE, SKID - SIDEPLATE, SKID - SIDE
-
320423-849 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
331411-122 DECAL, WARNING - TOWING - FRONTDECAL, WARNING - TOWING - FRONT
-
341411-123 DECAL, WARNING - TOWING - REARDECAL, WARNING - TOWING - REAR
