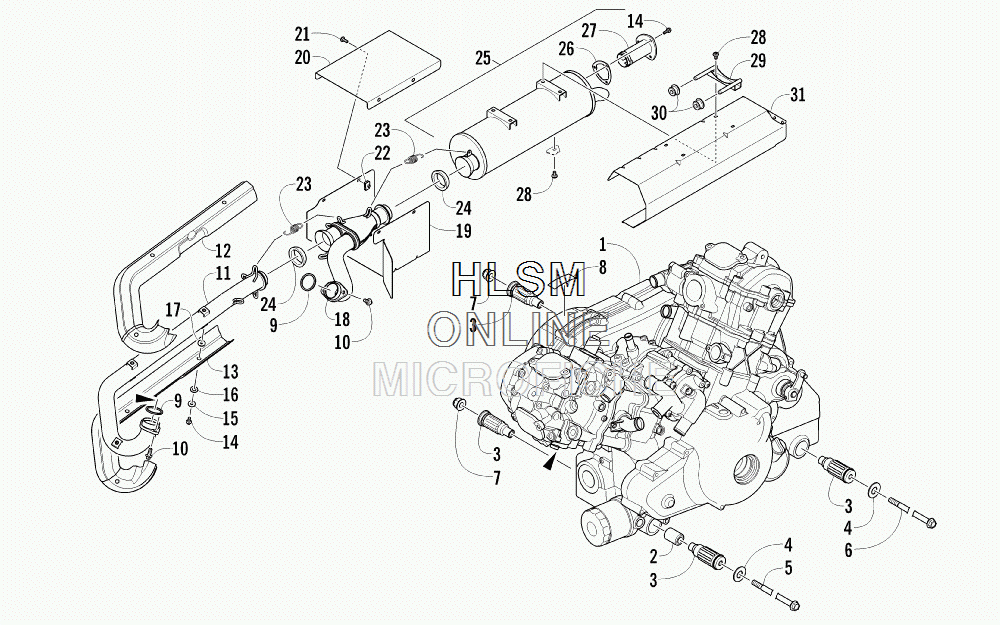

ENGINE AND EXHAUST для Arctic Cat Prowler XTZ [U2013P4W1PUSU] - 2013 года выпуска

  • №
    Артикул
    Название
  • 1
    0800-095 ENGINE, A950GH2 (INC. 2-3)
    ENGINE, A950GH2 (INC. 2-3)
  • 2
    0801-128 ...SPACER, ENGINE MOUNT
    ...SPACER, ENGINE MOUNT
  • 3
    0801-091 ...MOUNT, ENGINE
    ...MOUNT, ENGINE
  • 4
    0423-426 WASHER
    WASHER
  • 5
    0423-734 SCREW, CAP
    SCREW, CAP
  • 6
    0423-451 SCREW, CAP
    SCREW, CAP
  • 7
    8428-002 NUT, LOCK
    NUT, LOCK
  • 8
    0411-426 DECAL, WARNING - CLUTCH COVER
    DECAL, WARNING - CLUTCH COVER
  • 9
    0412-338 GASKET, EXHAUST PIPE
    GASKET, EXHAUST PIPE
  • 10
    8408-820 SCREW, CAP
    SCREW, CAP
  • 11
    0512-517 PIPE, EXHAUST - FRONT
    PIPE, EXHAUST - FRONT
  • 12
    0512-528 SHIELD, EXHAUST PIPE - UPPER
    SHIELD, EXHAUST PIPE - UPPER
  • 13
    0512-529 SHIELD, EXHAUST PIPE - LOWER
    SHIELD, EXHAUST PIPE - LOWER
  • 14
    8408-616 SCREW, CAP
    SCREW, CAP
  • 15
    8050-222 WASHER
    WASHER
  • 16
    0423-909 ISOLATOR
    ISOLATOR
  • 17
    0423-908 ISOLATOR
    ISOLATOR
  • 18
    0512-519 PIPE, EXHAUST - REAR
    PIPE, EXHAUST - REAR
  • 19
    0412-543 SHIELD, EXHAUST PIPE - REAR
    SHIELD, EXHAUST PIPE - REAR
  • 20
    0412-561 SHIELD, HEAT
    SHIELD, HEAT
  • 21
    8476-616 SCREW, MACHINE
    SCREW, MACHINE
  • 22
    0423-577 CLIP, U-NUT
    CLIP, U-NUT
  • 23
    0612-668 SPRING, EXTENSION
    SPRING, EXTENSION
  • 24
    0412-375 SEAL, EXHAUST PIPE
    SEAL, EXHAUST PIPE
  • 25
    0512-500 MUFFLER - ASSEMBLY (INC. 26-27 AND THREE NO. 14)
    MUFFLER - ASSEMBLY (INC. 26-27 AND THREE NO. 14)
  • 26
    0412-313 ...GASKET, SPARK ARRESTER
    ...GASKET, SPARK ARRESTER
  • 27
    0512-219 ...ARRESTER, SPARK - ASSEMBLY
    ...ARRESTER, SPARK - ASSEMBLY
  • 28
    8476-612 SCREW, MACHINE
    SCREW, MACHINE
  • 29
    0412-553 BRACKET, MUFFLER SUPPORT
    BRACKET, MUFFLER SUPPORT
  • 30
    0412-544 BUSHING
    BUSHING
  • 31
    0412-551 COVER, MUFFLER
    COVER, MUFFLER
