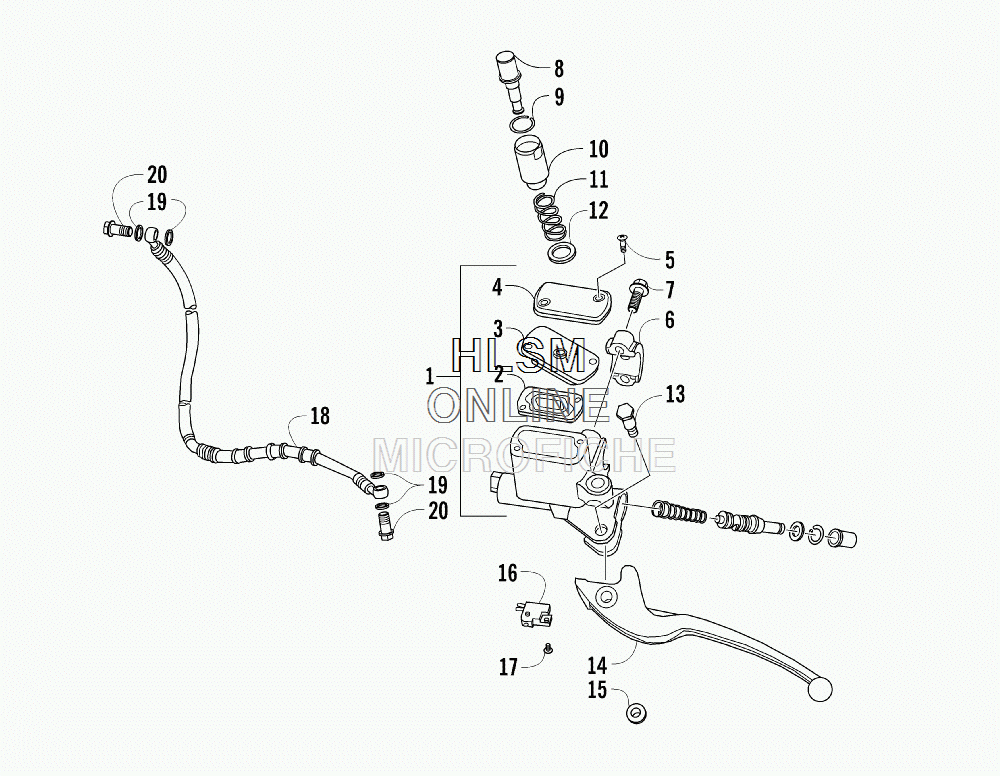

HYDRAULIC HAND BRAKE ASSEMBLY для Arctic Cat DVX 90 [A2013KSB2BUSR] - 2013 года выпуска

  • №
    Артикул
    Название
  • 1
    3305-982 BRAKE, MASTER CYLINDER - ASSEMBLY (INC. 2-4)
    BRAKE, MASTER CYLINDER - ASSEMBLY (INC. 2-4)
  • 2
    3305-309 ...DIAPHRAGM
    ...DIAPHRAGM
  • 3
    3306-225 ...PLATE, DIAPHRAGM
    ...PLATE, DIAPHRAGM
  • 4
    3303-174 ...COVER, MASTER CYLINDER
    ...COVER, MASTER CYLINDER
  • 5
    3303-318 SCREW, MACHINE
    SCREW, MACHINE
  • 6
    3305-983 CLAMP, HANDLEBAR
    CLAMP, HANDLEBAR
  • 7
    3305-297 SCREW, CAP
    SCREW, CAP
  • 8
    3305-993 BUTTON, PARK BRAKE
    BUTTON, PARK BRAKE
  • 9
    3305-992 CIRCLIP
    CIRCLIP
  • 10
    3305-991 HOUSING
    HOUSING
  • 11
    3305-990 SPRING
    SPRING
  • 12
    3305-989 WASHER
    WASHER
  • 13
    3303-254 SCREW, SHOULDER
    SCREW, SHOULDER
  • 14
    3306-207 LEVER
    LEVER
  • 15
    3304-654 NUT, LOCK
    NUT, LOCK
  • 16
    3303-141 SWITCH ASSEMBLY
    SWITCH ASSEMBLY
  • 17
    3303-321 SCREW, MACHINE
    SCREW, MACHINE
  • 18
    3305-278 HOSE, BRAKE - ASSEMBLY
    HOSE, BRAKE - ASSEMBLY
  • 19
    3303-284 WASHER, CRUSH
    WASHER, CRUSH
  • 20
    3303-257 BOLT, BANJO-FITTING
    BOLT, BANJO-FITTING
