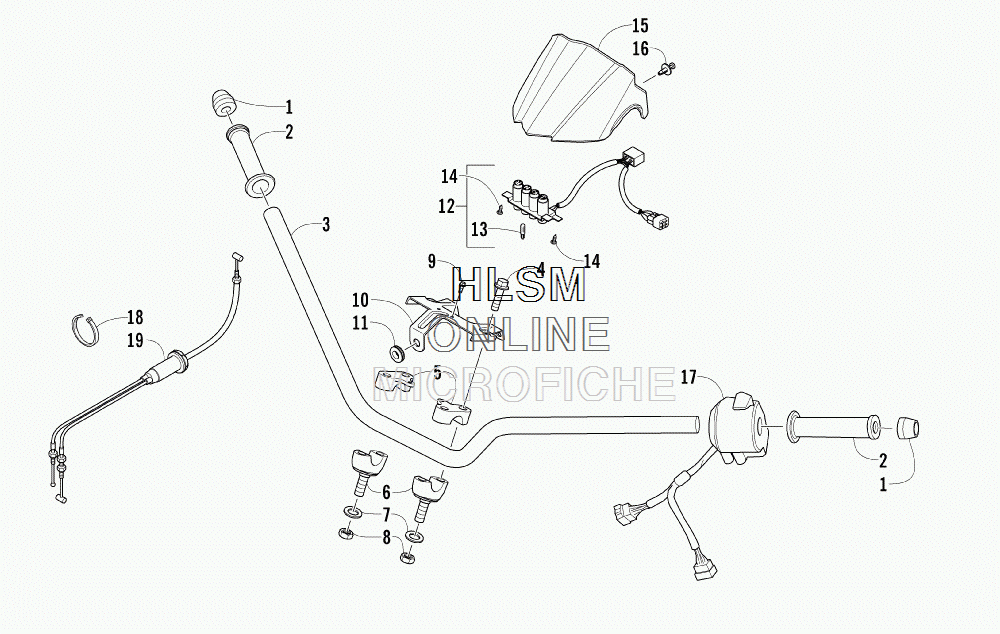

HANDLEBAR AND CONTROL ASSEMBLY для Arctic Cat DVX 90 [A2013KSB2BUSR] - 2013 года выпуска

  • №
    Артикул
    Название
  • 1
    3303-196 END CAP, HANDLEBAR
    END CAP, HANDLEBAR
  • 2
    3305-905 GRIP, HANDLEBAR
    GRIP, HANDLEBAR
  • 3
    3303-434 HANDLEBAR
    HANDLEBAR
  • 4
    3303-398 SCREW, CAP
    SCREW, CAP
  • 5
    3303-197 CLAMP, HANDLEBAR - UPPER RIGHT
    CLAMP, HANDLEBAR - UPPER RIGHT
  • 5
    3303-198 CLAMP, HANDLEBAR - UPPER LEFT
    CLAMP, HANDLEBAR - UPPER LEFT
  • 6
    3303-199 CLAMP, HANDLEBAR - LOWER
    CLAMP, HANDLEBAR - LOWER
  • 7
    3304-136 WASHER
    WASHER
  • 8
    3306-219 NUT
    NUT
  • 9
    3304-553 SCREW, CAP
    SCREW, CAP
  • 10
    3305-575 BRACKET, HANDLEBAR COVER (INC. 11)
    BRACKET, HANDLEBAR COVER (INC. 11)
  • 11
    3303-239 ...GROMMET
    ...GROMMET
  • 12
    3305-833 PILOT LAMP - ASSEMBLY (INC. 13)
    PILOT LAMP - ASSEMBLY (INC. 13)
  • 13
    3304-284 ...BULB
    ...BULB
  • 14
    3304-650 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 15
    3303-436 COVER, HANDLEBAR - BLACK
    COVER, HANDLEBAR - BLACK
  • 16
    3303-592 CLIP, RETAINING
    CLIP, RETAINING
  • 17
    3305-516 SWITCH, HANDLEBAR - ASSEMBLY
    SWITCH, HANDLEBAR - ASSEMBLY
  • 18
    3303-289 TIE, CABLE
    TIE, CABLE
  • 19
    1502-096 CABLE, THROTTLE
    CABLE, THROTTLE
