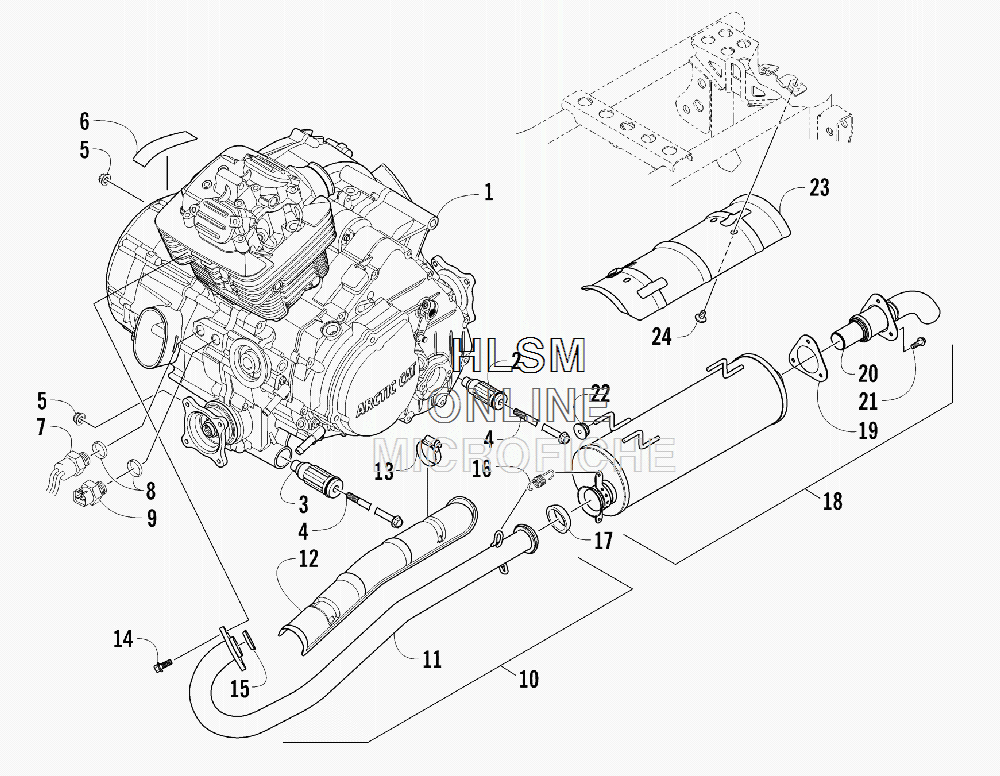

ENGINE AND EXHAUST для Arctic Cat 350 CR RED [A2012IRG4BUSR] - 2012 года выпуска`
-
№АртикулНазвание
-
13313-858 ENGINE (INC. 2-3)ENGINE (INC. 2-3)
-
20801-092 ...MOUNT, RUBBER - ENGINE...MOUNT, RUBBER - ENGINE
-
30801-144 ...MOUNT, RUBBER - ENGINE...MOUNT, RUBBER - ENGINE
-
43323-174 SCREW, CAPSCREW, CAP
-
53304-031 NUT, LOCKNUT, LOCK
-
60411-426 DECAL, WARNING - CLUTCH COVERDECAL, WARNING - CLUTCH COVER
-
73313-432 SWITCH, TEMPERATURE - FANSWITCH, TEMPERATURE - FAN
-
80830-180 O-RINGO-RING
-
93313-431 SWITCH, TEMPERATURE - LIGHTSWITCH, TEMPERATURE - LIGHT
-
103313-364 PIPE, EXHAUST - ASSEMBLY (INC. 11-13)PIPE, EXHAUST - ASSEMBLY (INC. 11-13)
-
113313-024 ...PIPE, EXHAUST (BLACK)...PIPE, EXHAUST (BLACK)
-
123313-025 ...SHIELD, EXHAUST...SHIELD, EXHAUST
-
130423-317 ...CLAMP...CLAMP
-
143304-565 SCREW, CAPSCREW, CAP
-
150412-007 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
160612-668 SPRING, EXTENSIONSPRING, EXTENSION
-
170612-188 SEAL, EXHAUSTSEAL, EXHAUST
-
183313-640 MUFFLER - ASSEMBLY (INC. 19-21)MUFFLER - ASSEMBLY (INC. 19-21)
-
193313-708 ...GASKET, SPARK ARRESTER...GASKET, SPARK ARRESTER
-
203313-707 ...ARRESTER, SPARK - ASSEMBLY...ARRESTER, SPARK - ASSEMBLY
-
213304-438 ...SCREW, CAP...SCREW, CAP
-
223313-264 BUSHINGBUSHING
-
233313-026 COVER, MUFFLERCOVER, MUFFLER
-
243313-711 SCREW, MACHINESCREW, MACHINE
