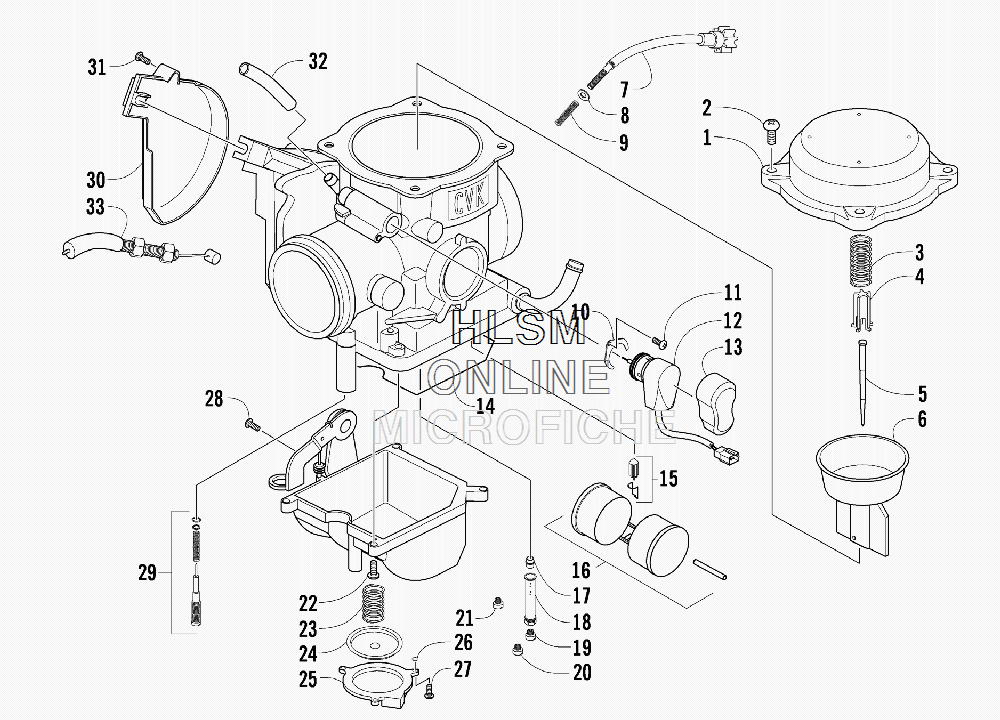

CARBURETOR для Arctic Cat 350 CR RED [A2012IRG4BUSR] - 2012 года выпуска`
-
№АртикулНазвание
-
-0470-737 COMPLETE CARBURETOR ASSEMBLYCOMPLETE CARBURETOR ASSEMBLY
-
15507-001 COVER, TOPCOVER, TOP
-
25507-002 SCREW, MACHINESCREW, MACHINE
-
35507-240 SPRINGSPRING
-
45507-005 SEAT, SPRINGSEAT, SPRING
-
55507-243 JET NEEDLEJET NEEDLE
-
65507-004 PISTON, VACUUMPISTON, VACUUM
-
75507-027 SCREW, IDLE ADJUSTSCREW, IDLE ADJUST
-
85507-028 WASHERWASHER
-
95507-029 SPRINGSPRING
-
105507-115 PLATEPLATE
-
115507-117 SCREW, MACHINESCREW, MACHINE
-
125507-180 CHOKE, ELECTRICCHOKE, ELECTRIC
-
135507-114 COVER, ELECTRIC CHOKECOVER, ELECTRIC CHOKE
-
145507-067 O-RING, FLOAT CHAMBERO-RING, FLOAT CHAMBER
-
155507-107 VALVE, FLOAT - SETVALVE, FLOAT - SET
-
165507-039 FLOAT SETFLOAT SET
-
175507-007 NEEDLE JETNEEDLE JET
-
185507-047 HOLDER, NEEDLE JETHOLDER, NEEDLE JET
-
193305-434 MAIN JET - 112MAIN JET - 112
-
195507-242 MAIN JET - 108 - OPTIONALMAIN JET - 108 - OPTIONAL
-
195507-166 MAIN JET - 110 - OPTIONALMAIN JET - 110 - OPTIONAL
-
195507-126 MAIN JET - 115 - OPTIONALMAIN JET - 115 - OPTIONAL
-
195507-241 MAIN JET - 118 - OPTIONALMAIN JET - 118 - OPTIONAL
-
205507-097 STARTER JET - 75STARTER JET - 75
-
215507-246 SLOW JET - 38SLOW JET - 38
-
225507-017 SCREW, MACHINESCREW, MACHINE
-
235507-032 SPRINGSPRING
-
245507-252 DIAPHRAGM ASSEMBLYDIAPHRAGM ASSEMBLY
-
255507-198 HOUSING, PUMPHOUSING, PUMP
-
265507-034 U-RINGU-RING
-
275507-035 SCREW, MACHINESCREW, MACHINE
-
285507-050 SCREW, DRAINSCREW, DRAIN
-
295507-111 SCREW, PILOT - SETSCREW, PILOT - SET
-
305507-036 COVERCOVER
-
315507-037 SCREW, MACHINESCREW, MACHINE
-
320410-070 HOSE, VENT - 25 FTHOSE, VENT - 25 FT
-
333323-227 CABLE, THROTTLECABLE, THROTTLE
