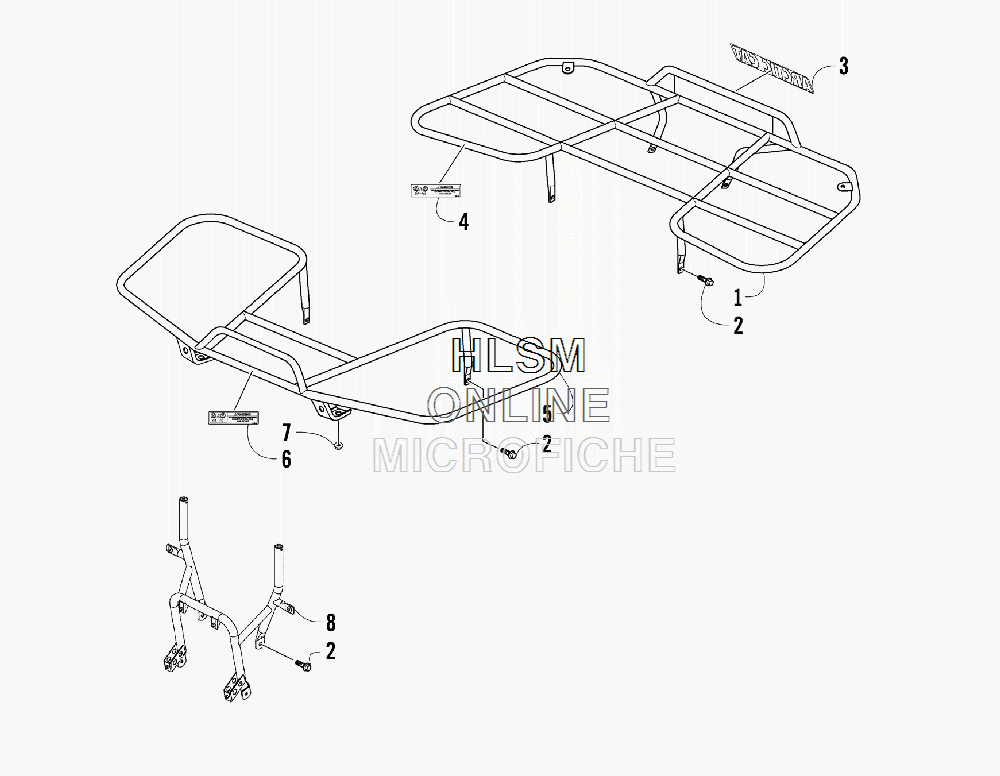

RACKS AND BUMPER ASSEMBLY для Arctic Cat 150 [A2012KYC2BUSP] - 2012 года выпуска
-
№АртикулНазвание
-
13305-706 RACK, REARRACK, REAR
-
23304-543 SCREW, CAPSCREW, CAP
-
30411-814 DECAL, "ARCTIC CAT"DECAL, "ARCTIC CAT"
-
41411-444 DECAL, WARNING - LOAD - REARDECAL, WARNING - LOAD - REAR
-
53305-707 RACK, FRONTRACK, FRONT
-
61411-201 DECAL, WARNING - LOAD - FRONTDECAL, WARNING - LOAD - FRONT
-
73304-668 NUTNUT
-
83305-708 BUMPERBUMPER
