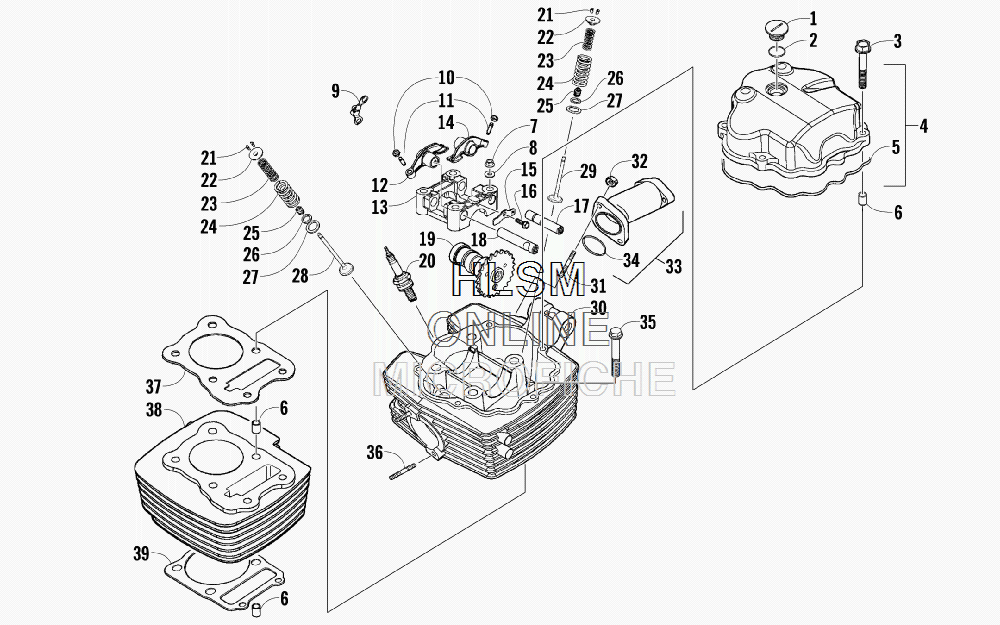

CYLINDER HEAD ASSEMBLY для Arctic Cat 150 [A2012KYC2BUSP] - 2012 года выпуска`
-
№АртикулНазвание
-
13304-012 CAP, INSPECTIONCAP, INSPECTION
-
23304-099 O-RINGO-RING
-
33303-611 SCREW, CAPSCREW, CAP
-
43304-914 COVER, CYLINDER HEAD (INC. 5)COVER, CYLINDER HEAD (INC. 5)
-
53304-915 ...GASKET...GASKET
-
63303-342 PIN, DOWELPIN, DOWEL
-
73303-332 NUTNUT
-
83304-048 WASHERWASHER
-
93304-923 PLATE, STOPPLATE, STOP
-
103304-942 NUTNUT
-
113304-941 SCREW, ADJUSTERSCREW, ADJUSTER
-
123304-926 ARM, ROCKER - EXHAUSTARM, ROCKER - EXHAUST
-
133304-921 RETAINER, CAMSHAFTRETAINER, CAMSHAFT
-
143304-925 ARM, ROCKER - INTAKEARM, ROCKER - INTAKE
-
153304-929 PLATE, RETAININGPLATE, RETAINING
-
163304-944 SCREW, CAPSCREW, CAP
-
173304-927 SHAFT, ROCKER ARM - INTAKESHAFT, ROCKER ARM - INTAKE
-
183304-928 SHAFT, ROCKER ARM - EXHAUSTSHAFT, ROCKER ARM - EXHAUST
-
193304-922 CAMSHAFTCAMSHAFT
-
200217-796 SPARK PLUG - D8EASPARK PLUG - D8EA
-
213304-940 COTTER, VALVECOTTER, VALVE
-
223304-937 RETAINER, VALVE SPRINGRETAINER, VALVE SPRING
-
233304-936 SPRING, VALVE - INNERSPRING, VALVE - INNER
-
243304-935 SPRING, VALVE - OUTERSPRING, VALVE - OUTER
-
253304-920 SEAL, VALVE STEMSEAL, VALVE STEM
-
263304-939 SEAT, VALVE SPRING - INNERSEAT, VALVE SPRING - INNER
-
273304-938 SEAT, VALVE SPRING - OUTERSEAT, VALVE SPRING - OUTER
-
283304-934 VALVE, EXHAUSTVALVE, EXHAUST
-
293304-933 VALVE, INTAKEVALVE, INTAKE
-
303305-741 HEAD, CYLINDERHEAD, CYLINDER
-
313304-114 BOLT, STUDBOLT, STUD
-
323304-124 NUTNUT
-
333304-916 PIPE, INTAKE (INC. 34)PIPE, INTAKE (INC. 34)
-
343304-097 ...O-RING...O-RING
-
353304-918 SCREW, CAPSCREW, CAP
-
363304-917 BOLT, STUDBOLT, STUD
-
373304-913 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
383304-910 CYLINDERCYLINDER
-
393304-911 GASKET, CYLINDERGASKET, CYLINDER
