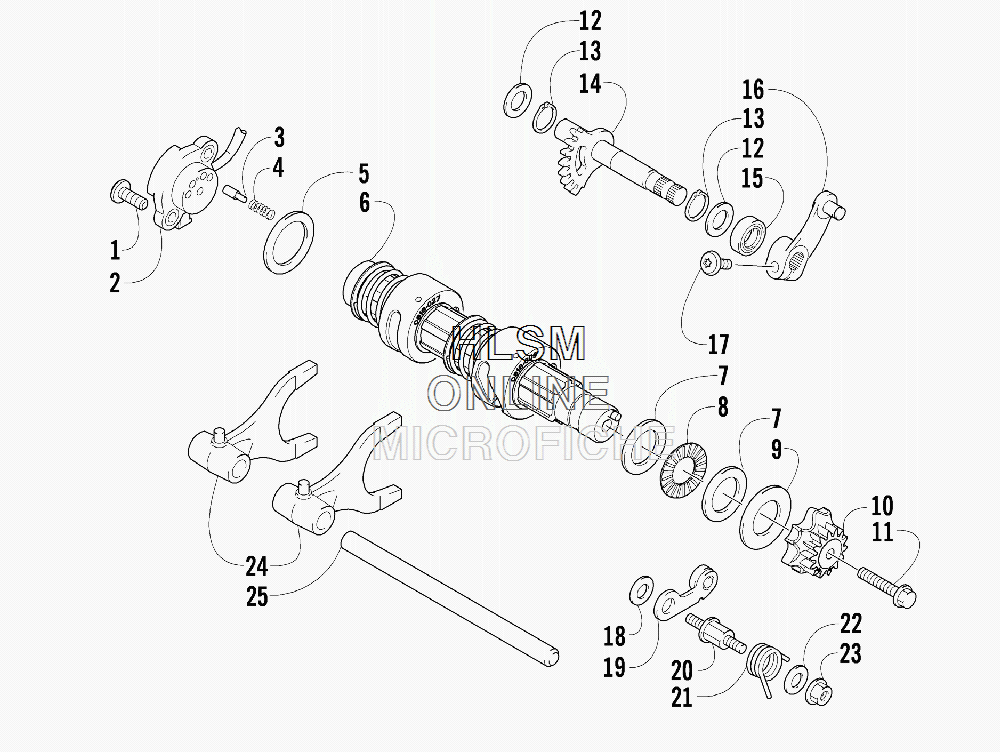

GEAR SHIFTING ASSEMBLY для Arctic Cat 700 TRV RED [A2011TBT4EUSR] - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    8470-520 SCREW, MACHINE
    SCREW, MACHINE
  • 2
    0409-090 SWITCH, GEAR POSITION
    SWITCH, GEAR POSITION
  • 3
    0818-013 CONTACT
    CONTACT
  • 4
    0818-017 SPRING
    SPRING
  • 5
    0828-040 WASHER
    WASHER
  • 6
    0818-046 SHAFT, GEAR SHIFT - ASSEMBLY
    SHAFT, GEAR SHIFT - ASSEMBLY
  • 7
    0828-095 WASHER
    WASHER
  • 8
    0832-052 BEARING, THRUST
    BEARING, THRUST
  • 9
    0828-037 WASHER, STEEL 20 X 28 X .5
    WASHER, STEEL 20 X 28 X .5
  • 10
    0818-089 PLATE, GEAR SHIFT CAM
    PLATE, GEAR SHIFT CAM
  • 11
    0826-006 SCREW, CAP
    SCREW, CAP
  • 12
    0828-036 WASHER, STEEL, 12 X 20 X .9
    WASHER, STEEL, 12 X 20 X .9
  • 13
    0831-010 RING, RETAINING
    RING, RETAINING
  • 14
    0818-007 SHAFT, SUB-GEAR SHIFT
    SHAFT, SUB-GEAR SHIFT
  • 15
    0830-044 SEAL, SUB-GEAR SHIFT SHAFT
    SEAL, SUB-GEAR SHIFT SHAFT
  • 16
    0818-014 ARM, SELECT
    ARM, SELECT
  • 17
    8468-620 SCREW, MACHINE
    SCREW, MACHINE
  • 18
    0828-038 WASHER, STEEL, 6 X 14 X .9
    WASHER, STEEL, 6 X 14 X .9
  • 19
    0818-002 STOPPER, CAM
    STOPPER, CAM
  • 20
    0818-004 SUPPORT, CAM STOPPER
    SUPPORT, CAM STOPPER
  • 21
    0818-090 SPRING
    SPRING
  • 22
    0828-035 WASHER, STEEL 6 X 16 X 2.5
    WASHER, STEEL 6 X 16 X 2.5
  • 23
    8424-602 NUT
    NUT
  • 24
    0818-072 FORK, SHIFT
    FORK, SHIFT
  • 25
    0818-006 SHAFT, SHIFT FORK
    SHAFT, SHIFT FORK
