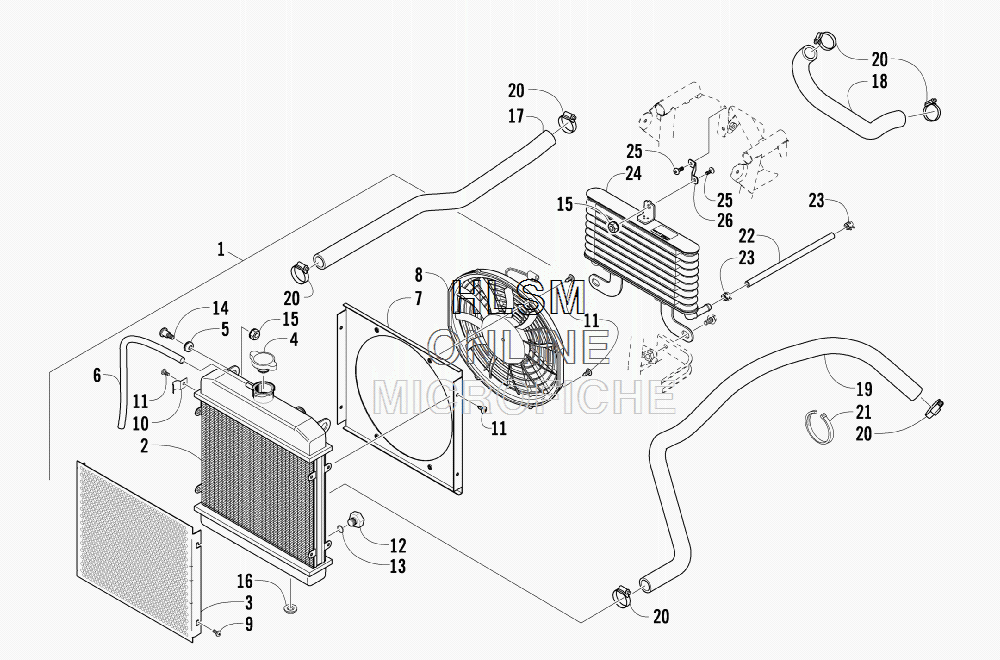

COOLING ASSEMBLY для Arctic Cat 700 TRV RED [A2011TBT4EUSR] - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    0413-256 RADIATOR ASSEMBLY (INC. 2-13)
    RADIATOR ASSEMBLY (INC. 2-13)
  • 2
    0413-205 ...RADIATOR
    ...RADIATOR
  • 3
    0413-007 ...SCREEN
    ...SCREEN
  • 4
    0413-255 ...CAP
    ...CAP
  • 5
    0423-030 ...GROMMET
    ...GROMMET
  • 6
    0610-016 ...HOSE - 25 FT
    ...HOSE - 25 FT
  • 6
    0610-015 ...HOSE - 100 FT
    ...HOSE - 100 FT
  • 7
    0413-203 ...SHROUD, FAN
    ...SHROUD, FAN
  • 8
    0413-123 ...FAN, COOLING
    ...FAN, COOLING
  • 9
    8475-512 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 10
    0423-351 ...CLAMP, WIRE
    ...CLAMP, WIRE
  • 11
    0623-378 ...SCREW, SELF-TAPPING
    ...SCREW, SELF-TAPPING
  • 12
    0413-195 ...PLUG, DRAIN
    ...PLUG, DRAIN
  • 13
    1602-213 ...O-RING
    ...O-RING
  • 14
    0423-484 SCREW, SHOULDER
    SCREW, SHOULDER
  • 15
    0623-038 NUT W/WASHER
    NUT W/WASHER
  • 16
    0423-028 BUSHING, STEM
    BUSHING, STEM
  • 17
    0410-002 HOSE, COOLANT - UPPER
    HOSE, COOLANT - UPPER
  • 18
    0410-022 HOSE, COOLANT - CROSSOVER
    HOSE, COOLANT - CROSSOVER
  • 19
    0410-229 HOSE, COOLANT - LOWER
    HOSE, COOLANT - LOWER
  • 20
    0423-496 CLAMP, HOSE
    CLAMP, HOSE
  • 21
    0623-751 TIE, CABLE - 11.75 IN.
    TIE, CABLE - 11.75 IN.
  • 22
    0410-127 HOSE, OIL COOLER
    HOSE, OIL COOLER
  • 23
    0423-632 CLAMP, HOSE
    CLAMP, HOSE
  • 24
    0413-211 COOLER, OIL
    COOLER, OIL
  • 25
    8476-612 SCREW, MACHINE
    SCREW, MACHINE
  • 26
    0513-022 BRACKET, MOUNTING - OIL COOLER - UPPER
    BRACKET, MOUNTING - OIL COOLER - UPPER
