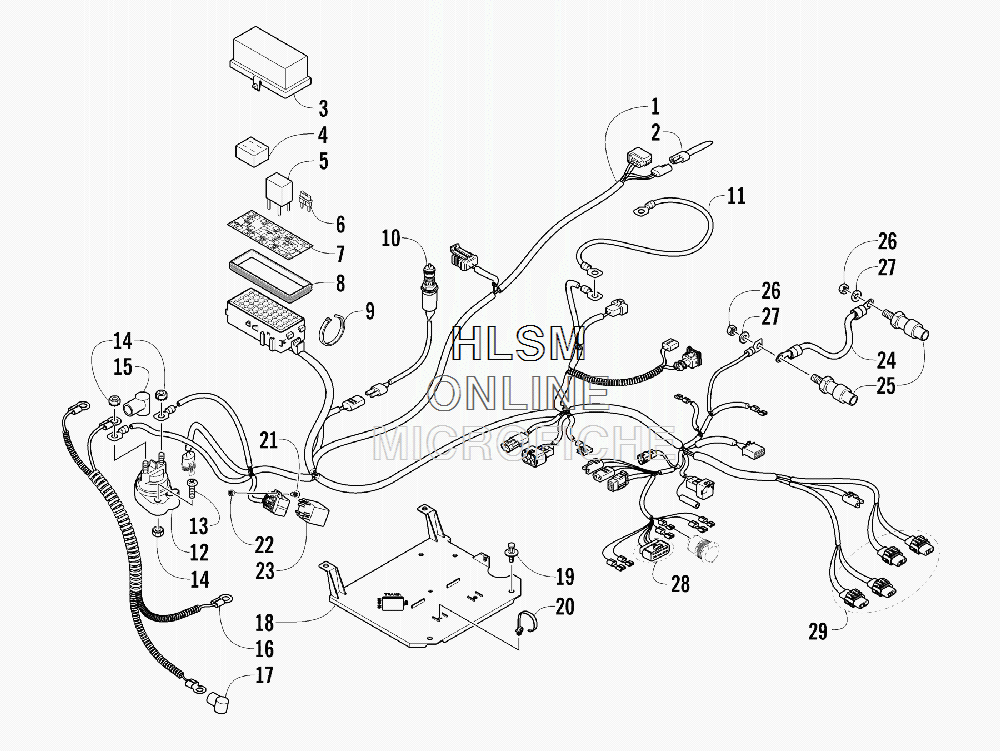

WIRING HARNESS ASSEMBLY для Arctic Cat 700 DIESEL GREEN [A2011ITBT4DUSG] - 2011 года выпуска
-
№АртикулНазвание
-
10486-347 HARNESS, MAIN (INC. 2-8)HARNESS, MAIN (INC. 2-8)
-
20486-164 ...TETHER, ACCESSORY CONNECTOR...TETHER, ACCESSORY CONNECTOR
-
30430-085 ...COVER, FUSE BLOCK...COVER, FUSE BLOCK
-
40430-037 ...HOLDER, FUSE...HOLDER, FUSE
-
50430-045 ...RELAY (4-PIN) - 20 AMP...RELAY (4-PIN) - 20 AMP
-
60430-032 ...FUSE - 10 AMP...FUSE - 10 AMP
-
60430-031 ...FUSE - 15 AMP...FUSE - 15 AMP
-
60430-030 ...FUSE - 30 AMP...FUSE - 30 AMP
-
72411-096 ...DECAL, FUSE BLOCK...DECAL, FUSE BLOCK
-
80430-086 ...SEAL...SEAL
-
90123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
90123-903 TIE, CABLE - 11.5 IN.TIE, CABLE - 11.5 IN.
-
100409-089 SWITCH, BRAKE - ASSEMBLYSWITCH, BRAKE - ASSEMBLY
-
110445-060 CABLE, BATTERY/GROUNDCABLE, BATTERY/GROUND
-
120445-058 SOLENOIDSOLENOID
-
138476-625 SCREW, MACHINESCREW, MACHINE
-
140623-038 NUT W/WASHERNUT W/WASHER
-
150645-327 BOOT, TERMINALBOOT, TERMINAL
-
160445-059 CABLE, BATTERY - ASSEMBLYCABLE, BATTERY - ASSEMBLY
-
170645-019 BOOT, TERMINALBOOT, TERMINAL
-
182406-388 TRAY, ELECTRICALTRAY, ELECTRICAL
-
190623-362 RIVET, REINSTALLABLERIVET, REINSTALLABLE
-
200423-075 TIE, CABLE - PUSH-MOUNTTIE, CABLE - PUSH-MOUNT
-
210423-371 SCREW, MACHINESCREW, MACHINE
-
228424-502 NUTNUT
-
233206-311 RELAY, GLOW PLUGRELAY, GLOW PLUG
-
243206-307 CABLE, GLOW PLUGCABLE, GLOW PLUG
-
253206-306 GLOW PLUGGLOW PLUG
-
263206-308 NUTNUT
-
273206-309 WASHERWASHER
-
281436-415 REPAIR KIT, CONNECTOR - LCD GAUGEREPAIR KIT, CONNECTOR - LCD GAUGE
-
291436-290 REPAIR KIT, CONNECTOR - HEADLIGHTREPAIR KIT, CONNECTOR - HEADLIGHT
