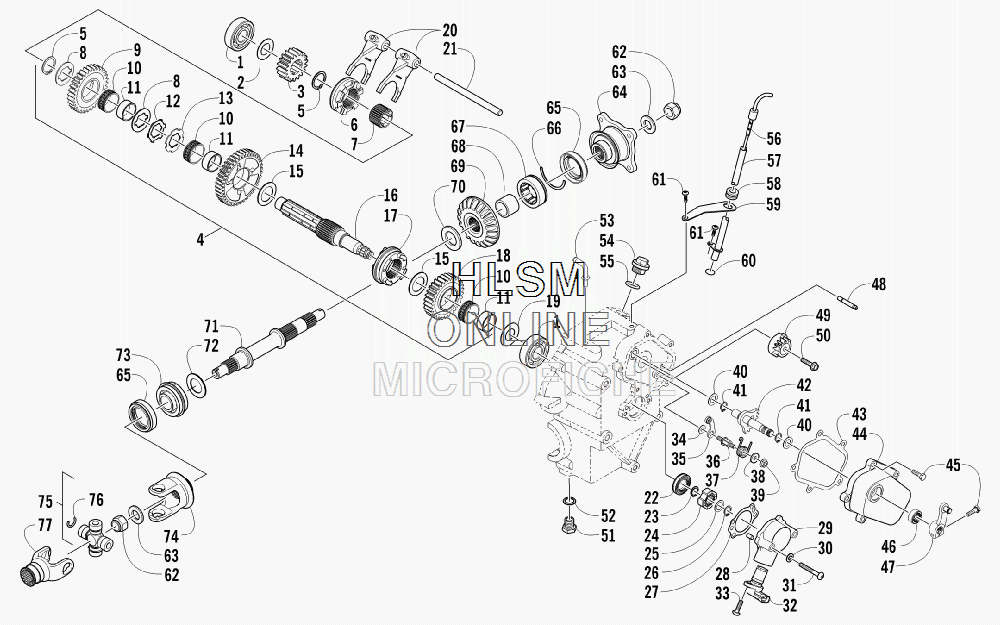

TRANSMISSION LEFT-SIDE ASSEMBLY для Arctic Cat 700 DIESEL GREEN [A2011ITBT4DUSG] - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    0832-050 BEARING
    BEARING
  • 2
    0828-010 WASHER, THRUST
    WASHER, THRUST
  • 3
    1402-558 GEAR, DRIVE - NO. 2 (18T)
    GEAR, DRIVE - NO. 2 (18T)
  • 4
    0822-091 COUNTERSHAFT ASSEMBLY (INC. 5-18)
    COUNTERSHAFT ASSEMBLY (INC. 5-18)
  • 5
    0831-011 ...RING, RETAINING
    ...RING, RETAINING
  • 6
    0822-014 ...GEAR SELECT, REVERSE
    ...GEAR SELECT, REVERSE
  • 7
    0822-045 ...SPACER, REVERSE DRIVEN GEAR
    ...SPACER, REVERSE DRIVEN GEAR
  • 8
    0828-008 ...WASHER
    ...WASHER
  • 9
    0822-013 ...GEAR, REVERSE DRIVEN
    ...GEAR, REVERSE DRIVEN
  • 10
    0832-011 ...BEARING
    ...BEARING
  • 11
    0822-005 ...BUSHING
    ...BUSHING
  • 12
    0828-015 ...WASHER, LOCK
    ...WASHER, LOCK
  • 13
    0828-014 ...WASHER, LOCK
    ...WASHER, LOCK
  • 14
    0822-004 ...GEAR, DRIVEN - LOW
    ...GEAR, DRIVEN - LOW
  • 15
    0822-046 ...WASHER
    ...WASHER
  • 16
    0822-003 ...COUNTERSHAFT
    ...COUNTERSHAFT
  • 17
    0822-007 ...GEAR SELECT, SLIDING
    ...GEAR SELECT, SLIDING
  • 18
    0822-006 ...GEAR, DRIVEN - HIGH
    ...GEAR, DRIVEN - HIGH
  • 19
    0828-011 WASHER
    WASHER
  • 20
    0818-072 FORK, SHIFT
    FORK, SHIFT
  • 21
    0818-006 SHAFT, SHIFT FORK
    SHAFT, SHIFT FORK
  • 22
    0822-052 SEAL, COUNTERSHAFT - RIGHT
    SEAL, COUNTERSHAFT - RIGHT
  • 23
    0831-040 RING, RETAINING
    RING, RETAINING
  • 24
    0822-050 TRIGGER, SPEEDOMETER SENSOR
    TRIGGER, SPEEDOMETER SENSOR
  • 25
    0828-069 WASHER, THRUST
    WASHER, THRUST
  • 26
    0831-039 RING, RETAINING
    RING, RETAINING
  • 27
    0830-129 GASKET, ODOMETER DRIVE
    GASKET, ODOMETER DRIVE
  • 28
    0829-023 PIN, DOWEL
    PIN, DOWEL
  • 29
    0822-049 HOUSING, SPEEDOMETER SENSOR
    HOUSING, SPEEDOMETER SENSOR
  • 30
    0830-107 GASKET
    GASKET
  • 31
    8468-645 SCREW, MACHINE
    SCREW, MACHINE
  • 32
    0824-042 SENSOR, SPEEDOMETER
    SENSOR, SPEEDOMETER
  • 33
    8468-620 SCREW, MACHINE
    SCREW, MACHINE
  • 34
    0828-038 WASHER
    WASHER
  • 35
    0818-002 STOPPER, CAM
    STOPPER, CAM
  • 36
    0818-004 SUPPORT, CAM STOPPER
    SUPPORT, CAM STOPPER
  • 37
    0818-090 SPRING
    SPRING
  • 38
    0828-035 WASHER
    WASHER
  • 39
    8424-602 NUT
    NUT
  • 40
    0828-036 WASHER
    WASHER
  • 41
    0831-010 RING, RETAINING
    RING, RETAINING
  • 42
    0818-007 SUB-SHAFT - GEAR SHIFT
    SUB-SHAFT - GEAR SHIFT
  • 43
    1402-557 GASKET, COVER - SELECTOR
    GASKET, COVER - SELECTOR
  • 44
    1502-009 COVER, SELECTOR
    COVER, SELECTOR
  • 45
    8405-620 SCREW, CAP
    SCREW, CAP
  • 46
    0830-044 SUB-SEAL - GEAR SHIFT
    SUB-SEAL - GEAR SHIFT
  • 47
    0818-014 ARM, SELECTOR
    ARM, SELECTOR
  • 48
    1402-556 STOP, SPRING - SELECTOR
    STOP, SPRING - SELECTOR
  • 49
    0818-005 PLATE, GEAR SHIFT CAM
    PLATE, GEAR SHIFT CAM
  • 50
    0826-006 SCREW, CAP
    SCREW, CAP
  • 51
    0812-006 PLUG, DRAIN - MAGNETIC
    PLUG, DRAIN - MAGNETIC
  • 52
    0830-017 GASKET, COMPRESSION
    GASKET, COMPRESSION
  • 53
    1402-102 FITTING, ELBOW
    FITTING, ELBOW
  • 54
    0402-333 PLUG, FILL (INC. 55)
    PLUG, FILL (INC. 55)
  • 55
    0423-154 ...O-RING
    ...O-RING
  • 56
    0470-689 LEVEL STICK, LUBRICANT
    LEVEL STICK, LUBRICANT
  • 57
    2506-388 TUBE, LEVEL STICK
    TUBE, LEVEL STICK
  • 58
    0423-465 GROMMET
    GROMMET
  • 59
    2506-445 BRACKET, LEVEL STICK TUBE
    BRACKET, LEVEL STICK TUBE
  • 60
    0423-715 O-RING
    O-RING
  • 61
    0423-396 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 62
    0827-013 NUT
    NUT
  • 63
    0828-020 WASHER
    WASHER
  • 64
    0819-005 FLANGE, OUTPUT JOINT - ASSEMBLY
    FLANGE, OUTPUT JOINT - ASSEMBLY
  • 65
    0830-043 SEAL, OIL
    SEAL, OIL
  • 66
    0819-011 RING, DRIVEN BEARING
    RING, DRIVEN BEARING
  • 67
    0832-016 BEARING
    BEARING
  • 68
    1402-555 SLEEVE
    SLEEVE
  • 69
    1402-867 GEAR, SECONDARY DRIVEN
    GEAR, SECONDARY DRIVEN
  • 70
    1402-864 SPACER
    SPACER
  • 71
    1402-554 SHAFT, OUTPUT - SECONDARY
    SHAFT, OUTPUT - SECONDARY
  • 72
    0828-021 SHIM, 25 X 34 X 0.25 MM
    SHIM, 25 X 34 X 0.25 MM
  • 72
    0828-022 SHIM, 25 X 34 X 0.30 MM
    SHIM, 25 X 34 X 0.30 MM
  • 72
    0828-023 SHIM, 25 X 34 X 0.70 MM
    SHIM, 25 X 34 X 0.70 MM
  • 72
    0828-024 SHIM, 25 X 34 X 0.90 MM
    SHIM, 25 X 34 X 0.90 MM
  • 72
    0828-025 SHIM, 25 X 34 X 0.95 MM
    SHIM, 25 X 34 X 0.95 MM
  • 72
    0828-026 SHIM, 25 X 34 X 1.00 MM
    SHIM, 25 X 34 X 1.00 MM
  • 72
    0828-027 SHIM, 25 X 34 X 1.05 MM
    SHIM, 25 X 34 X 1.05 MM
  • 72
    0828-028 SHIM, 25 X 34 X 1.10 MM
    SHIM, 25 X 34 X 1.10 MM
  • 72
    0828-029 SHIM, 25 X 34 X 1.15 MM
    SHIM, 25 X 34 X 1.15 MM
  • 73
    0832-017 BEARING, DRIVEN SHAFT
    BEARING, DRIVEN SHAFT
  • 74
    0819-061 YOKE, DRIVE OUTPUT - FRONT ASSEMBLY
    YOKE, DRIVE OUTPUT - FRONT ASSEMBLY
  • 75
    1402-164 JOINT, UNIVERSAL - SET (INC. 76)
    JOINT, UNIVERSAL - SET (INC. 76)
  • 76
    0423-450 ...RING, RETAINING
    ...RING, RETAINING
  • 77
    0819-063 YOKE, PROPELLER SHAFT
    YOKE, PROPELLER SHAFT
