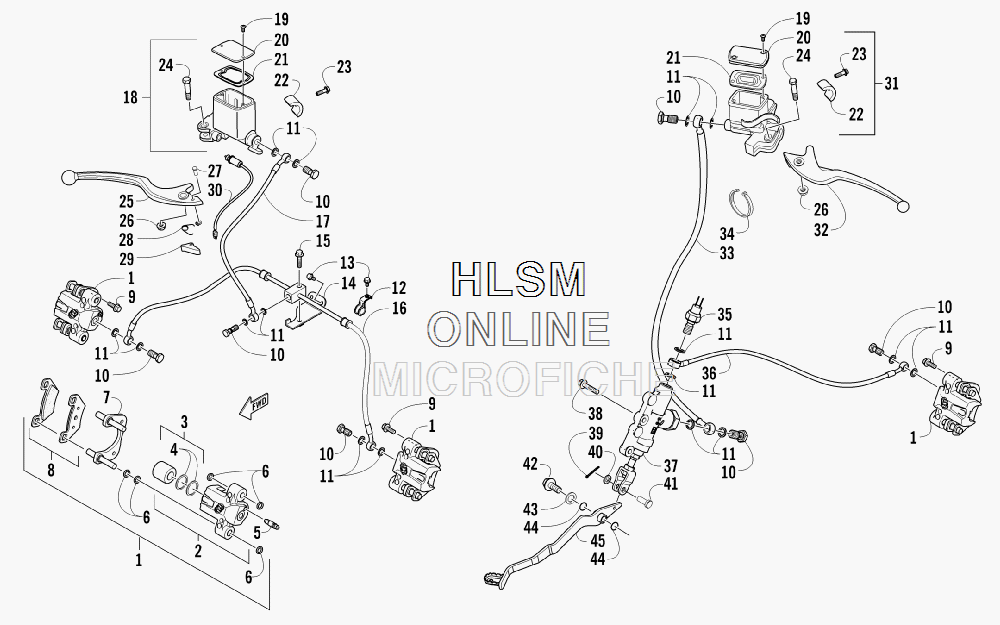

HYDRAULIC BRAKE ASSEMBLY для Arctic Cat 450 XC CAT GREEN BLACK [A2011KCK4CUSZ] - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    3323-230 CALIPER, BRAKE - RIGHT FRONT (INC. 2-8)
    CALIPER, BRAKE - RIGHT FRONT (INC. 2-8)
  • 1
    3323-231 CALIPER, BRAKE - LEFT FRONT (INC. 2-8)
    CALIPER, BRAKE - LEFT FRONT (INC. 2-8)
  • 1
    3323-230 CALIPER, BRAKE - REAR (INC. 2-8)
    CALIPER, BRAKE - REAR (INC. 2-8)
  • 2
    1436-160 ...HOUSING, CALIPER - ASSEMBLY - RIGHT FRONT (INC. 3-5)
    ...HOUSING, CALIPER - ASSEMBLY - RIGHT FRONT (INC. 3-5)
  • 2
    1436-161 ...HOUSING, CALIPER - ASSEMBLY - LEFT FRONT (INC. 3-5)
    ...HOUSING, CALIPER - ASSEMBLY - LEFT FRONT (INC. 3-5)
  • 2
    1436-160 ...HOUSING, CALIPER - ASSEMBLY - REAR (INC. 3-5)
    ...HOUSING, CALIPER - ASSEMBLY - REAR (INC. 3-5)
  • 3
    0502-606 ......PISTON/SEAL SET (INC. 4)
    ......PISTON/SEAL SET (INC. 4)
  • 4
    0502-607 .........SEAL SET
    .........SEAL SET
  • 5
    0502-609 ......VALVE, BLEED
    ......VALVE, BLEED
  • 6
    0502-608 ...O-RING, GUIDE - SET
    ...O-RING, GUIDE - SET
  • 7
    0502-605 ...BRACKET ASSEMBLY
    ...BRACKET ASSEMBLY
  • 8
    1502-694 ...PAD, BRAKE - SET
    ...PAD, BRAKE - SET
  • 9
    3305-785 SCREW, CAP
    SCREW, CAP
  • 10
    3303-257 BOLT, BANJO-FITTING
    BOLT, BANJO-FITTING
  • 11
    3303-284 WASHER, CRUSH
    WASHER, CRUSH
  • 12
    3303-919 CLAMP, BRAKE HOSE
    CLAMP, BRAKE HOSE
  • 13
    3304-553 SCREW, CAP
    SCREW, CAP
  • 14
    3313-523 BRACKET, MOUNTING - BRAKE HOSE ASSEMBLY
    BRACKET, MOUNTING - BRAKE HOSE ASSEMBLY
  • 15
    3305-789 SCREW, CAP
    SCREW, CAP
  • 16
    3313-750 HOSE, BRAKE - ASSEMBLY
    HOSE, BRAKE - ASSEMBLY
  • 17
    3313-422 HOSE, BRAKE
    HOSE, BRAKE
  • 18
    3306-452 BRAKE, FRONT - ASSEMBLY (INC. 19-22)
    BRAKE, FRONT - ASSEMBLY (INC. 19-22)
  • 19
    3303-318 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 20
    3305-381 ...COVER, RESERVOIR
    ...COVER, RESERVOIR
  • 21
    3305-407 ...DIAPHRAGM
    ...DIAPHRAGM
  • 22
    3305-983 ...CLAMP, HANDLEBAR
    ...CLAMP, HANDLEBAR
  • 23
    3304-746 SCREW, CAP
    SCREW, CAP
  • 24
    3303-254 SCREW, SHOULDER
    SCREW, SHOULDER
  • 25
    3306-540 LEVER, BRAKE - RIGHT
    LEVER, BRAKE - RIGHT
  • 26
    3304-654 NUT, LOCK
    NUT, LOCK
  • 27
    3305-384 PIN, BRAKE LEVER
    PIN, BRAKE LEVER
  • 28
    3305-383 SPRING
    SPRING
  • 29
    3305-382 LOCK, BRAKE LEVER
    LOCK, BRAKE LEVER
  • 30
    3306-449 SWITCH, BRAKE
    SWITCH, BRAKE
  • 31
    3306-450 BRAKE, REAR - ASSEMBLY (INC. 19-22)
    BRAKE, REAR - ASSEMBLY (INC. 19-22)
  • 32
    3305-389 LEVER, BRAKE - LEFT
    LEVER, BRAKE - LEFT
  • 33
    3306-451 HOSE, BRAKE
    HOSE, BRAKE
  • 34
    0123-788 TIE, CABLE - 8 IN.
    TIE, CABLE - 8 IN.
  • 35
    3313-820 SWITCH, BRAKE
    SWITCH, BRAKE
  • 36
    3313-681 HOSE, BRAKE
    HOSE, BRAKE
  • 37
    3306-370 BRAKE ASSEMBLY
    BRAKE ASSEMBLY
  • 38
    3303-383 SCREW, CAP
    SCREW, CAP
  • 39
    3304-141 PIN, COTTER
    PIN, COTTER
  • 40
    3304-050 WASHER
    WASHER
  • 41
    3306-152 PIN, CLEVIS
    PIN, CLEVIS
  • 42
    3304-543 SCREW, CAP
    SCREW, CAP
  • 43
    3304-135 WASHER
    WASHER
  • 44
    1602-213 O-RING
    O-RING
  • 45
    3306-499 LEVER, BRAKE
    LEVER, BRAKE
