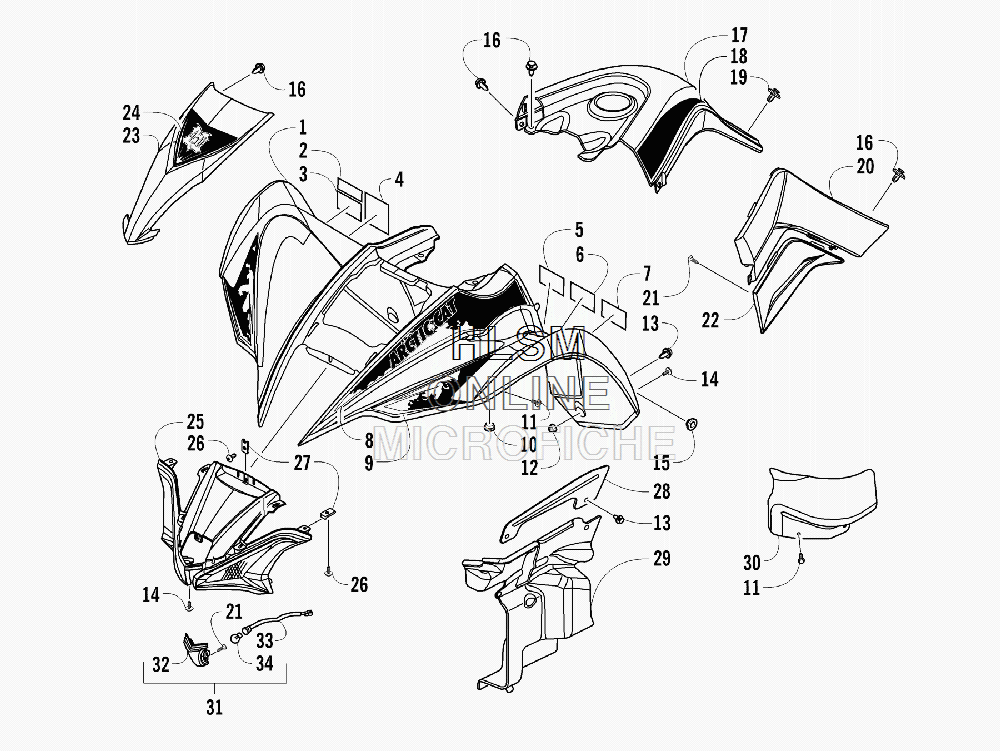

FRONT BODY ASSEMBLY (4CUSZ) для Arctic Cat 450 XC CAT GREEN BLACK [A2011KCK4CUSZ] - 2011 года выпуска
-
№АртикулНазвание
-
13306-558 PANEL, BODY - CAT GREEN (INC. 2-7)PANEL, BODY - CAT GREEN (INC. 2-7)
-
21411-577 ...DECAL, WARNING - OFF-ROAD ONLY...DECAL, WARNING - OFF-ROAD ONLY
-
31411-804 ...DECAL, WARNING - AGE...DECAL, WARNING - AGE
-
41411-932 ...DECAL, WARNING - GENERAL...DECAL, WARNING - GENERAL
-
50411-835 ...DECAL, WARNING - TURN/HILL...DECAL, WARNING - TURN/HILL
-
61411-109 ...DECAL, WARNING - REVERSE...DECAL, WARNING - REVERSE
-
70411-457 ...DECAL, WARNING - PRE-RIDE...DECAL, WARNING - PRE-RIDE
-
82411-584 DECAL, FENDER - UPPER RIGHTDECAL, FENDER - UPPER RIGHT
-
82411-585 DECAL, FENDER - UPPER LEFTDECAL, FENDER - UPPER LEFT
-
92411-572 DECAL, FENDER - FORWARD RIGHTDECAL, FENDER - FORWARD RIGHT
-
92411-573 DECAL, FENDER - FORWARD LEFTDECAL, FENDER - FORWARD LEFT
-
103306-458 BUMPERBUMPER
-
113304-587 SCREW, CAPSCREW, CAP
-
123304-431 NUT, LOCKNUT, LOCK
-
133305-448 CLIP, RETAININGCLIP, RETAINING
-
143304-404 SCREW, MACHINESCREW, MACHINE
-
150423-678 GROMMETGROMMET
-
163303-592 CLIP, RETAININGCLIP, RETAINING
-
173306-555 COVER, GAS TANK - CAT GREENCOVER, GAS TANK - CAT GREEN
-
182411-578 DECAL, GAS TANK COVER - RIGHTDECAL, GAS TANK COVER - RIGHT
-
182411-579 DECAL, GAS TANK COVER - LEFTDECAL, GAS TANK COVER - LEFT
-
193304-652 SCREW, CAPSCREW, CAP
-
203306-570 PANEL, FENDER - UPPER RIGHTPANEL, FENDER - UPPER RIGHT
-
203306-571 PANEL, FENDER - UPPER LEFTPANEL, FENDER - UPPER LEFT
-
213304-651 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
223306-548 PANEL, FENDER - LOWER RIGHTPANEL, FENDER - LOWER RIGHT
-
223306-549 PANEL, FENDER - LOWER LEFTPANEL, FENDER - LOWER LEFT
-
233306-561 PANEL, ACCESS - CAT GREENPANEL, ACCESS - CAT GREEN
-
242411-569 DECAL, CRESTDECAL, CREST
-
253306-539 FASCIA, UPPERFASCIA, UPPER
-
263304-029 SCREW, CAPSCREW, CAP
-
273304-061 CLIP, U-NUTCLIP, U-NUT
-
283306-542 PANEL, SPLASH - UPPERPANEL, SPLASH - UPPER
-
293306-284 PANEL, SPLASH - LOWER RIGHTPANEL, SPLASH - LOWER RIGHT
-
293306-285 PANEL, SPLASH - LOWER LEFTPANEL, SPLASH - LOWER LEFT
-
303313-844 PROTECTOR, HOSEPROTECTOR, HOSE
-
313306-507 RUNNING LIGHT - ASSEMBLY (INC. 32-34)RUNNING LIGHT - ASSEMBLY (INC. 32-34)
-
323306-508 ...LENS...LENS
-
333306-509 ...HARNESS...HARNESS
-
343303-847 ...BULB...BULB
