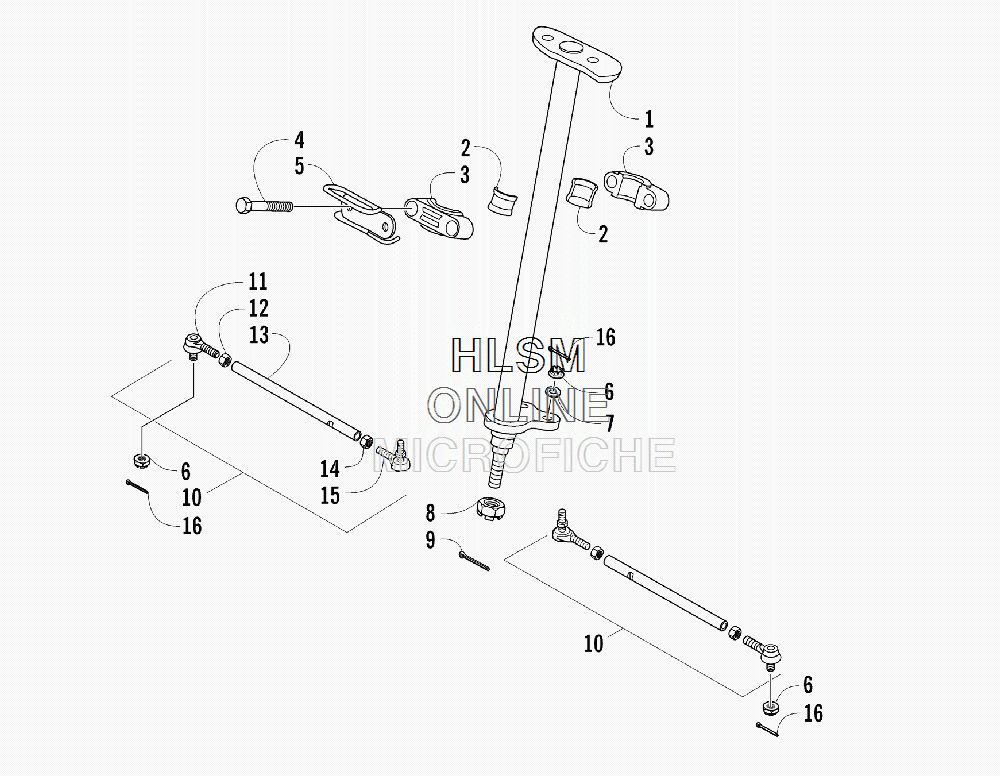

STEERING ASSEMBLY для Arctic Cat 105 UTILITY CAT GREEN [A2011KYC2BUSZ] - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    3305-103 POST, STEERING
    POST, STEERING
  • 2
    3305-496 BUSHING, SLEEVE
    BUSHING, SLEEVE
  • 3
    3305-927 BLOCK, MOUNTING - STEERING POST
    BLOCK, MOUNTING - STEERING POST
  • 4
    3304-649 SCREW, CAP
    SCREW, CAP
  • 5
    3303-962 CLAMP, MOUNTING BLOCK
    CLAMP, MOUNTING BLOCK
  • 6
    3304-130 NUT
    NUT
  • 7
    3305-107 WASHER
    WASHER
  • 8
    3304-032 NUT
    NUT
  • 9
    3303-470 PIN, COTTER
    PIN, COTTER
  • 10
    3305-105 TIE ROD - ASSEMBLY (INC. 11-15)
    TIE ROD - ASSEMBLY (INC. 11-15)
  • 11
    3303-971 ...BALL JOINT, TIE ROD - RIGHT
    ...BALL JOINT, TIE ROD - RIGHT
  • 12
    3303-326 ...NUT, HEX - RIGHT
    ...NUT, HEX - RIGHT
  • 13
    3305-106 ...TUBE, TIE ROD
    ...TUBE, TIE ROD
  • 14
    3303-327 ...NUT, HEX - LEFT
    ...NUT, HEX - LEFT
  • 15
    3303-973 ...BALL JOINT, TIE ROD - LEFT
    ...BALL JOINT, TIE ROD - LEFT
  • 16
    3304-143 PIN, COTTER
    PIN, COTTER
