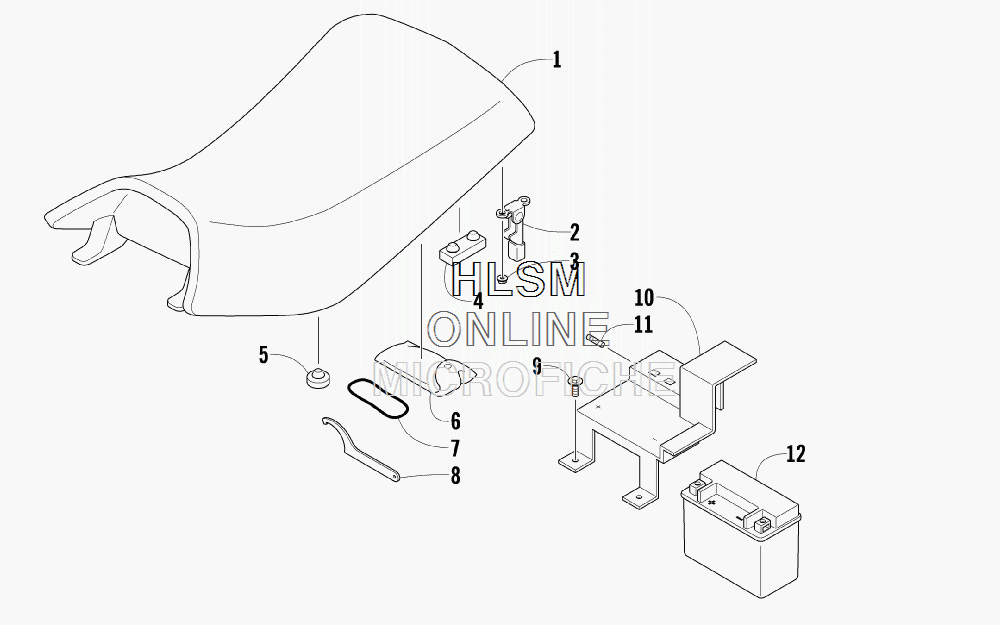

SEAT- BATTERY- AND TOOL KIT ASSEMBLIES для Arctic Cat 105 UTILITY CAT GREEN [A2011KYC2BUSZ] - 2011 года выпуска`
-
№АртикулНазвание
-
13305-729 SEAT ASSEMBLY (INC. 2-3)SEAT ASSEMBLY (INC. 2-3)
-
23304-392 ...LATCH, SEAT...LATCH, SEAT
-
33305-929 ...NUT...NUT
-
43306-579 BUMPER, SEAT - REARBUMPER, SEAT - REAR
-
53304-568 BUMPER, SEAT - FRONTBUMPER, SEAT - FRONT
-
63305-730 KIT, TOOLKIT, TOOL
-
73303-242 RETAINER, TOOL KITRETAINER, TOOL KIT
-
81441-797 WRENCH, SPANNER - OPTIONALWRENCH, SPANNER - OPTIONAL
-
93304-029 SCREW, MACHINESCREW, MACHINE
-
103305-157 COVER, BATTERY (INC. 11)COVER, BATTERY (INC. 11)
-
113305-233 ...FUSE - 20 AMP...FUSE - 20 AMP
-
123445-034 BATTERYBATTERY
Все узлы модели:
- AIR INTAKE ASSEMBLY
- CAM CHAIN ASSEMBLY
- CARBURETOR ASSEMBLY
- CLUTCH ASSEMBLY
- CYLINDER HEAD ASSEMBLY
- ELECTRICAL AND WIRING HARNESS ASSEMBLY
- EXHAUST ASSEMBLY
- FRAME AND RELATED PARTS ASSEMBLY
- FRONT BODY PANEL AND HEADLIGHT ASSEMBLIES
- FRONT SUSPENSION ASSEMBLY
- FRONT WHEEL AND BRAKE ASSEMBLIES
- GAS TANK ASSEMBLY
- HANDLEBAR AND CONTROLS ASSEMBLY
- HYDRAULIC HAND BRAKE ASSEMBLY
- KICK STARTER AND COOLING DUCT ASSEMBLY
- LEFT CRANKCASE AND COVER ASSEMBLY
- PISTON AND CRANKSHAFT ASSEMBLY
- RACKS AND BUMPER ASSEMBLY
- REAR AXLE AND BRAKE ASSEMBLY
- REAR BODY PANEL AND TAILLIGHT ASSEMBLIES
- REAR SUSPENSION ASSEMBLY
- REAR WHEEL ASSEMBLY
- RIGHT CRANKCASE AND COVER ASSEMBLY
- • SEAT- BATTERY- AND TOOL KIT ASSEMBLIES
- SHIFT LEVER ASSEMBLY
- STARTER MOTOR AND OIL PUMP ASSEMBLY
- STEERING ASSEMBLY
- THROTTLE CONTROL ASSEMBLY
- TRANSMISSION ASSEMBLY
