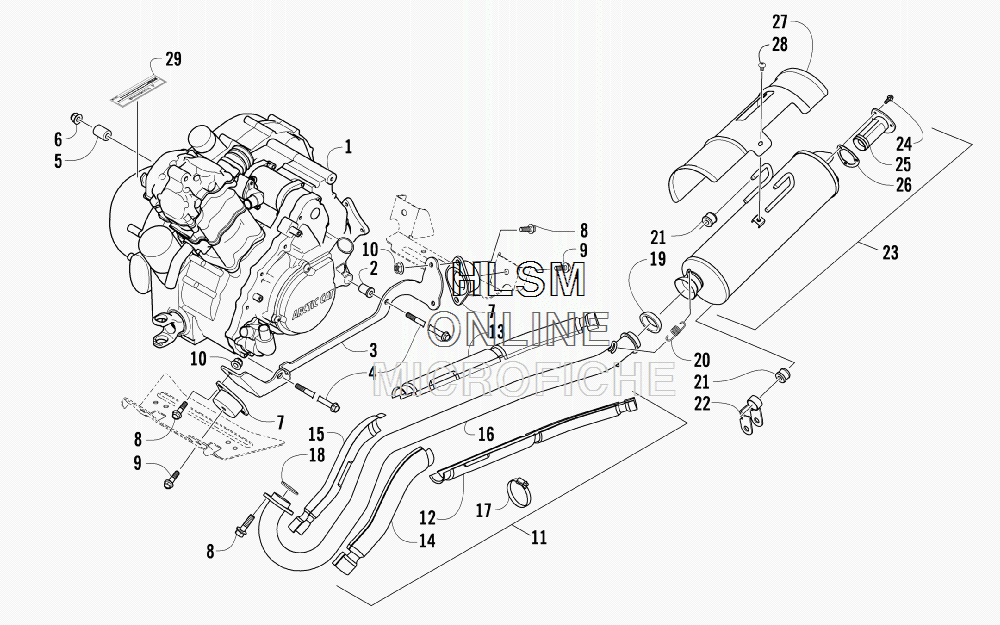

ENGINE AND EXHAUST для Arctic Cat TRV 550 S EFI BLUE [A2010TBO1PUSD] - 2010 года выпуска`
-
№АртикулНазвание
-
10800-073 ENGINE, A550FENGINE, A550F
-
20801-180 MOUNT, RUBBER - ENGINEMOUNT, RUBBER - ENGINE
-
31506-740 BRACKET, ENGINE - RIGHTBRACKET, ENGINE - RIGHT
-
31506-741 BRACKET, ENGINE - LEFTBRACKET, ENGINE - LEFT
-
40423-405 SCREW, CAPSCREW, CAP
-
51423-025 SPACERSPACER
-
68428-002 NUT, LOCKNUT, LOCK
-
72406-065 MOUNT, ENGINEMOUNT, ENGINE
-
88408-820 SCREW, CAPSCREW, CAP
-
98408-012 SCREW, CAPSCREW, CAP
-
108432-802 NUT, LOCKNUT, LOCK
-
110512-363 PIPE, EXHAUST - ASSEMBLY (INC. 12-17)PIPE, EXHAUST - ASSEMBLY (INC. 12-17)
-
120412-355 ...SHIELD, EXHAUST PIPE - LOWER - REAR...SHIELD, EXHAUST PIPE - LOWER - REAR
-
130412-354 ...SHIELD, EXHAUST PIPE - UPPER - REAR...SHIELD, EXHAUST PIPE - UPPER - REAR
-
140412-349 ...SHIELD, EXHAUST PIPE - INNER - FRONT...SHIELD, EXHAUST PIPE - INNER - FRONT
-
150412-348 ...SHIELD, EXHAUST PIPE - OUTER - FRONT...SHIELD, EXHAUST PIPE - OUTER - FRONT
-
160512-362 ...PIPE, EXHAUST...PIPE, EXHAUST
-
170423-317 ...CLAMP...CLAMP
-
180412-338 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
190412-375 SEAL, EXHAUSTSEAL, EXHAUST
-
200612-668 SPRING, EXTENSIONSPRING, EXTENSION
-
210412-215 BUSHINGBUSHING
-
221506-732 CHANNEL, MUFFLER SUPPORTCHANNEL, MUFFLER SUPPORT
-
230512-355 MUFFLER - ASSEMBLY (INC. 24-26)MUFFLER - ASSEMBLY (INC. 24-26)
-
248408-616 ...SCREW, CAP...SCREW, CAP
-
250512-219 ...ARRESTER, SPARK - ASSEMBLY...ARRESTER, SPARK - ASSEMBLY
-
260412-313 ...GASKET, SPARK ARRESTER...GASKET, SPARK ARRESTER
-
270412-373 COVER, MUFFLERCOVER, MUFFLER
-
288477-610 SCREW, MACHINESCREW, MACHINE
-
290411-426 DECAL, WARNING - CLUTCH COVERDECAL, WARNING - CLUTCH COVER
