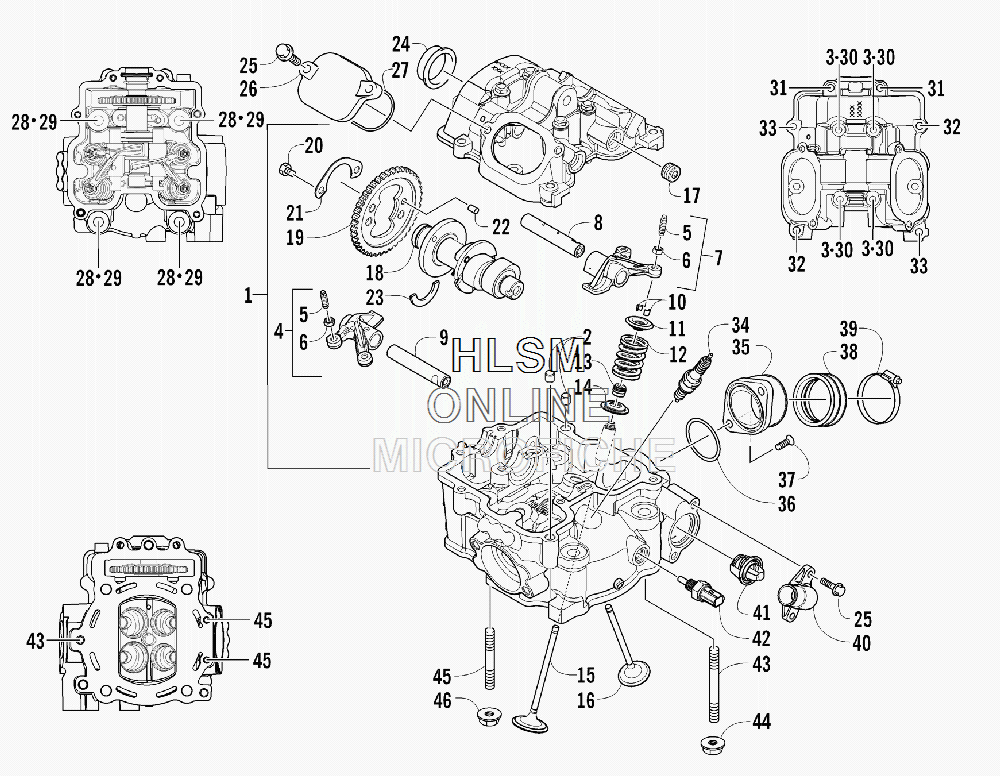

CYLINDER HEAD AND CAMSHAFT/VALVE ASSEMBLY для Arctic Cat TRV 550 S EFI BLUE [A2010TBO1PUSD] - 2010 года выпуска`
-
№АртикулНазвание
-
10808-137 HEAD, CYLINDER - ASSEMBLY (INC. 2-17)HEAD, CYLINDER - ASSEMBLY (INC. 2-17)
-
20829-001 ...PIN, DOWEL...PIN, DOWEL
-
30826-001 ...SCREW, CAP...SCREW, CAP
-
40809-205 ...ARM, VALVE ROCKER - EXHAUST (INC. TWO NO. 5-6)...ARM, VALVE ROCKER - EXHAUST (INC. TWO NO. 5-6)
-
50809-033 ......SCREW, ADJUSTER......SCREW, ADJUSTER
-
60827-007 ......NUT......NUT
-
70809-202 ...ARM, VALVE ROCKER - INTAKE (INC. TWO NO. 5-6)...ARM, VALVE ROCKER - INTAKE (INC. TWO NO. 5-6)
-
80809-007 ...SHAFT, ROCKER ARM - INTAKE...SHAFT, ROCKER ARM - INTAKE
-
90809-008 ...SHAFT, ROCKER ARM - EXHAUST...SHAFT, ROCKER ARM - EXHAUST
-
100809-014 ...COTTER, VALVE...COTTER, VALVE
-
110809-013 ...RETAINER, SPRING...RETAINER, SPRING
-
120809-138 ...SPRING, VALVE...SPRING, VALVE
-
130830-016 ...SEAL, OIL...SEAL, OIL
-
140809-006 ...SEAT, SPRING - VALVE...SEAT, SPRING - VALVE
-
150809-039 ...VALVE, INTAKE...VALVE, INTAKE
-
160809-040 ...VALVE, EXHAUST...VALVE, EXHAUST
-
170831-041 ...PLUG, SHAFT...PLUG, SHAFT
-
180809-245 CAMSHAFTCAMSHAFT
-
190809-002 SPROCKETSPROCKET
-
200826-034 SCREW, CAPSCREW, CAP
-
210828-004 PLATE, RETAINERPLATE, RETAINER
-
220829-008 PIN, DOWELPIN, DOWEL
-
230809-003 C-RINGC-RING
-
240808-077 PLUG, CYLINDER HEADPLUG, CYLINDER HEAD
-
250826-007 SCREW, CAPSCREW, CAP
-
260808-003 CAP, INSPECTIONCAP, INSPECTION
-
270830-167 O-RINGO-RING
-
280808-037 SCREW, CAPSCREW, CAP
-
290830-147 WASHERWASHER
-
300830-107 GASKETGASKET
-
310826-002 SCREW, CAPSCREW, CAP
-
320826-005 SCREW, CAPSCREW, CAP
-
330826-006 SCREW, CAPSCREW, CAP
-
340217-799 SPARK PLUG - CPR8ESPARK PLUG - CPR8E
-
350470-668 FLANGE, INTAKE MANIFOLDFLANGE, INTAKE MANIFOLD
-
360830-090 O-RINGO-RING
-
370826-008 SCREW, MACHINESCREW, MACHINE
-
380470-669 BOOTBOOT
-
390423-066 CLAMPCLAMP
-
400808-008 COVER, THERMOSTATCOVER, THERMOSTAT
-
410808-078 THERMOSTATTHERMOSTAT
-
420808-124 SENSOR, ENGINE COOLANT TEMPERATURESENSOR, ENGINE COOLANT TEMPERATURE
-
430827-031 BOLT, STUDBOLT, STUD
-
448424-804 NUTNUT
-
450827-030 BOLT, STUDBOLT, STUD
-
468424-604 NUTNUT
