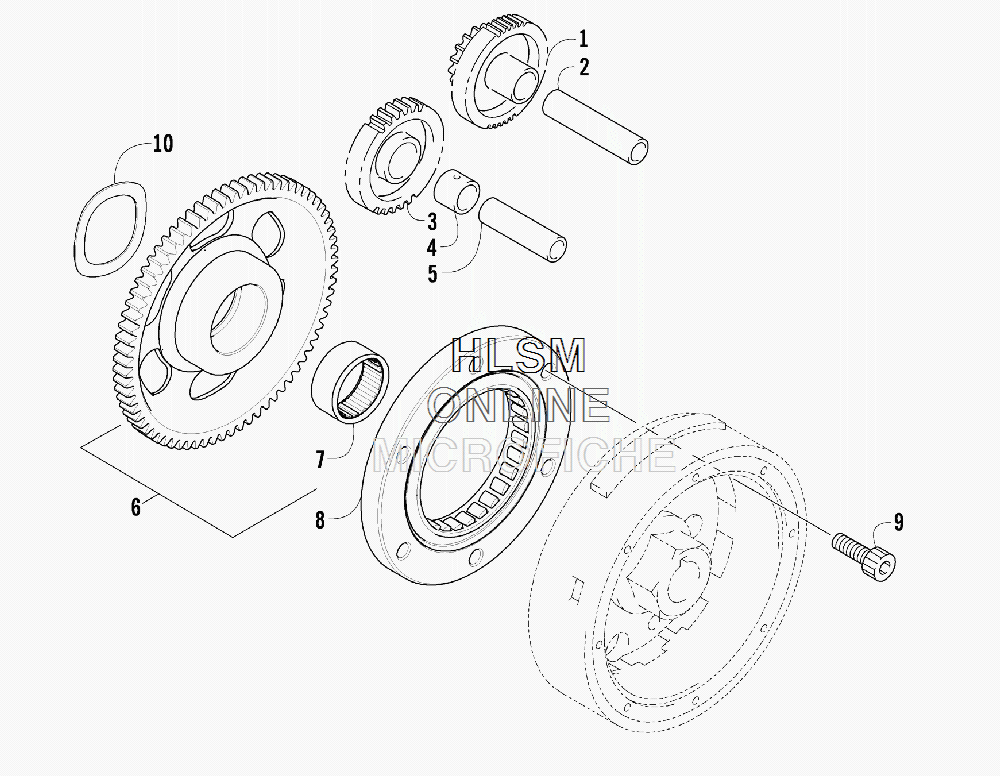

STARTER CLUTCH ASSEMBLY для Arctic Cat THUNDERCAT 1000 H2 LE (METALLIC BLACK) [A2010IEW4EUSO] - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    0815-026 GEAR, STARTER,IDLER-58/14T NO.1
    GEAR, STARTER,IDLER-58/14T NO.1
  • 2
    0829-031 SHAFT, STARTER GEAR,12X58.5
    SHAFT, STARTER GEAR,12X58.5
  • 3
    0815-002 GEAR, STARTER IDLER-27T- NO. 2
    GEAR, STARTER IDLER-27T- NO. 2
  • 4
    0815-003 SPACER, STARTER IDLER GEAR NO. 2
    SPACER, STARTER IDLER GEAR NO. 2
  • 5
    0829-032 SHAFT, STARTER GEAR,12X44.7
    SHAFT, STARTER GEAR,12X44.7
  • 6
    0815-004 GEAR, STARTER CLUTCH-73T-ASSY (INC. 7)
    GEAR, STARTER CLUTCH-73T-ASSY (INC. 7)
  • 7
    0832-079 ...BEARING, NEEDLE ROLLER-31X39X18
    ...BEARING, NEEDLE ROLLER-31X39X18
  • 8
    0802-035 CLUTCH, ONE WAY W/ HUB - ASSSEMBLY
    CLUTCH, ONE WAY W/ HUB - ASSSEMBLY
  • 9
    0826-069 SCREW, TORX SOCKET HEAD, M8 X 1.25 X 20
    SCREW, TORX SOCKET HEAD, M8 X 1.25 X 20
  • 10
    0828-113 WASHER, SPRING-3 WAVE-1.25X2X.8T
    WASHER, SPRING-3 WAVE-1.25X2X.8T
