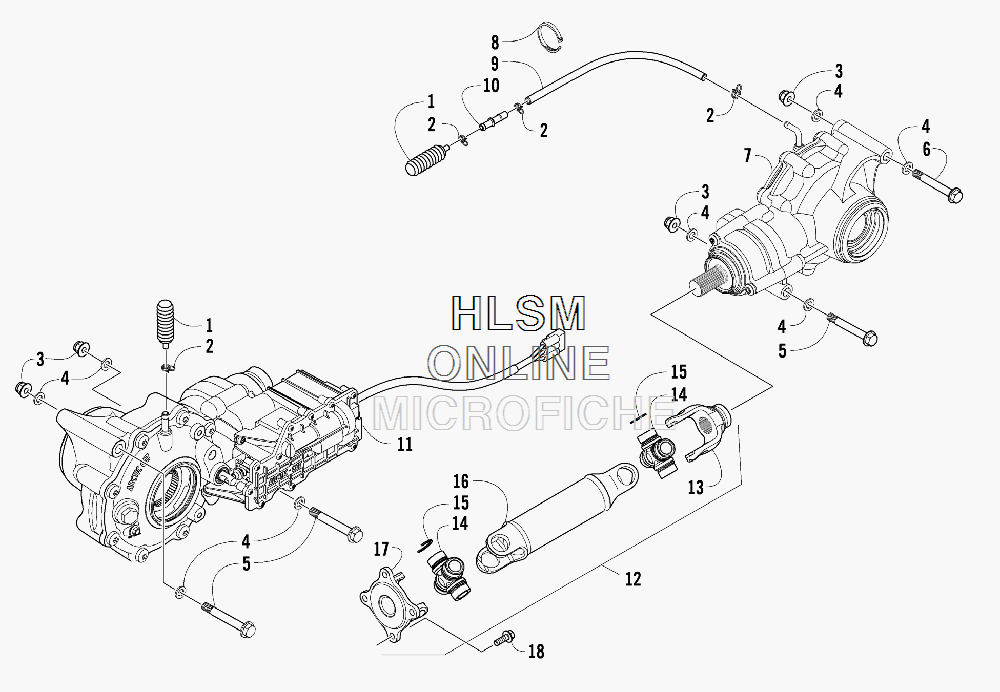

DRIVE TRAIN ASSEMBLY для Arctic Cat THUNDERCAT 1000 H2 LE (METALLIC BLACK) [A2010IEW4EUSO] - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    1402-620 BLADDER, GEARCASE
    BLADDER, GEARCASE
  • 2
    0423-315 CLAMP, HOSE-DOUBLE WIRE
    CLAMP, HOSE-DOUBLE WIRE
  • 3
    8428-002 NUT, LOCK
    NUT, LOCK
  • 4
    0423-426 WASHER
    WASHER
  • 5
    0423-404 SCREW, CAP-HFH M10X1.25X120 CL10.9 Z & Y
    SCREW, CAP-HFH M10X1.25X120 CL10.9 Z & Y
  • 6
    0423-830 BOLT, HFH M10-1.25X125 CL10.9 ZY
    BOLT, HFH M10-1.25X125 CL10.9 ZY
  • 7
    1502-403 GEARCASE, REAR(3.1-H2-PTL)
    GEARCASE, REAR(3.1-H2-PTL)
  • 8
    0123-788 TIE, CABLE - 8 IN.
    TIE, CABLE - 8 IN.
  • 9
    0410-048 HOSE, VENT - 25 FT
    HOSE, VENT - 25 FT
  • 10
    0470-702 FITTING, VENT
    FITTING, VENT
  • 11
    1502-395 GEARCASE, FRONT (3.1-H2 ELEC LOCK)
    GEARCASE, FRONT (3.1-H2 ELEC LOCK)
  • 12
    1502-098 DRIVESHAFT, REAR - ASSEMBLY (INC. 13-17)
    DRIVESHAFT, REAR - ASSEMBLY (INC. 13-17)
  • 13
    1402-567 ...YOKE,SLIP (25MM)
    ...YOKE,SLIP (25MM)
  • 14
    0402-944 ...CROSS, UNIVERSAL (25MM) - SET (INC.15)
    ...CROSS, UNIVERSAL (25MM) - SET (INC.15)
  • 15
    0423-395 ......RING, RETAINING
    ......RING, RETAINING
  • 16
    1502-099 ...DRIVESHAFT, REAR
    ...DRIVESHAFT, REAR
  • 17
    1402-689 ...YOKE, FLANGE
    ...YOKE, FLANGE
  • 18
    8408-820 SCREW, CAP-HFH M8X1.25X20 CL8.8 Z & Y
    SCREW, CAP-HFH M8X1.25X20 CL8.8 Z & Y
