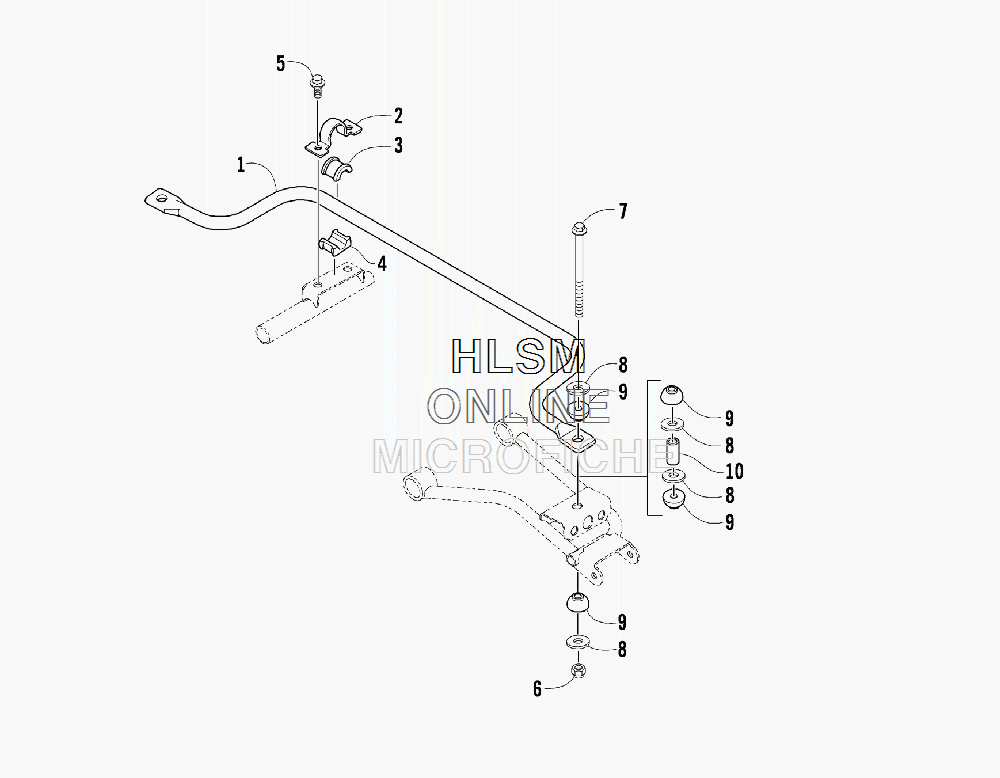

SWAY BAR ASSEMBLY для Arctic Cat PROWLER XT 550 RED [U2010P2O4EUSR] - 2010 года выпуска
-
№АртикулНазвание
-
10404-110 BAR, SWAY - ASSEMBLYBAR, SWAY - ASSEMBLY
-
20404-135 CLAMP, SWAY BAR BUSHINGCLAMP, SWAY BAR BUSHING
-
30404-094 BUSHING, SWAY BAR - UPPERBUSHING, SWAY BAR - UPPER
-
40404-095 BUSHING, SWAY BAR - LOWERBUSHING, SWAY BAR - LOWER
-
58409-016 SCREW, CAPSCREW, CAP
-
68422-002 NUT, LOCKNUT, LOCK
-
70423-335 SCREW, CAPSCREW, CAP
-
80423-073 WASHERWASHER
-
91402-434 BUSHINGBUSHING
-
100423-620 SPACERSPACER
