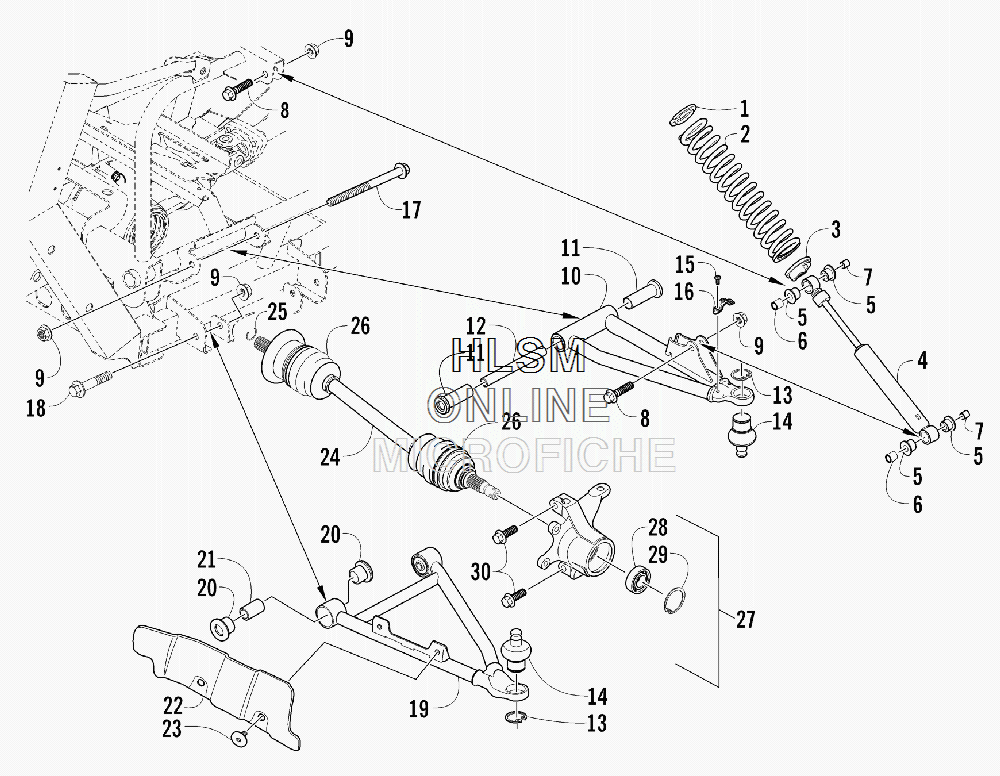

FRONT SUSPENSION ASSEMBLY для Arctic Cat PROWLER XT 550 RED [U2010P2O4EUSR] - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    1603-889 RETAINER, SPRING
    RETAINER, SPRING
  • 2
    0503-402 SPRING, SUSPENSION - PLATINUM (4EUSR/4EOSR/4EUSZ/4EOSZ)
    SPRING, SUSPENSION - PLATINUM (4EUSR/4EOSR/4EUSZ/4EOSZ)
  • 3
    0403-102 CAM, SPRING ADJUSTER
    CAM, SPRING ADJUSTER
  • 4
    0403-147 SHOCK ABSORBER (INC. 5-6)
    SHOCK ABSORBER (INC. 5-6)
  • 5
    0603-955 ...BUSHING
    ...BUSHING
  • 6
    1603-209 ...SLEEVE
    ...SLEEVE
  • 7
    0404-116 SLEEVE
    SLEEVE
  • 8
    8409-040 SCREW, CAP
    SCREW, CAP
  • 9
    8428-002 NUT, LOCK
    NUT, LOCK
  • 10
    0503-420 A-ARM, UPPER RIGHT - PLATINUM (INC. 11-14) (4EUSR/4EOSR/4EUSZ/4EOSZ)
    A-ARM, UPPER RIGHT - PLATINUM (INC. 11-14) (4EUSR/4EOSR/4EUSZ/4EOSZ)
  • 10
    0503-421 A-ARM, UPPER LEFT - PLATINUM (INC. 11-14) (4EUSR/4EOSR/4EUSZ/4EOSZ)
    A-ARM, UPPER LEFT - PLATINUM (INC. 11-14) (4EUSR/4EOSR/4EUSZ/4EOSZ)
  • 11
    0403-207 ...BUSHING
    ...BUSHING
  • 12
    0403-080 ...AXLE
    ...AXLE
  • 13
    0423-009 ...RING, RETAINING
    ...RING, RETAINING
  • 14
    0405-115 ...BALL JOINT
    ...BALL JOINT
  • 15
    0423-946 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 16
    1502-594 CLAMP, ROUTING
    CLAMP, ROUTING
  • 17
    0423-723 SCREW, CAP
    SCREW, CAP
  • 18
    8409-075 SCREW, CAP
    SCREW, CAP
  • 19
    0503-380 A-ARM, LOWER RIGHT - PLATINUM (INC. 13-14 AND 20-21) (4EUSR/4EOSR/4EUSZ/4EOSZ)
    A-ARM, LOWER RIGHT - PLATINUM (INC. 13-14 AND 20-21) (4EUSR/4EOSR/4EUSZ/4EOSZ)
  • 19
    0503-381 A-ARM, LOWER LEFT - PLATINUM (INC. 13-14 AND 20-21) (4EUSR/4EOSR/4EUSZ/4EOSZ)
    A-ARM, LOWER LEFT - PLATINUM (INC. 13-14 AND 20-21) (4EUSR/4EOSR/4EUSZ/4EOSZ)
  • 20
    0403-208 ...BUSHING
    ...BUSHING
  • 21
    0403-214 ...AXLE
    ...AXLE
  • 22
    0441-752 GUARD, BOOT - RIGHT - RED (4EUSR/4EOSR)
    GUARD, BOOT - RIGHT - RED (4EUSR/4EOSR)
  • 22
    0441-753 GUARD, BOOT - LEFT - RED (4EUSR/4EOSR)
    GUARD, BOOT - LEFT - RED (4EUSR/4EOSR)
  • 23
    0423-545 SCREW, SHOULDER
    SCREW, SHOULDER
  • 24
    1502-347 AXLE - FRONT - LEFT (INC. 25-26)
    AXLE - FRONT - LEFT (INC. 25-26)
  • 24
    1502-348 AXLE - FRONT LOCKING - RIGHT (INC. 25-26)
    AXLE - FRONT LOCKING - RIGHT (INC. 25-26)
  • 25
    0423-844 ...RING, RETAINING
    ...RING, RETAINING
  • 26
    0436-276 ...REPAIR KIT, BOOT - FRONT AXLE
    ...REPAIR KIT, BOOT - FRONT AXLE
  • 27
    0505-580 KNUCKLE - ASSEMBLY - RIGHT (INC. 28-29)
    KNUCKLE - ASSEMBLY - RIGHT (INC. 28-29)
  • 27
    0505-581 KNUCKLE - ASSEMBLY - LEFT (INC. 28-29)
    KNUCKLE - ASSEMBLY - LEFT (INC. 28-29)
  • 28
    1402-809 ...BEARING
    ...BEARING
  • 29
    0423-423 ...RING, RETAINING
    ...RING, RETAINING
  • 30
    8409-030 SCREW, CAP
    SCREW, CAP
