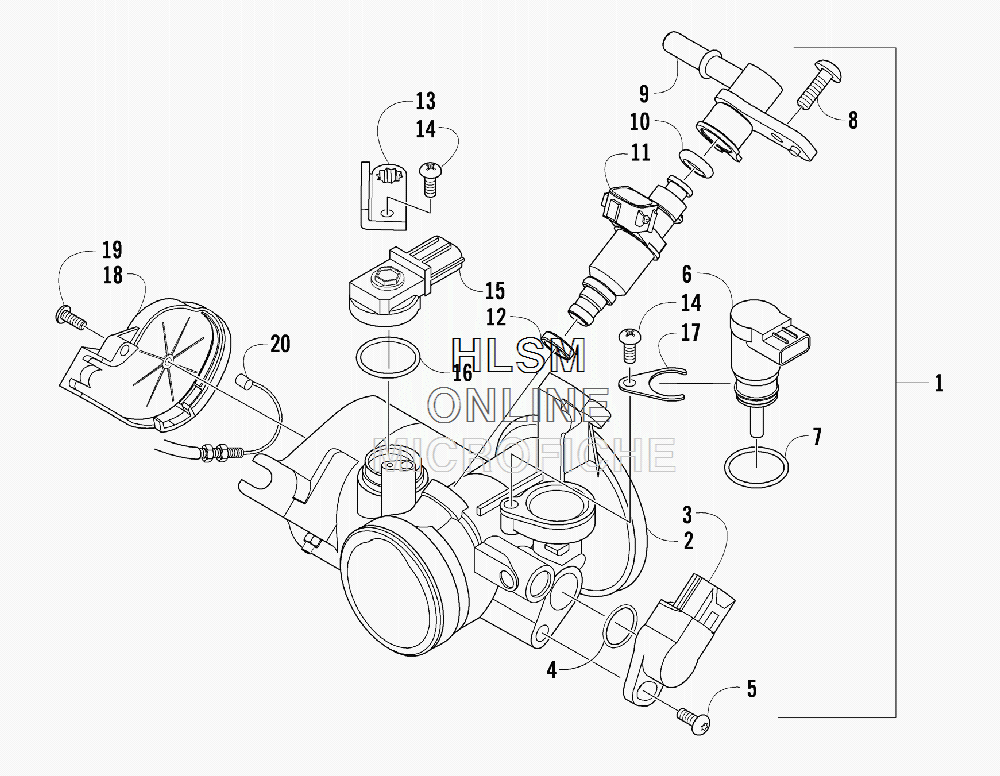

THROTTLE BODY ASSEMBLY для Arctic Cat 550 S EFI (RED) [A2010ICO1PUSR] - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    0470-753 THROTTLE - ASSEMBLY (INC. 2-19)
    THROTTLE - ASSEMBLY (INC. 2-19)
  • 3
    0430-072 ...SENSOR, THROTTLE POSITION
    ...SENSOR, THROTTLE POSITION
  • 4
    5507-234 ...O-RING
    ...O-RING
  • 5
    5507-231 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 6
    0430-074 ...VALVE, ISC
    ...VALVE, ISC
  • 7
    5507-233 ...O-RING
    ...O-RING
  • 8
    5507-238 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 9
    0470-687 ...RAIL, FUEL
    ...RAIL, FUEL
  • 10
    0470-767 ...O-RING
    ...O-RING
  • 11
    0470-762 ...INJECTOR, FUEL
    ...INJECTOR, FUEL
  • 12
    0470-768 ...SEAL
    ...SEAL
  • 13
    5507-227 ...BRACKET, MAP SENSOR
    ...BRACKET, MAP SENSOR
  • 14
    5507-117 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 15
    0430-073 ...SENSOR, MAP
    ...SENSOR, MAP
  • 16
    5507-232 ...O-RING
    ...O-RING
  • 17
    5507-229 ...PLATE, ISC VALVE
    ...PLATE, ISC VALVE
  • 18
    5507-223 ...COVER
    ...COVER
  • 19
    5507-037 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 20
    0487-057 CABLE, THROTTLE
    CABLE, THROTTLE
