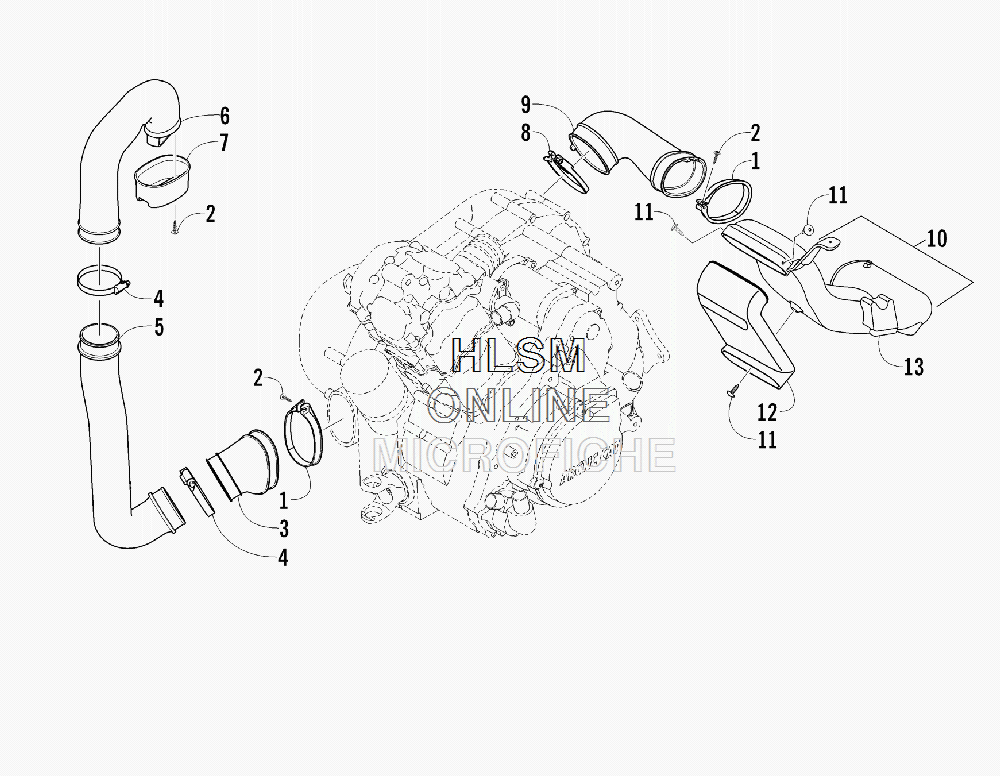

CASE/BELT COOLING ASSEMBLY для Arctic Cat 550 S EFI (RED) [A2010ICO1PUSR] - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    0423-550 CLAMP, PLASTIC
    CLAMP, PLASTIC
  • 2
    0423-342 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 3
    0413-252 BOOT, DUCT - AIR INTAKE - FRONT
    BOOT, DUCT - AIR INTAKE - FRONT
  • 4
    0423-019 CLAMP
    CLAMP
  • 5
    0413-250 DUCT, AIR INTAKE - FRONT - LOWER
    DUCT, AIR INTAKE - FRONT - LOWER
  • 6
    0470-750 DUCT, AIR INTAKE - FRONT - UPPER
    DUCT, AIR INTAKE - FRONT - UPPER
  • 7
    0470-729 CUP, AIR INTAKE
    CUP, AIR INTAKE
  • 8
    0423-730 CLAMP
    CLAMP
  • 9
    0413-206 BOOT, DUCT - AIR OUT - REAR
    BOOT, DUCT - AIR OUT - REAR
  • 10
    0470-824 DUCT, AIR OUT - REAR (INC. THREE NO. 11 AND 12-13)
    DUCT, AIR OUT - REAR (INC. THREE NO. 11 AND 12-13)
  • 11
    0623-784 ...SCREW, SELF-TAPPING
    ...SCREW, SELF-TAPPING
  • 12
    0470-778 ...DUCT
    ...DUCT
  • 13
    0470-825 ...DUCT
    ...DUCT
