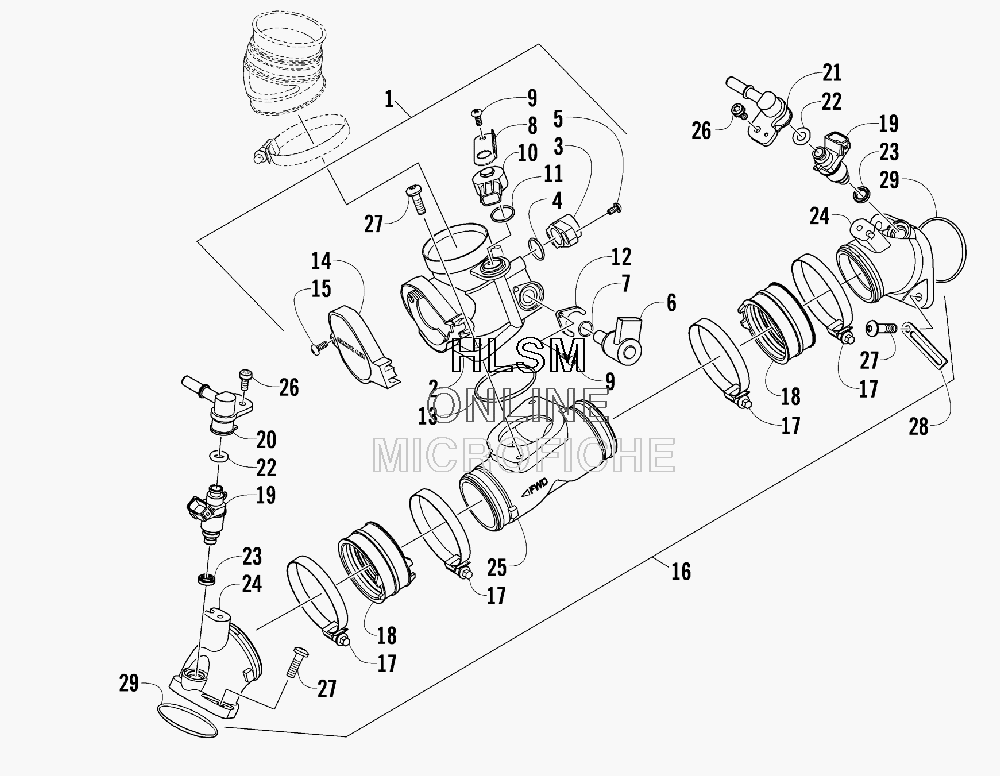

THROTTLE BODY ASSEMBLY для Arctic Cat PROWLER XTZ (SUNSET ORANGE) [U2009P4W4EUSK] - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    0470-686 THROTTLE - ASSEMBLY (INC. 2-15)
    THROTTLE - ASSEMBLY (INC. 2-15)
  • 3
    0430-072 SENSOR, THROTTLE POSITION
    SENSOR, THROTTLE POSITION
  • 4
    5507-234 O-RING, THROTTLE POSITION SENSOR
    O-RING, THROTTLE POSITION SENSOR
  • 5
    5507-231 SCREW, MACHINE
    SCREW, MACHINE
  • 6
    0430-074 VALVE, ISC
    VALVE, ISC
  • 7
    5507-233 O-RING, ISC VALVE
    O-RING, ISC VALVE
  • 8
    5507-227 BRACKET, MAP SENSOR
    BRACKET, MAP SENSOR
  • 9
    5507-117 SCREW, MACHINE
    SCREW, MACHINE
  • 10
    0430-073 SENSOR, MAP
    SENSOR, MAP
  • 11
    5507-232 O-RING, MAP SENSOR
    O-RING, MAP SENSOR
  • 12
    5507-229 PLATE, ISC VALVE
    PLATE, ISC VALVE
  • 13
    5507-235 O-RING
    O-RING
  • 14
    5507-223 COVER
    COVER
  • 15
    5507-037 SCREW, MACHINE
    SCREW, MACHINE
  • 16
    0570-230 MANIFOLD, INTAKE - ASSEMBLY (INC. 17-26)
    MANIFOLD, INTAKE - ASSEMBLY (INC. 17-26)
  • 17
    0423-066 CLAMP
    CLAMP
  • 18
    0470-660 BOOT, INTAKE - MANIFOLD
    BOOT, INTAKE - MANIFOLD
  • 19
    0470-688 INJECTOR, FUEL
    INJECTOR, FUEL
  • 20
    0470-763 RAIL, FUE- FRONT CYLINDER
    RAIL, FUE- FRONT CYLINDER
  • 21
    0470-764 RAIL, FUE- REAR CYLINDER
    RAIL, FUE- REAR CYLINDER
  • 22
    0470-767 O-RING, FUEINJECTOR
    O-RING, FUEINJECTOR
  • 23
    0470-768 RING, SEA- FUEINJECTOR
    RING, SEA- FUEINJECTOR
  • 24
    0570-140 MANIFOLD, INTAKE
    MANIFOLD, INTAKE
  • 25
    0570-156 PLENUM, INTAKE
    PLENUM, INTAKE
  • 26
    0423-371 SCREW, MACH M5X12
    SCREW, MACH M5X12
  • 27
    0826-008 SCREW, MACH-TSPH M6 X 1 X 20W/THREADLOC
    SCREW, MACH-TSPH M6 X 1 X 20W/THREADLOC
  • 28
    3002-964 CLAMP, WIRE
    CLAMP, WIRE
  • 29
    0830-090 O-RING
    O-RING
