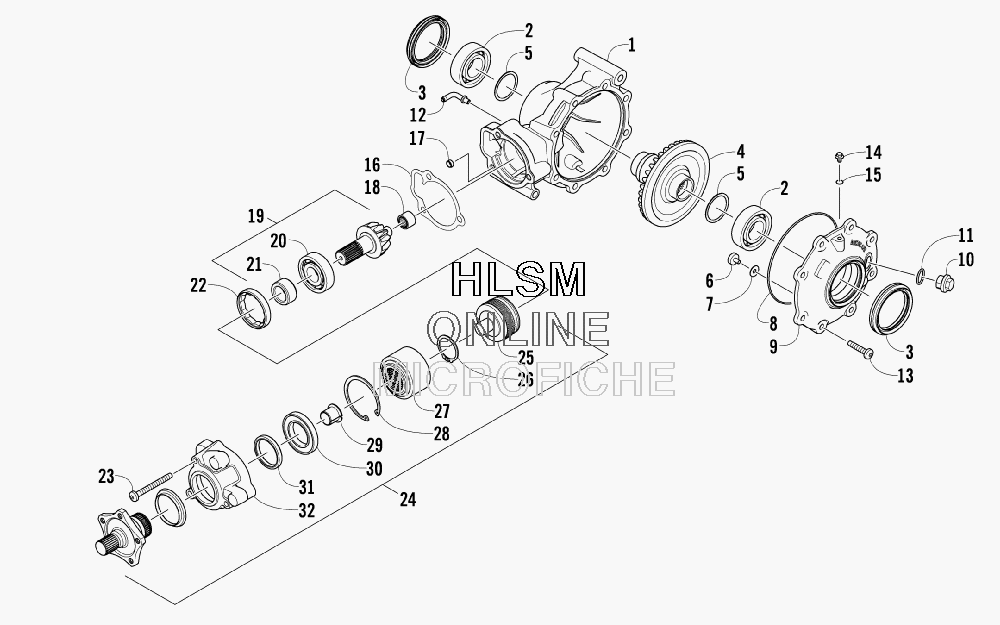

REAR DRIVE GEARCASE ASSEMBLY для Arctic Cat PROWLER XTZ (SUNSET ORANGE) [U2009P4W4EUSK] - 2009 года выпуска

  • №
    Артикул
    Название
  • 1502-404 GEARCASE, REAR DRIVE COMPLETE ASSEMBLY
    GEARCASE, REAR DRIVE COMPLETE ASSEMBLY
  • 1
    1502-587 HOUSING, GEARCASE
    HOUSING, GEARCASE
  • 2
    0402-393 BEARING
    BEARING
  • 3
    1402-713 SEAL
    SEAL
  • 4
    1402-033 GEAR, RING - 34T
    GEAR, RING - 34T
  • 5
    0402-405 SHIM, 41X49X1.3
    SHIM, 41X49X1.3
  • 5
    0402-406 SHIM, 41X49X1.4
    SHIM, 41X49X1.4
  • 5
    0402-407 SHIM, 41X49X1.5
    SHIM, 41X49X1.5
  • 5
    0402-408 SHIM, 41X49X1.6
    SHIM, 41X49X1.6
  • 5
    0402-409 SHIM, 41X49X1.7
    SHIM, 41X49X1.7
  • 6
    0402-326 BUTTON, THRUST
    BUTTON, THRUST
  • 7
    0402-429 SHIM, 6.3X18X1.3
    SHIM, 6.3X18X1.3
  • 7
    0402-430 SHIM, 6.3X18X1.4
    SHIM, 6.3X18X1.4
  • 7
    0402-431 SHIM, 6.3X18X1.5
    SHIM, 6.3X18X1.5
  • 7
    0402-432 SHIM, 6.3X18X1.6
    SHIM, 6.3X18X1.6
  • 7
    0402-433 SHIM, 6.3X18X1.7
    SHIM, 6.3X18X1.7
  • 8
    0423-149 O-RING
    O-RING
  • 9
    1502-588 COVER, GEARCASE
    COVER, GEARCASE
  • 10
    0402-333 PLUG, FILL (INC. 11)
    PLUG, FILL (INC. 11)
  • 11
    0423-154 O-RING
    O-RING
  • 12
    1402-442 FITTING
    FITTING
  • 13
    0423-118 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 14
    1402-210 PLUG, MAGNETIC (INC. ONE NO. 15)
    PLUG, MAGNETIC (INC. ONE NO. 15)
  • 15
    0423-153 O-RING
    O-RING
  • 16
    0402-947 GASKET
    GASKET
  • 17
    0402-411 PIN, DOWEL
    PIN, DOWEL
  • 18
    0402-328 BEARING
    BEARING
  • 19
    0502-784 GEAR, PINION - ASSEMBLY - 11T (INC. 20-21)
    GEAR, PINION - ASSEMBLY - 11T (INC. 20-21)
  • 20
    0402-327 BEARING
    BEARING
  • 21
    0402-336 COLLAR, RETAINING
    COLLAR, RETAINING
  • 22
    0402-357 COLLAR, LOCK
    COLLAR, LOCK
  • 23
    0423-834 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 24
    1502-563 SHAFT, INPUT (INC. 25-32)
    SHAFT, INPUT (INC. 25-32)
  • 25
    1502-547 CARTRIDGE, CLUTCH - ASSEMBLY
    CARTRIDGE, CLUTCH - ASSEMBLY
  • 26
    0423-799 RING, RETAINING - EXTERNAL
    RING, RETAINING - EXTERNAL
  • 27
    1402-682 BASKET, CLUTCH
    BASKET, CLUTCH
  • 28
    0423-798 RING, RETAINING - INTERNAL
    RING, RETAINING - INTERNAL
  • 29
    1402-678 BEARING, FLANGE
    BEARING, FLANGE
  • 30
    1402-677 BEARING
    BEARING
  • 31
    1402-687 SEAL
    SEAL
  • 32
    1502-565 HOUSING, INPUT
    HOUSING, INPUT
