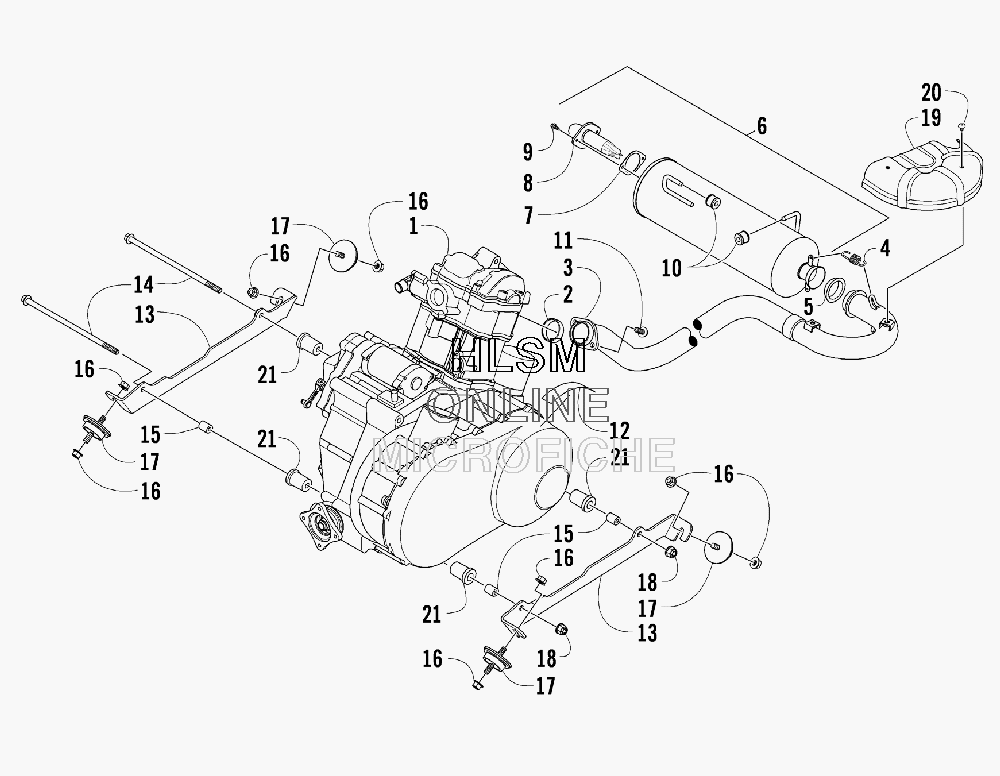

ENGINE AND EXHAUST для Arctic Cat PROWLER 550 - EURO (GREEN) [U2009P1O4BOSG] - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    0800-071 ENGINE, A550E
    ENGINE, A550E
  • 2
    0412-338 GASKET, EXHAUST PIPE
    GASKET, EXHAUST PIPE
  • 3
    0512-427 PIPE, EXHAUST-BLACK
    PIPE, EXHAUST-BLACK
  • 4
    0612-668 SPRING
    SPRING
  • 5
    0412-375 SEAL, EXHAUST
    SEAL, EXHAUST
  • 6
    0512-401 MUFFLER-BLACK - ASSEMBLY (INC. 7-9)
    MUFFLER-BLACK - ASSEMBLY (INC. 7-9)
  • 7
    0412-438 GASKET, SPARK ARRESTER
    GASKET, SPARK ARRESTER
  • 8
    0512-432 SPARK ARRESTER ASSEMBLY
    SPARK ARRESTER ASSEMBLY
  • 9
    8408-616 SCREW, CAP
    SCREW, CAP
  • 10
    0412-215 BUSHING
    BUSHING
  • 11
    8408-820 SCREW, CAP
    SCREW, CAP
  • 12
    0411-426 DECAL, WARNING - CLUTCH COVER
    DECAL, WARNING - CLUTCH COVER
  • 13
    1506-998 BRACKET-BLACK, ENGINE - RIGHT
    BRACKET-BLACK, ENGINE - RIGHT
  • 13
    1506-999 BRACKET-BLACK, ENGINE - LEFT
    BRACKET-BLACK, ENGINE - LEFT
  • 14
    0423-537 SCREW, CAP
    SCREW, CAP
  • 15
    0423-042 SPACER, ENGINE MOUNT
    SPACER, ENGINE MOUNT
  • 16
    8424-002 NUT
    NUT
  • 17
    0408-014 MOUNT, ENGINE
    MOUNT, ENGINE
  • 18
    8428-002 NUT, LOCK
    NUT, LOCK
  • 19
    0412-462 SHIELD, HEAT
    SHIELD, HEAT
  • 20
    8477-610 SCREW, MACH-TSTRH M6X1.0X10 Z & BLK
    SCREW, MACH-TSTRH M6X1.0X10 Z & BLK
  • 21
    0801-108 BUSHING, ENGINE MOUNT
    BUSHING, ENGINE MOUNT
