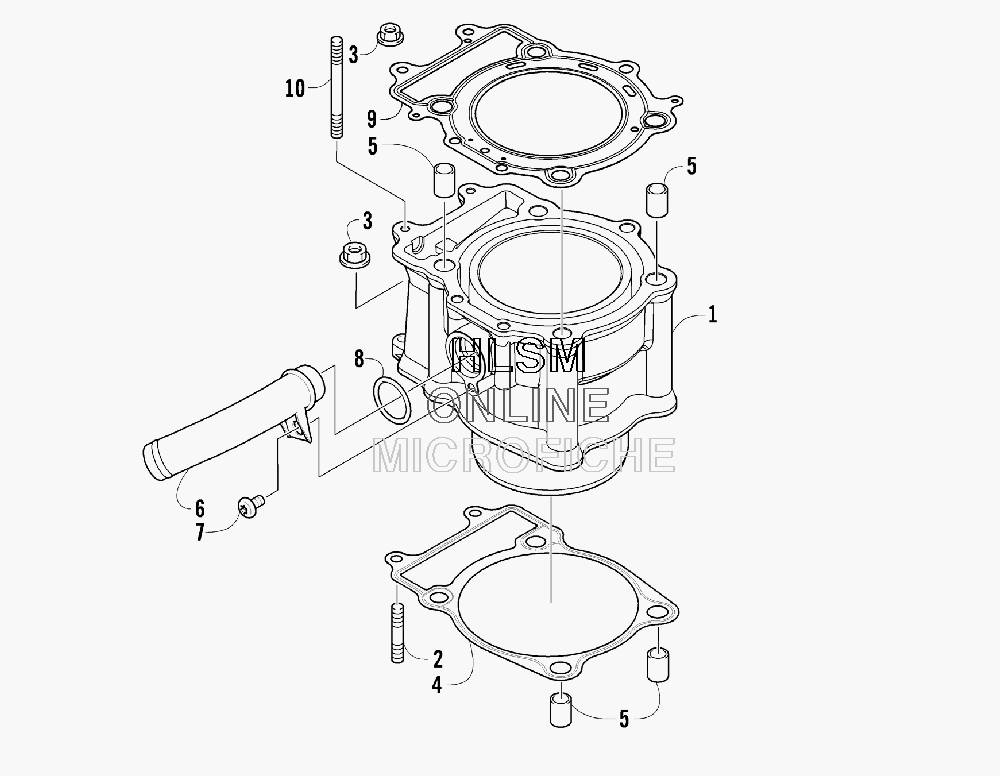

CYLINDER ASSEMBLY для Arctic Cat PROWLER 550 - EURO (GREEN) [U2009P1O4BOSG] - 2009 года выпуска
-
№АртикулНазвание
-
10804-019 CYLINDERCYLINDER
-
20827-002 BOLT, STUDBOLT, STUD
-
38424-604 NUT, HEX-FLG M6X1.0 CL8 RIE SILNUT, HEX-FLG M6X1.0 CL8 RIE SIL
-
40830-084 GASKET, BASEGASKET, BASE
-
50829-002 PIN, DOWELPIN, DOWEL
-
60804-047 UNION, COOLANT HOSEUNION, COOLANT HOSE
-
78468-612 SCREW, MACH-TSPNH M6X1.0X12 CL8.8 BLKSCREW, MACH-TSPNH M6X1.0X12 CL8.8 BLK
-
80830-007 O-RINGO-RING
-
90830-097 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
100827-030 BOLT, STUDBOLT, STUD
