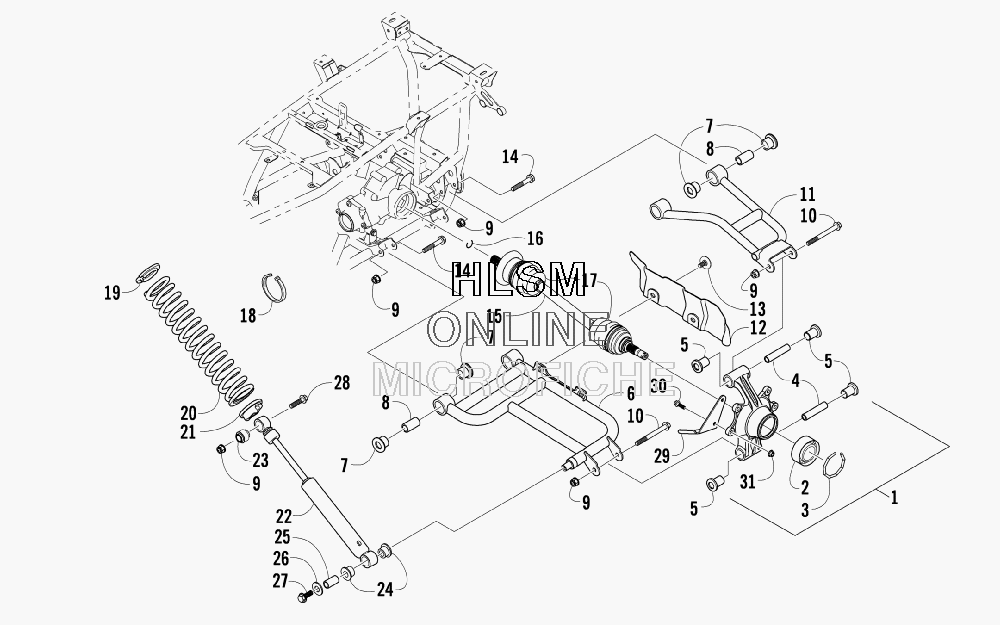

REAR SUSPENSION ASSEMBLY для Arctic Cat 700 MUD PRO (METALLIC CAT GREEN) [A2009IFT4EUSZ] - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    0504-548 KNUCKLE, REAR - ASSEMBLY (INC. 2-5)
    KNUCKLE, REAR - ASSEMBLY (INC. 2-5)
  • 2
    1402-809 ...BEARING
    ...BEARING
  • 3
    0423-423 ...RING, RETAINING
    ...RING, RETAINING
  • 4
    0403-038 ...AXLE
    ...AXLE
  • 5
    0403-032 ...BUSHING
    ...BUSHING
  • 6
    0504-524 A-ARM, REAR - LOWER RIGHT - BLACK (INC. 7-8)
    A-ARM, REAR - LOWER RIGHT - BLACK (INC. 7-8)
  • 6
    0504-525 A-ARM, REAR - LOWER LEFT - BLACK (INC. 7-8)
    A-ARM, REAR - LOWER LEFT - BLACK (INC. 7-8)
  • 7
    0403-115 ...BUSHING
    ...BUSHING
  • 8
    0403-114 ...AXLE
    ...AXLE
  • 9
    0423-744 NUT, LOCK
    NUT, LOCK
  • 10
    8409-000 SCREW, CAP
    SCREW, CAP
  • 11
    0504-510 A-ARM, REAR - UPPER RIGHT - BLACK (INC. 7-8)
    A-ARM, REAR - UPPER RIGHT - BLACK (INC. 7-8)
  • 11
    0504-511 A-ARM, REAR - UPPER LEFT - BLACK (INC. 7-8)
    A-ARM, REAR - UPPER LEFT - BLACK (INC. 7-8)
  • 12
    1406-068 GUARD, BOOT - REAR - RIGHT - BLACK
    GUARD, BOOT - REAR - RIGHT - BLACK
  • 12
    1406-069 GUARD, BOOT - REAR - LEFT - BLACK
    GUARD, BOOT - REAR - LEFT - BLACK
  • 13
    0423-545 SCREW, SHOULDER
    SCREW, SHOULDER
  • 14
    8409-075 SCREW, CAP
    SCREW, CAP
  • 15
    1502-343 AXLE, DRIVE (INC. 16-17)
    AXLE, DRIVE (INC. 16-17)
  • 16
    0423-845 ...CLIP, RETAINING
    ...CLIP, RETAINING
  • 17
    0436-276 ...REPAIR KIT, BOOT - REAR AXLE
    ...REPAIR KIT, BOOT - REAR AXLE
  • 18
    0123-788 TIE, CABLE - 8 IN.
    TIE, CABLE - 8 IN.
  • 19
    1603-889 RETAINER, SPRING
    RETAINER, SPRING
  • 20
    0404-171 SPRING, SUSPENSION - WHITE
    SPRING, SUSPENSION - WHITE
  • 21
    0404-057 CAM, SPRING ADJUSTER
    CAM, SPRING ADJUSTER
  • 22
    0404-150 SHOCK ABSORBER (INC. 23-25)
    SHOCK ABSORBER (INC. 23-25)
  • 23
    0403-182 ...BUSHING, DOUBLE-BONDED
    ...BUSHING, DOUBLE-BONDED
  • 24
    0603-955 ...BUSHING
    ...BUSHING
  • 25
    1603-219 ...SLEEVE
    ...SLEEVE
  • 26
    0423-087 WASHER
    WASHER
  • 27
    8408-820 SCREW, CAP-HFH M8X1.25X20 CL8.8 Z & Y
    SCREW, CAP-HFH M8X1.25X20 CL8.8 Z & Y
  • 28
    8409-040 SCREW, CAP-HFH M10X1.25X40 CL10.9 Z & Y
    SCREW, CAP-HFH M10X1.25X40 CL10.9 Z & Y
  • 28
    8409-050 SCREW, CAP-HFH M10X1.25X50 CL10.9 Z & Y
    SCREW, CAP-HFH M10X1.25X50 CL10.9 Z & Y
  • 29
    2416-074 SCRAPER, WHEEL - RIGHT
    SCRAPER, WHEEL - RIGHT
  • 29
    2416-075 SCRAPER, WHEEL - LEFT
    SCRAPER, WHEEL - LEFT
  • 30
    8408-826 SCREW, CAP-HFH M8X1.25X25 CL8.8 W/2353
    SCREW, CAP-HFH M8X1.25X25 CL8.8 W/2353
  • 31
    8424-802 NUT
    NUT
