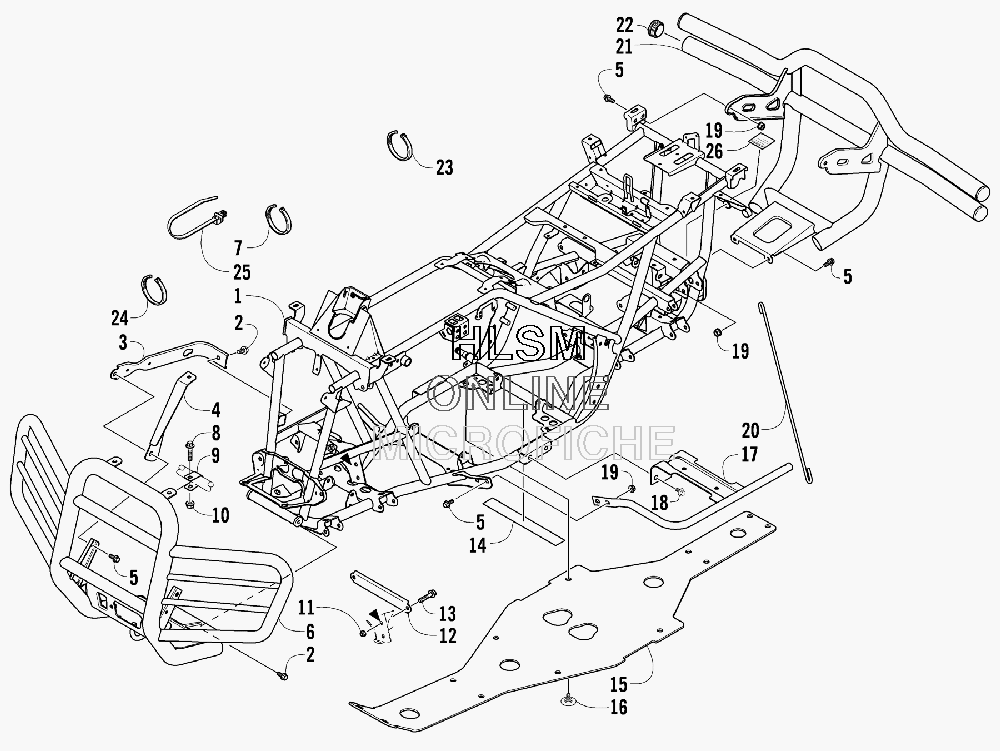

FRAME AND RELATED PARTS для Arctic Cat 700 MUD PRO (METALLIC CAT GREEN) [A2009IFT4EUSZ] - 2009 года выпуска
-
№АртикулНазвание
-
12506-541 FRAME, MAINFRAME, MAIN
-
28409-020 SCREW, CAPSCREW, CAP
-
31506-596 CHANNEL-BLACK, BUMPER MOUNTING - RIGHTCHANNEL-BLACK, BUMPER MOUNTING - RIGHT
-
30506-653 CHANNEL-BLACK, BUMPER MOUNTING - LEFTCHANNEL-BLACK, BUMPER MOUNTING - LEFT
-
41506-562 BRACKET-BLACK, MOUNTING - BUMPER - RIGHTBRACKET-BLACK, MOUNTING - BUMPER - RIGHT
-
41506-563 BRACKET-BLACK, MOUNTING - BUMPER - LEFTBRACKET-BLACK, MOUNTING - BUMPER - LEFT
-
58408-816 SCREW, CAPSCREW, CAP
-
62506-639 BUMPER, FRONTBUMPER, FRONT
-
70623-751 TIE, CABLETIE, CABLE
-
88410-835 SCREW, CAP-HFH M8X1.25X35 CL8.8 RIE BLKSCREW, CAP-HFH M8X1.25X35 CL8.8 RIE BLK
-
92506-641 STRAP-BLACK, SUPPORTSTRAP-BLACK, SUPPORT
-
108424-805 NUT, HEX FLG-M8X1.25 CL8 RIE BLKNUT, HEX FLG-M8X1.25 CL8 RIE BLK
-
110423-744 NUT, LOCKNUT, LOCK
-
121506-429 BRACE, A-ARM - PTD BLACKBRACE, A-ARM - PTD BLACK
-
138409-025 SCREW, CAPSCREW, CAP
-
140406-289 PAD, FRAMEPAD, FRAME
-
151406-030 PANEL, BELLYPANEL, BELLY
-
160423-101 SCREW, SHOULDERSCREW, SHOULDER
-
171506-380 FOOTREST-BLACK - RIGHTFOOTREST-BLACK - RIGHT
-
171506-379 FOOTREST-BLACK - LEFTFOOTREST-BLACK - LEFT
-
188409-016 SCREW, CAPSCREW, CAP
-
198424-802 NUTNUT
-
202506-423 ROD, SUPPORT-BLACKROD, SUPPORT-BLACK
-
211506-615 BUMPER-BLACK, REAR (INC. 22)BUMPER-BLACK, REAR (INC. 22)
-
220406-130 ...PLUG...PLUG
-
230123-903 TIE, CABLE - 11.5 IN.TIE, CABLE - 11.5 IN.
-
240123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
250423-075 TIE, CABLE - PUSH-MOUNTTIE, CABLE - PUSH-MOUNT
-
261411-077 DECAL, WARNING - TOWING (1050 LB)DECAL, WARNING - TOWING (1050 LB)
