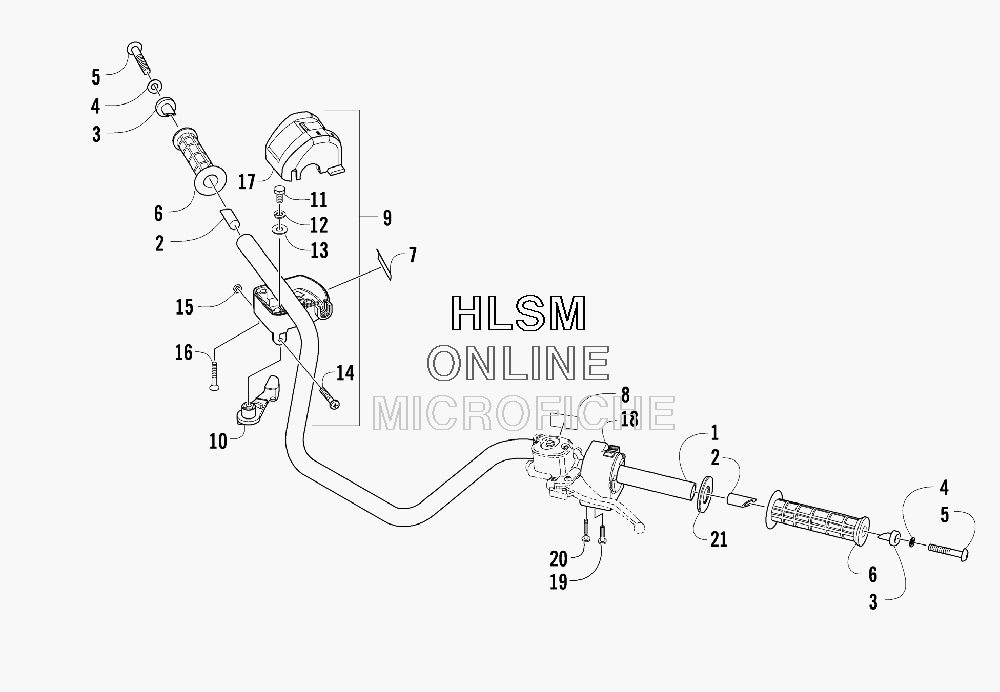

HANDLEBAR ASSEMBLY для Arctic Cat 500 H1 TRV (RED) [A2009TBO4EUSR] - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    0505-418 HANDLE BAR-BLACK
    HANDLE BAR-BLACK
  • 2
    0405-218 PLUG, HANDLEBAR
    PLUG, HANDLEBAR
  • 3
    0405-149 END CAP, HANDLEBAR
    END CAP, HANDLEBAR
  • 4
    8050-247 WASHER
    WASHER
  • 5
    8477-845 SCREW ,MACH-TSTRH M8X1.25X45 Z & BLK
    SCREW ,MACH-TSTRH M8X1.25X45 Z & BLK
  • 6
    0405-147 GRIP, HANDLEBAR
    GRIP, HANDLEBAR
  • 7
    0411-966 DECAL, WARNING - DIFFERENTIAL LOCK
    DECAL, WARNING - DIFFERENTIAL LOCK
  • 8
    1411-865 DECAL, WARNING - BRAKE LEVER LOCK
    DECAL, WARNING - BRAKE LEVER LOCK
  • 9
    0509-045 CASE, THROTTLE - ASSEMBLY (INC. 10-17)
    CASE, THROTTLE - ASSEMBLY (INC. 10-17)
  • 10
    3409-001 ...LEVER
    ...LEVER
  • 11
    3004-533 ...SCREW, CAP
    ...SCREW, CAP
  • 12
    3004-447 ...WASHER, LOCK
    ...WASHER, LOCK
  • 13
    3003-030 ...WASHER
    ...WASHER
  • 14
    3423-014 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 15
    3423-327 ...NUT
    ...NUT
  • 16
    3423-199 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 17
    0409-119 ...COVER, THROTTLE CASE W/SWITCH
    ...COVER, THROTTLE CASE W/SWITCH
  • 18
    0509-014 SWITCH, CONTROL - ASSEMBLY (INC. 19-20)
    SWITCH, CONTROL - ASSEMBLY (INC. 19-20)
  • 19
    0409-027 ...SCREW, SWITCH CONTROL - 5X35-6ZK
    ...SCREW, SWITCH CONTROL - 5X35-6ZK
  • 20
    0409-028 ...SCREW, SWITCH CONTROL - 5X45-6ZK
    ...SCREW, SWITCH CONTROL - 5X45-6ZK
  • 21
    3409-019 COVER, SWITCH HOUSING
    COVER, SWITCH HOUSING
