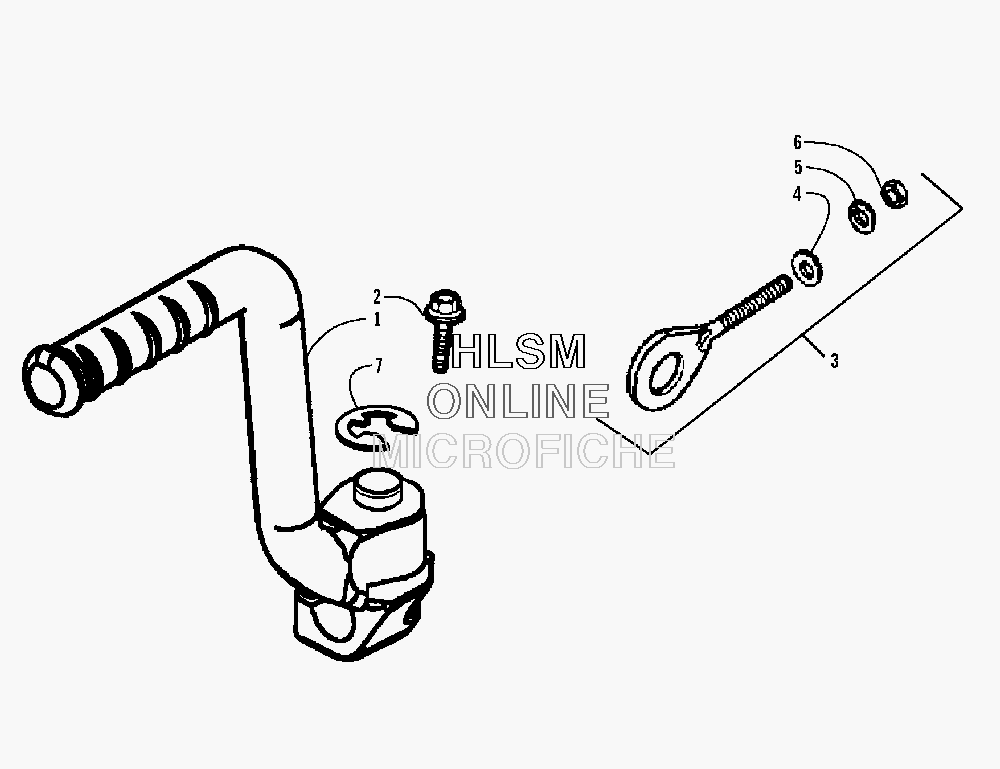

KICK STARTER ASSEMBLY для Arctic Cat DVX 90 (BLACK/RED) CALF. [A2008KSB2BCAD] - 2008 года выпуска
-
№АртикулНазвание
-
13303-123 ARM, KICK STARTER - ASSEMBLYARM, KICK STARTER - ASSEMBLY
-
23304-551 BOLT, FLANGE 6*22BOLT, FLANGE 6*22
-
33303-147 ADJUSTER, DRIVE TRAIN - ASSEMBLY (INC. 4-6)ADJUSTER, DRIVE TRAIN - ASSEMBLY (INC. 4-6)
-
43304-135 ...WASHER PLAIN 8MM...WASHER PLAIN 8MM
-
53303-607 ...WASHER SPRING 8MM...WASHER SPRING 8MM
-
63304-125 ...NUT HEX 8MM...NUT HEX 8MM
-
73305-247 E-CLIP 10MME-CLIP 10MM
