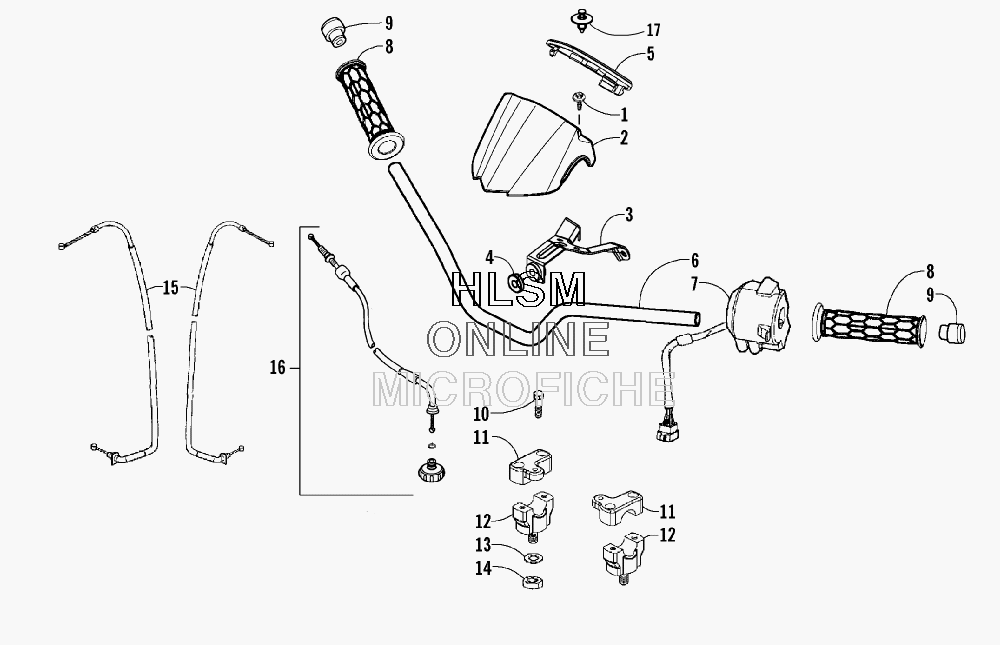

HANDLEBAR AND CONTROL ASSEMBLY для Arctic Cat DVX 90 (BLACK/RED) CALF. [A2008KSB2BCAD] - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    3304-553 BOLT W/WASHER 6*12
    BOLT W/WASHER 6*12
  • 2
    3303-436 COVER, HANDLEBAR - (BLACK)
    COVER, HANDLEBAR - (BLACK)
  • 2
    3305-604 COVER, HANDLEBAR - (PINK)
    COVER, HANDLEBAR - (PINK)
  • 3
    3303-435 BRACKET, HANDLEBAR COVER (INC. 4)
    BRACKET, HANDLEBAR COVER (INC. 4)
  • 4
    3303-239 ...GROMMET
    ...GROMMET
  • 5
    3305-515 LID, HANDLEBAR COVER
    LID, HANDLEBAR COVER
  • 6
    3303-434 HANDLEBAR
    HANDLEBAR
  • 7
    3305-516 SWITCH ASSY LH HANDLE COMP
    SWITCH ASSY LH HANDLE COMP
  • 8
    3303-203 GRIP, HANDLEBAR
    GRIP, HANDLEBAR
  • 9
    3303-196 END CAP, HANDLEBAR
    END CAP, HANDLEBAR
  • 10
    3303-398 BOLT 6*25
    BOLT 6*25
  • 11
    3303-197 HOLDER, HANDLEBAR - UPPER - RIGHT
    HOLDER, HANDLEBAR - UPPER - RIGHT
  • 11
    3303-198 HOLDER, HANDLEBAR - UPPER - LEFT
    HOLDER, HANDLEBAR - UPPER - LEFT
  • 12
    3303-199 HOLDER, HANDLEBAR - LOWER
    HOLDER, HANDLEBAR - LOWER
  • 13
    3304-136 WASHER PLAIN 10MM
    WASHER PLAIN 10MM
  • 14
    3305-517 NUT, HEX 10MM
    NUT, HEX 10MM
  • 15
    3303-173 CABLE, BRAKE - FRONT
    CABLE, BRAKE - FRONT
  • 16
    1502-096 THROTTLE CABLE/CAP-ASSEMBLY
    THROTTLE CABLE/CAP-ASSEMBLY
  • 17
    3303-592 CLIP MUDGUARD
    CLIP MUDGUARD
