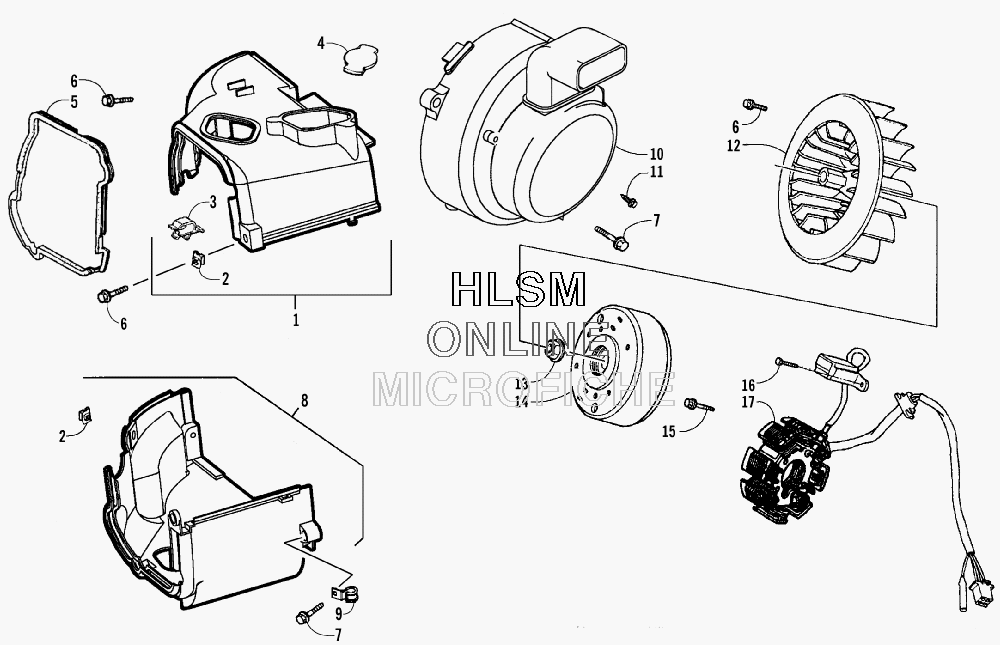

STATOR- FLYWHEEL- AND ENGINE SHROUD ASSEMBLIES для Arctic Cat DVX 90 (BLACK/CAT GREEN) EXCEPT CALIF. [A2008KSB2BUSE] - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    3303-079 SHROUD B - ASSEMBLY (INC. ONE NO. 2 AND 3-4)
    SHROUD B - ASSEMBLY (INC. ONE NO. 2 AND 3-4)
  • 2
    3303-267 ...NUT, CLIP 6MM **0000 C.97.07.26.
    ...NUT, CLIP 6MM **0000 C.97.07.26.
  • 3
    3303-640 ...CLIP, VACUUM TUBE
    ...CLIP, VACUUM TUBE
  • 4
    3303-408 ...GROMMET, SHROUD
    ...GROMMET, SHROUD
  • 5
    3303-077 SEAL, SHROUD
    SEAL, SHROUD
  • 6
    3303-382 BOLT, FLANGE 6*16MM
    BOLT, FLANGE 6*16MM
  • 7
    3303-384 BOLT, FLANGE 6*25
    BOLT, FLANGE 6*25
  • 8
    3303-078 SHROUD A - ASSEMBLY (INC. ONE NO. 2)
    SHROUD A - ASSEMBLY (INC. ONE NO. 2)
  • 9
    3304-640 CLAMP, CARBURETOR DRAIN TUBE
    CLAMP, CARBURETOR DRAIN TUBE
  • 10
    3303-076 COVER, FAN - ASSEMBLY
    COVER, FAN - ASSEMBLY
  • 11
    3304-585 SCREW, SELF-TAPPING 5X16
    SCREW, SELF-TAPPING 5X16
  • 12
    3303-075 FAN, COOLING
    FAN, COOLING
  • 13
    3303-333 NUT, FLANGE 10MM
    NUT, FLANGE 10MM
  • 14
    3303-127 FLYWHEEL (A) - D402
    FLYWHEEL (A) - D402
  • 14
    3303-414 FLYWHEEL (B) - D406
    FLYWHEEL (B) - D406
  • 14
    3303-415 FLYWHEEL (C) - D414
    FLYWHEEL (C) - D414
  • 15
    3303-383 BOLT, FLANGE 6*20
    BOLT, FLANGE 6*20
  • 16
    3303-308 BOLT 5*12
    BOLT 5*12
  • 17
    3304-641 STATOR - ASSEMBLY (O) - D402
    STATOR - ASSEMBLY (O) - D402
  • 17
    3305-254 STATOR - ASSEMBLY (A) - D406
    STATOR - ASSEMBLY (A) - D406
  • 17
    3305-256 STATOR - ASSEMBLY (B) - D414
    STATOR - ASSEMBLY (B) - D414
