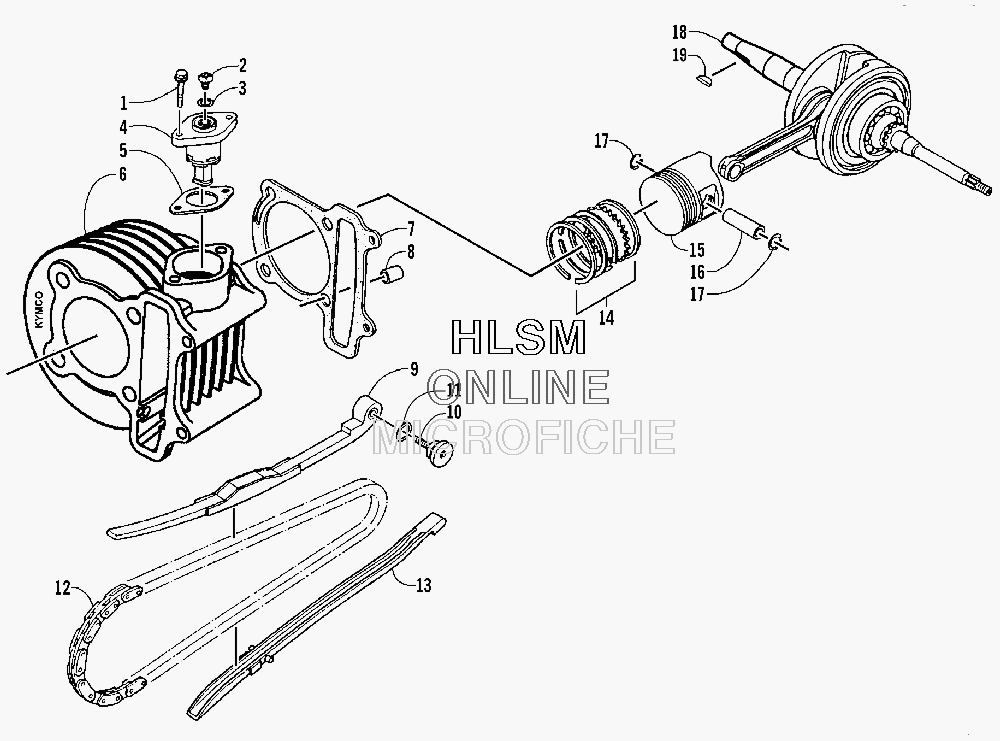

CRANKSHAFT- CYLINDER- PISTON- AND CAM CHAIN ASSEMBLIES для Arctic Cat DVX 90 (BLACK/CAT GREEN) EXCEPT CALIF. [A2008KSB2BUSE] - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    3304-002 BOLT FLANGE SHF 6*22
    BOLT FLANGE SHF 6*22
  • 2
    3303-244 SCREW PAN 6*6 **9000 C.97.07.26.
    SCREW PAN 6*6 **9000 C.97.07.26.
  • 3
    3304-100 O-RING 1.5*9.5
    O-RING 1.5*9.5
  • 4
    3303-677 ADJUSTER, CAM CHAIN
    ADJUSTER, CAM CHAIN
  • 5
    3303-035 GASKET, CAM CHAIN ADJUSTER
    GASKET, CAM CHAIN ADJUSTER
  • 6
    3303-014 CYLINDER A
    CYLINDER A
  • 7
    3303-015 GASKET, CYLINDER A
    GASKET, CYLINDER A
  • 8
    3303-342 PIN DOWEL 10*16
    PIN DOWEL 10*16
  • 9
    3303-034 TENSIONER CAM CHAIN **(0) C.2000.11.13
    TENSIONER CAM CHAIN **(0) C.2000.11.13
  • 10
    3303-036 PIVOT, CAM CHAIN TENSIONER
    PIVOT, CAM CHAIN TENSIONER
  • 11
    3303-301 O-RING 15.2*1.5 **0030 C.97.07.26.
    O-RING 15.2*1.5 **0030 C.97.07.26.
  • 12
    3303-030 CAM CHAIN
    CAM CHAIN
  • 13
    3303-037 GUIDE, CAM CHAIN
    GUIDE, CAM CHAIN
  • 14
    3303-024 RING, PISTON - SET
    RING, PISTON - SET
  • 15
    3303-025 PISTON
    PISTON
  • 16
    3303-026 PIN, PISTON
    PIN, PISTON
  • 17
    3303-027 CLIP PISTON PIN **0000 C.97.09.18.
    CLIP PISTON PIN **0000 C.97.09.18.
  • 18
    3305-443 CRANKSHAFT COMP
    CRANKSHAFT COMP
  • 19
    3303-290 KEY WOODRUFF **0000-M1 C.99.07.07.
    KEY WOODRUFF **0000-M1 C.99.07.07.
