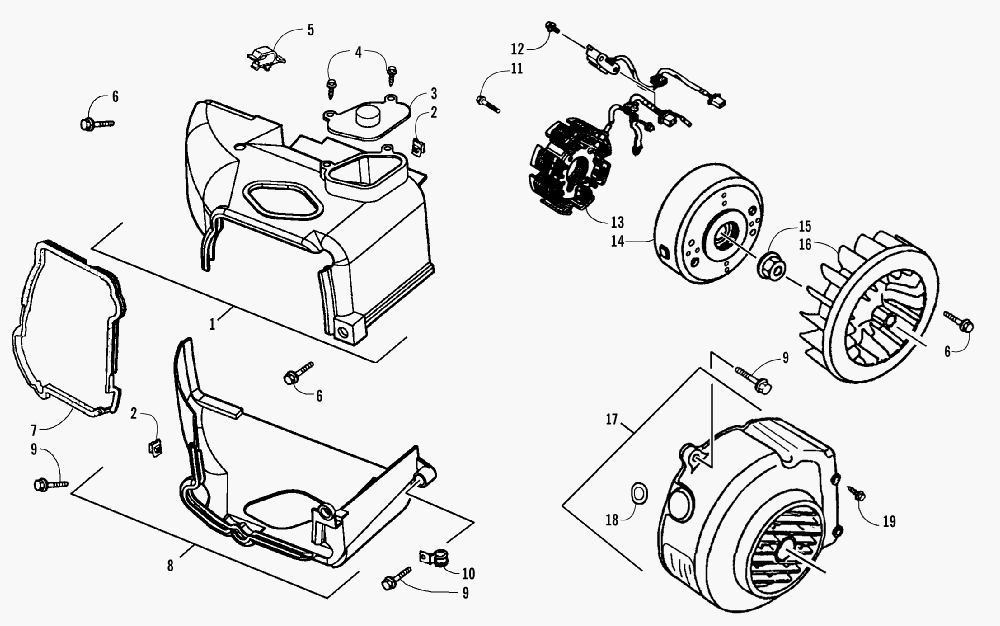

STATOR- FLYWHEEL- AND ENGINE SHROUD ASSEMBLIES для Arctic Cat DVX 50 (PINK) [A2008KSA2BUST] - 2008 года выпуска`
-
№АртикулНазвание
-
13303-520 SHROUD B - ASSEMBLY (INC. ONE NO. 2 AND 3-5)SHROUD B - ASSEMBLY (INC. ONE NO. 2 AND 3-5)
-
23303-267 ...NUT, CLIP...NUT, CLIP
-
33303-519 ...BOX, TENSIONER LIFTER...BOX, TENSIONER LIFTER
-
43303-605 ...SCREW, SELF-TAPPING...SCREW, SELF-TAPPING
-
53303-443 ...CLIP, VACUUM TUBE...CLIP, VACUUM TUBE
-
63303-382 BOLT, FLANGEBOLT, FLANGE
-
73305-583 SEAL, SHROUDSEAL, SHROUD
-
83305-584 SHROUD A - ASSEMBLY (INC. ONE NO. 2)SHROUD A - ASSEMBLY (INC. ONE NO. 2)
-
93303-384 BOLT, FLANGEBOLT, FLANGE
-
103304-640 CLAMP, CARBURETOR DRAIN TUBECLAMP, CARBURETOR DRAIN TUBE
-
113303-619 BOLT, FLANGEBOLT, FLANGE
-
123303-308 BOLTBOLT
-
133305-300 STATOR - ASSEMBLY (A) - D402STATOR - ASSEMBLY (A) - D402
-
133303-554 STATOR - ASSEMBLY (B) - D406STATOR - ASSEMBLY (B) - D406
-
133303-555 STATOR - ASSEMBLY (C) - D414STATOR - ASSEMBLY (C) - D414
-
143303-551 FLYWHEEL (A) - D402FLYWHEEL (A) - D402
-
143303-552 FLYWHEEL (B) - D406FLYWHEEL (B) - D406
-
143303-553 FLYWHEEL (C) - D414FLYWHEEL (C) - D414
-
153303-333 NUT, FLANGENUT, FLANGE
-
163303-515 FAN, COOLINGFAN, COOLING
-
173303-516 COVER, FAN - ASSEMBLY (INC. 18)COVER, FAN - ASSEMBLY (INC. 18)
-
183303-620 ...GROMMET...GROMMET
-
193304-585 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
