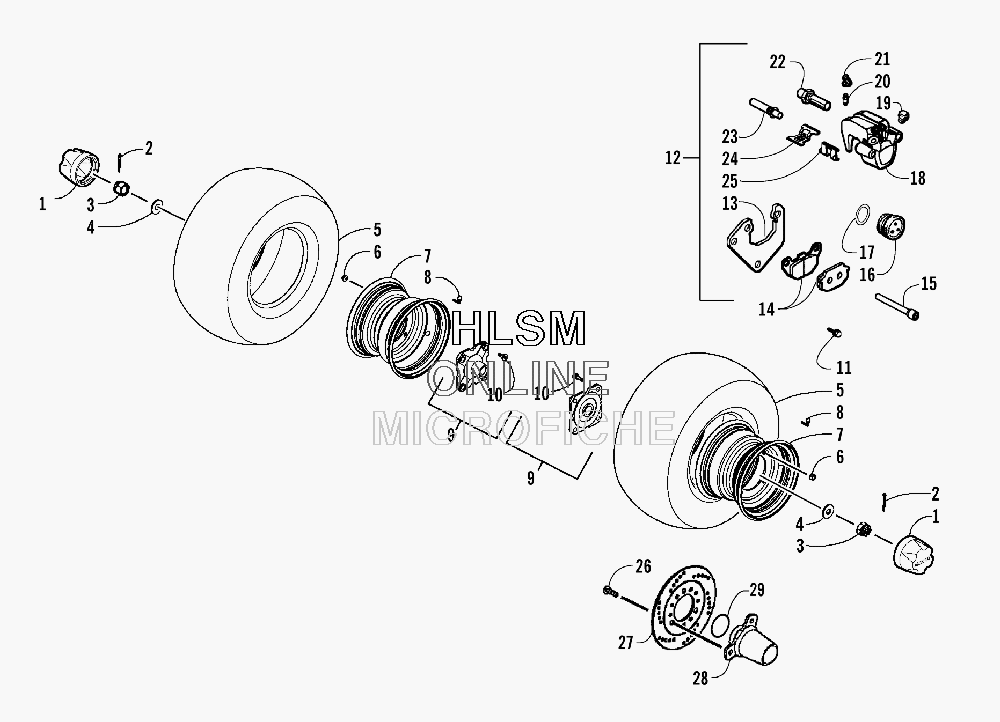

REAR WHEEL AND BRAKE ASSEMBLIES для Arctic Cat DVX 50 (PINK) [A2008KSA2BUST] - 2008 года выпуска
-
№АртикулНазвание
-
13303-430 CAP, WHEEL SHAFTCAP, WHEEL SHAFT
-
23303-340 PIN, COTTERPIN, COTTER
-
33303-330 NUT, FLANGE CASTLENUT, FLANGE CASTLE
-
43305-285 WASHERWASHER
-
53303-569 TIRE - ASSEMBLYTIRE - ASSEMBLY
-
63303-266 NUT, FLANGENUT, FLANGE
-
73304-524 WHEEL - ASSEMBLY (INC. 8)WHEEL - ASSEMBLY (INC. 8)
-
83304-562 ...STEM, VALVE W/CAP...STEM, VALVE W/CAP
-
93303-157 CONNECTOR - ASSEMBLY (INC. 10)CONNECTOR - ASSEMBLY (INC. 10)
-
103303-250 ...BOLT, CONNECTOR...BOLT, CONNECTOR
-
113303-256 BOLT, FLANGEBOLT, FLANGE
-
123305-449 CALIPER, REAR - ASSEMBLY (INC. 13-25)CALIPER, REAR - ASSEMBLY (INC. 13-25)
-
133303-469 ...BRACKET...BRACKET
-
143304-567 ...PAD, BRAKE - ASSEMBLY...PAD, BRAKE - ASSEMBLY
-
153304-566 ...PIN, BOLT...PIN, BOLT
-
163304-592 ...PISTON...PISTON
-
173304-327 ...SEAL, PISTON...SEAL, PISTON
-
193304-333 ...PLUG...PLUG
-
203304-302 ...VALVE, BLEED...VALVE, BLEED
-
213304-303 ...CAP, BLEED VALVE...CAP, BLEED VALVE
-
223304-589 ...BUSHING, PIN BOLT...BUSHING, PIN BOLT
-
233304-590 ...BOOT...BOOT
-
243304-591 ...SPRING, BRAKE PAD...SPRING, BRAKE PAD
-
253304-316 ...SEAL, DUST...SEAL, DUST
-
263303-253 BOLT, DISCBOLT, DISC
-
273303-162 DISC, BRAKE - REARDISC, BRAKE - REAR
-
283305-249 COLLAR, HUB - REARCOLLAR, HUB - REAR
-
293305-298 O-RINGO-RING
