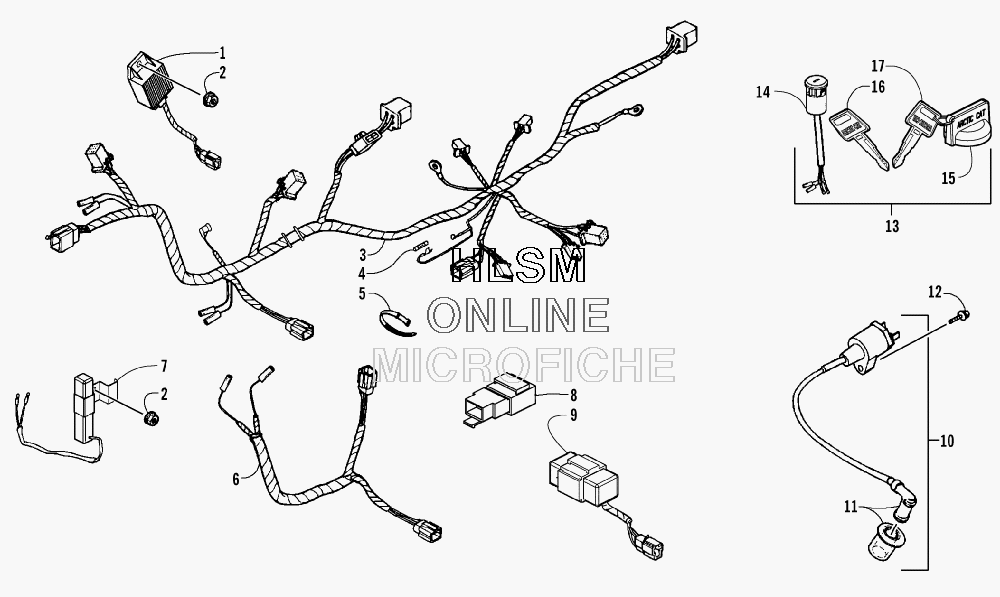

ELECTRICAL AND WIRING HARNESS ASSEMBLY для Arctic Cat DVX 50 (PINK) [A2008KSA2BUST] - 2008 года выпуска`
-
№АртикулНазвание
-
13303-132 REGULATOR, VOLTAGEREGULATOR, VOLTAGE
-
23303-331 NUT, FLANGENUT, FLANGE
-
33305-531 HARNESS, MAIN (INC. 4)HARNESS, MAIN (INC. 4)
-
43303-399 ...FUSE...FUSE
-
53303-289 CABLE TIECABLE TIE
-
63303-134 SUB-CORDSUB-CORD
-
73303-142 RESISTORRESISTOR
-
83303-565 RELAY, STARTERRELAY, STARTER
-
93305-493 CDI ASSEMBLYCDI ASSEMBLY
-
103303-125 COIL ASSEMBLY - IGNITION (INC. 11)COIL ASSEMBLY - IGNITION (INC. 11)
-
113303-126 ...CAP, NOISE SUPPRESSOR - ASSEMBLY...CAP, NOISE SUPPRESSOR - ASSEMBLY
-
123303-252 BOLT, FLANGEBOLT, FLANGE
-
133305-519 SWITCH, IGNITION - ASSEMBLY (INC. 14-17)SWITCH, IGNITION - ASSEMBLY (INC. 14-17)
-
153304-522 ...COVER, KEY - "ARCTIC CAT"...COVER, KEY - "ARCTIC CAT"
-
163304-520 ...KEY, IGNITION - SET - RIGHT-SIDE CUT...KEY, IGNITION - SET - RIGHT-SIDE CUT
-
173304-521 ...KEY, IGNITION - SET - LEFT-SIDE CUT...KEY, IGNITION - SET - LEFT-SIDE CUT
