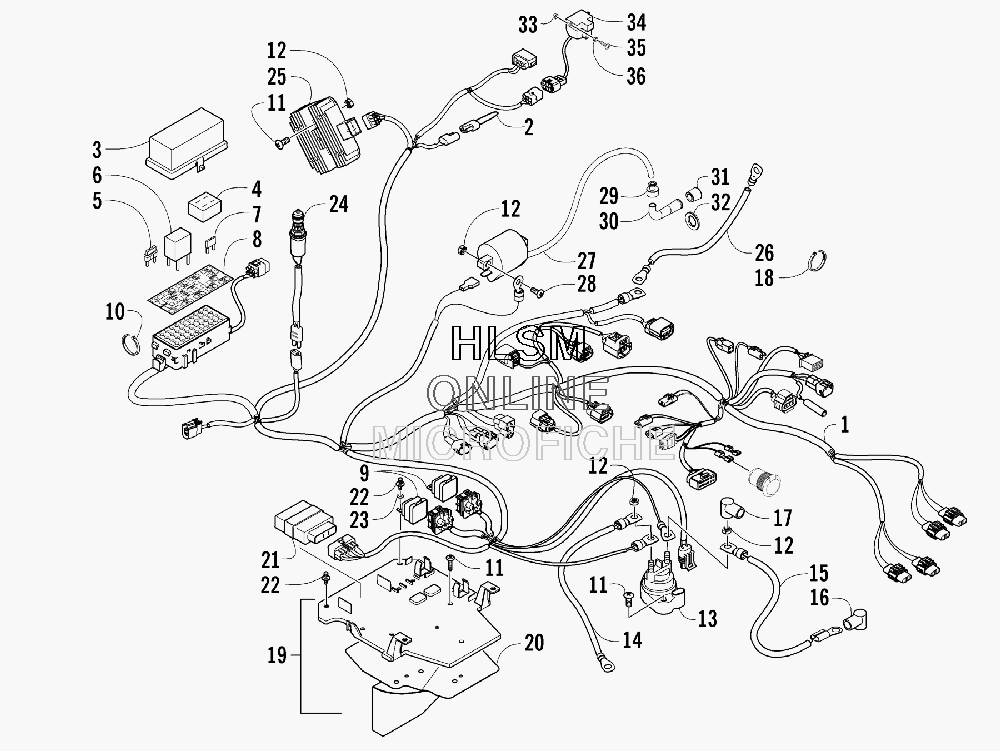

WIRING HARNESS ASSEMBLY для Arctic Cat 700 EFI TRV LE (BLACK) [A2008TBT4CUSQ] - 2008 года выпуска
-
№АртикулНазвание
-
10486-262 HARNESS, MAIN (INC. 2-9)HARNESS, MAIN (INC. 2-9)
-
20486-164 ...TETHER, ACCESSORY CONNECTOR...TETHER, ACCESSORY CONNECTOR
-
30530-008 ...COVER, FUSE BLOCK...COVER, FUSE BLOCK
-
40430-037 ...HOLDER, FUSE...HOLDER, FUSE
-
50430-034 ...DIODE...DIODE
-
60430-045 ...RELAY - 20 AMP (4-PIN)...RELAY - 20 AMP (4-PIN)
-
70430-032 ...FUSE - 10 AMP...FUSE - 10 AMP
-
70430-031 ...FUSE - 15 AMP...FUSE - 15 AMP
-
70430-030 ...FUSE - 30 AMP...FUSE - 30 AMP
-
81411-673 ...DECAL, FUSE BLOCK...DECAL, FUSE BLOCK
-
90430-052 ...RELAY - 30 AMP...RELAY - 30 AMP
-
100123-788 CABLE TIE - 7.5 IN.CABLE TIE - 7.5 IN.
-
118476-625 SCREW, MACHINESCREW, MACHINE
-
120623-038 NUT W/WASHERNUT W/WASHER
-
130445-058 SOLENOIDSOLENOID
-
140445-062 CABLE, BATTERY/SOLENOIDCABLE, BATTERY/SOLENOID
-
150445-064 CABLE, SOLENOID/STARTER (INC. 16)CABLE, SOLENOID/STARTER (INC. 16)
-
160645-019 ...BOOT, TERMINAL...BOOT, TERMINAL
-
170645-327 BOOT, TERMINALBOOT, TERMINAL
-
180123-903 CABLE TIE - 11.5 IN.CABLE TIE - 11.5 IN.
-
192506-759 TRAY, ELECTRICAL (INC. 20 AND THREE NO. 11)TRAY, ELECTRICAL (INC. 20 AND THREE NO. 11)
-
202506-760 ...SHIELD, HEAT - ASSEMBLY...SHIELD, HEAT - ASSEMBLY
-
213430-063 ELECTRONIC CONTROL MODULEELECTRONIC CONTROL MODULE
-
220623-362 RIVET, REINSTALLABLERIVET, REINSTALLABLE
-
238050-217 WASHERWASHER
-
240409-089 SWITCH, BRAKE - ASSEMBLYSWITCH, BRAKE - ASSEMBLY
-
250824-037 REGULATOR, VOLTAGEREGULATOR, VOLTAGE
-
260445-065 CABLE, BATTERY/GROUNDCABLE, BATTERY/GROUND
-
273530-053 COIL, IGNITION - ASSEMBLYCOIL, IGNITION - ASSEMBLY
-
288476-620 SCREW, MACHINESCREW, MACHINE
-
293430-009 SEAL, HIGH TENSION WIRESEAL, HIGH TENSION WIRE
-
303530-054 CAP, SPARK PLUGCAP, SPARK PLUG
-
313409-031 COVER, SPARK PLUG CAPCOVER, SPARK PLUG CAP
-
323409-030 SEAL, SPARK PLUG CAPSEAL, SPARK PLUG CAP
-
330423-493 NUT, HEXNUT, HEX
-
340409-064 SWITCH, INVERT SENSORSWITCH, INVERT SENSOR
-
358468-425 SCREW, MACHINESCREW, MACHINE
-
360123-802 WASHERWASHER
-
*0644-347 WRENCH, SPARK PLUG (NOT ILLUSTRATED)WRENCH, SPARK PLUG (NOT ILLUSTRATED)
