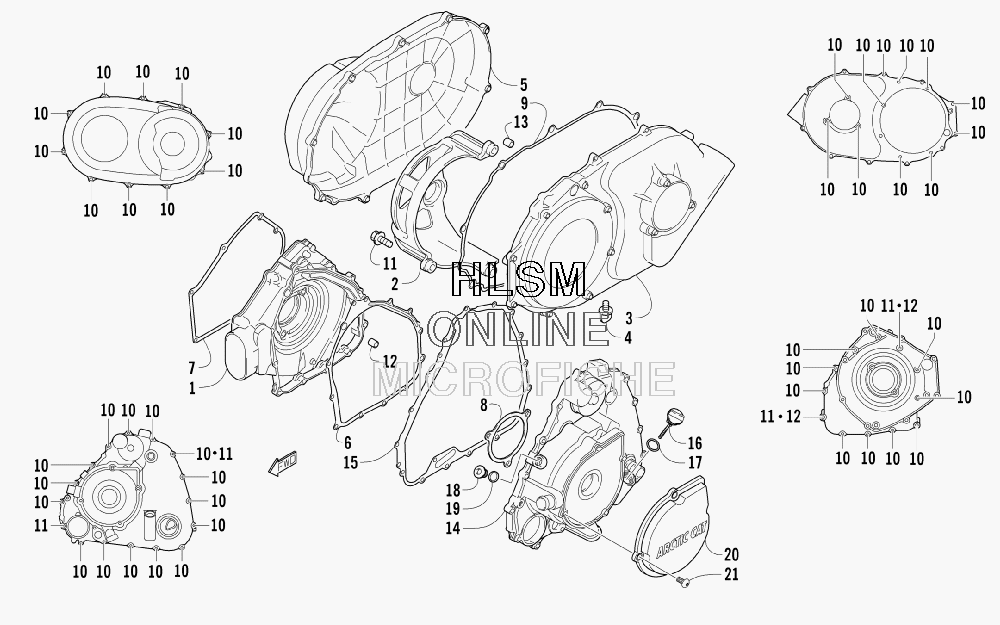

CLUTCH/V-BELT/MAGNETO COVER ASSEMBLY для Arctic Cat 700 EFI TRV LE (BLACK) [A2008TBT4CUSQ] - 2008 года выпуска`
-
№АртикулНазвание
-
13403-066 COVER, CLUTCHCOVER, CLUTCH
-
23403-067 HOUSING, V-BELT BEARINGHOUSING, V-BELT BEARING
-
33403-068 COVER, V-BELT - INNERCOVER, V-BELT - INNER
-
43423-800 PLUGPLUG
-
53403-069 COVER, V-BELT - OUTERCOVER, V-BELT - OUTER
-
63403-070 GASKET, CLUTCH COVERGASKET, CLUTCH COVER
-
73403-071 GASKET, V-BELT COVER - INNER - REARGASKET, V-BELT COVER - INNER - REAR
-
83403-072 GASKET, V-BELT COVER - INNER - FRONTGASKET, V-BELT COVER - INNER - FRONT
-
93403-073 GASKET, V-BELT COVER - OUTERGASKET, V-BELT COVER - OUTER
-
103007-369 BOLTBOLT
-
110693-327 BOLTBOLT
-
123004-822 PINPIN
-
133423-610 PINPIN
-
143403-074 COVER, MAGNETOCOVER, MAGNETO
-
153403-075 GASKET, MAGNETO COVERGASKET, MAGNETO COVER
-
163402-438 GAUGE, OIL LEVELGAUGE, OIL LEVEL
-
173423-055 O-RINGO-RING
-
183402-040 PLUG, CHECKPLUG, CHECK
-
193403-200 GASKET, CHECK PLUGGASKET, CHECK PLUG
-
200820-062 COVER, MAGNETO - OUTERCOVER, MAGNETO - OUTER
-
210826-008 SCREW, MACHINESCREW, MACHINE
