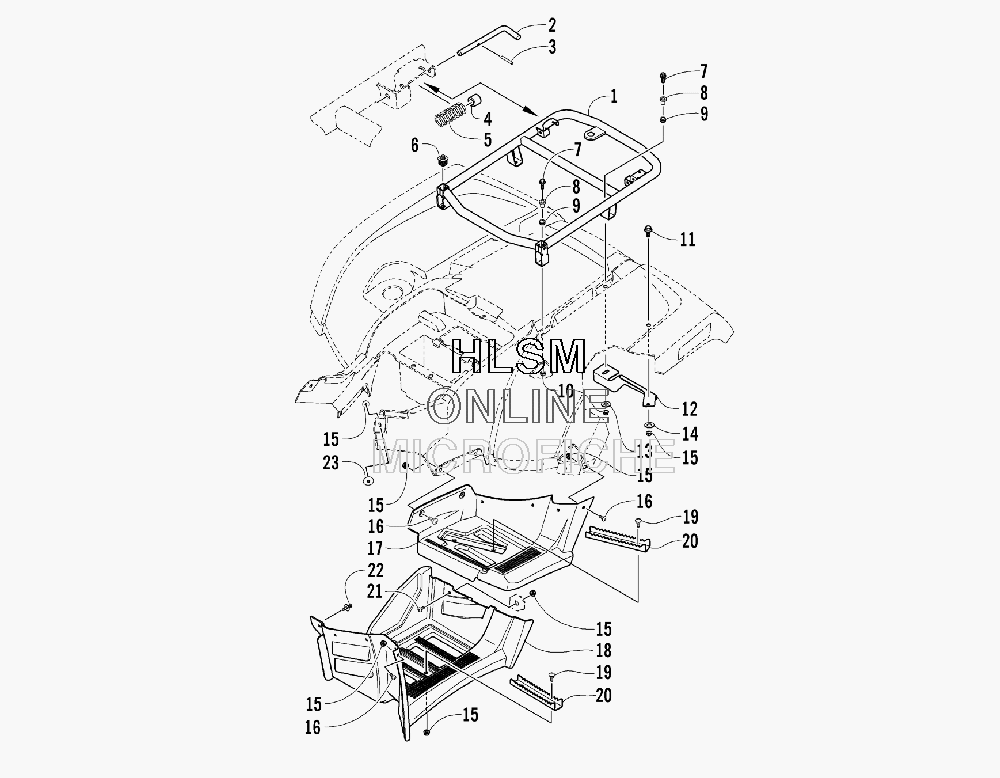

REAR RACK AND FOOTWELL ASSEMBLIES для Arctic Cat 650 H1 TRV (RED) [A2008TBS4BUSR] - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    2506-221 RACK, REAR - ASSEMBLY (INC. 2-6)
    RACK, REAR - ASSEMBLY (INC. 2-6)
  • 2
    0541-504 ...PIN - ASSEMBLY (INC. 3-5)
    ...PIN - ASSEMBLY (INC. 3-5)
  • 3
    0423-635 ...PIN, ROLL
    ...PIN, ROLL
  • 4
    0423-677 ...COLLAR
    ...COLLAR
  • 5
    0423-636 ...SPRING
    ...SPRING
  • 6
    0441-592 ...BUSHING, RACK
    ...BUSHING, RACK
  • 7
    8410-835 SCREW, CAP-HFH M8X1.25X35 CL8.8 RIE BLK
    SCREW, CAP-HFH M8X1.25X35 CL8.8 RIE BLK
  • 8
    0423-669 SPACER
    SPACER
  • 9
    0423-465 GROMMET
    GROMMET
  • 10
    8432-802 NUT, LOCK
    NUT, LOCK
  • 11
    0423-654 SCREW, SHOULDER-HFH M6-1.0 X 18 CL8.8 BLK
    SCREW, SHOULDER-HFH M6-1.0 X 18 CL8.8 BLK
  • 12
    2506-092 BRACKET, REAR FENDER-PAINTED - RIGHT
    BRACKET, REAR FENDER-PAINTED - RIGHT
  • 12
    2506-093 BRACKET, REAR FENDER-PAINTED - LEFT
    BRACKET, REAR FENDER-PAINTED - LEFT
  • 13
    0423-087 WASHER
    WASHER
  • 14
    8050-222 WASHER
    WASHER
  • 15
    0423-540 NUT, LOCK
    NUT, LOCK
  • 16
    0423-419 SCREW, MACH-TSTRH-M6-1.0 X 16 BLACK
    SCREW, MACH-TSTRH-M6-1.0 X 16 BLACK
  • 17
    2406-042 FOOTWELL, REAR - RIGHT
    FOOTWELL, REAR - RIGHT
  • 17
    2406-043 FOOTWELL, REAR - LEFT
    FOOTWELL, REAR - LEFT
  • 18
    1506-813 FOOTWELL - RIGHT
    FOOTWELL - RIGHT
  • 18
    2406-471 FOOTWELL - LEFT
    FOOTWELL - LEFT
  • 19
    0423-355 SCREW, SHOULDER-M6-1.0 X 18-BLK
    SCREW, SHOULDER-M6-1.0 X 18-BLK
  • 20
    1506-125 FOOTPEG, BLACK
    FOOTPEG, BLACK
  • 21
    8477-620 SCREW, MACH-TSTRH M6X1.0X20 Z & BLK
    SCREW, MACH-TSTRH M6X1.0X20 Z & BLK
  • 22
    0623-362 RIVET, REINSTALLABLE
    RIVET, REINSTALLABLE
  • 23
    0423-101 SCREW, BODY
    SCREW, BODY
