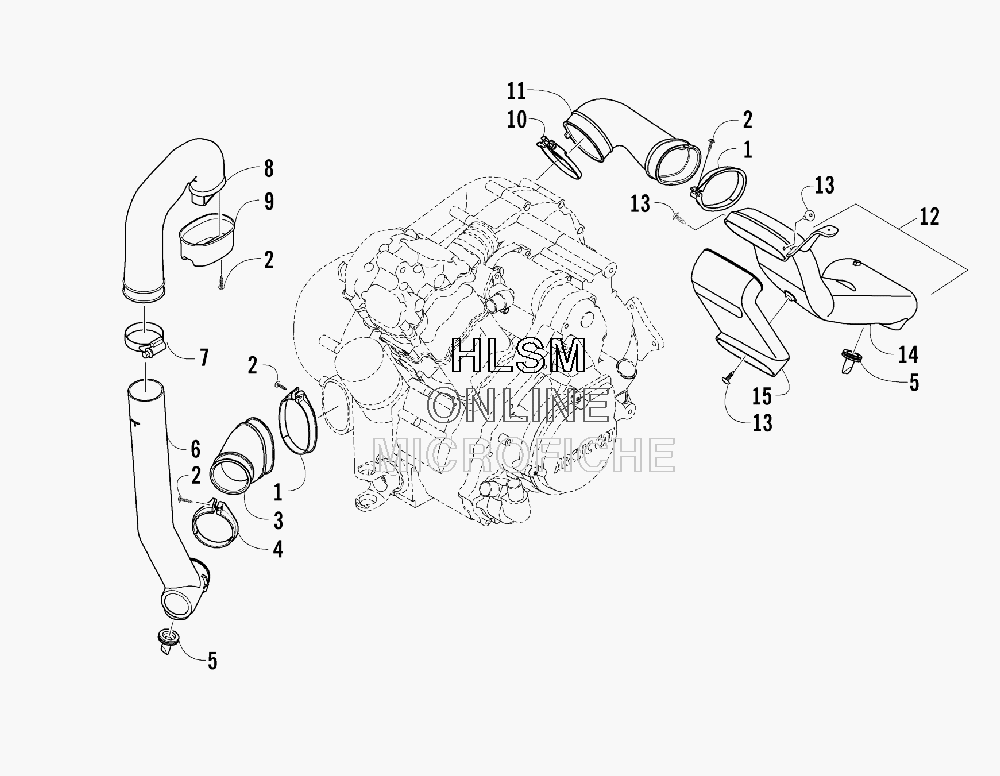

CASE/BELT COOLING ASSEMBLY для Arctic Cat 650 H1 TRV (RED) [A2008TBS4BUSR] - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    0423-550 CLAMP, PLASTIC
    CLAMP, PLASTIC
  • 2
    0423-342 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 3
    0413-198 BOOT, DUCT - AIR INTAKE - FRONT
    BOOT, DUCT - AIR INTAKE - FRONT
  • 4
    0423-551 CLAMP, BOOT
    CLAMP, BOOT
  • 5
    0470-442 VALVE, DRAIN
    VALVE, DRAIN
  • 6
    0513-010 DUCT, AIR INTAKE - FRONT - LOWER
    DUCT, AIR INTAKE - FRONT - LOWER
  • 7
    0423-019 CLAMP, BOOT
    CLAMP, BOOT
  • 8
    0470-750 DUCT, AIR INTAKE - FRONT - UPPER
    DUCT, AIR INTAKE - FRONT - UPPER
  • 9
    0470-729 CUP, AIR INTAKE
    CUP, AIR INTAKE
  • 10
    0423-730 CLAMP, BOOT
    CLAMP, BOOT
  • 11
    0413-187 BOOT, DUCT - AIR OUT - REAR
    BOOT, DUCT - AIR OUT - REAR
  • 12
    0470-766 DUCT, AIR OUT - REAR (INC. THREE NO. 13 AND 14-15)
    DUCT, AIR OUT - REAR (INC. THREE NO. 13 AND 14-15)
  • 13
    0623-784 ...SCREW, SELF TAP-TSTRH #10-12X3/4 TP A BLK
    ...SCREW, SELF TAP-TSTRH #10-12X3/4 TP A BLK
  • 14
    0470-777 ...DUCT, AIR OUT - PRIMARY
    ...DUCT, AIR OUT - PRIMARY
  • 15
    0470-778 ...DUCT, AIR OUT - SECONDARY
    ...DUCT, AIR OUT - SECONDARY
