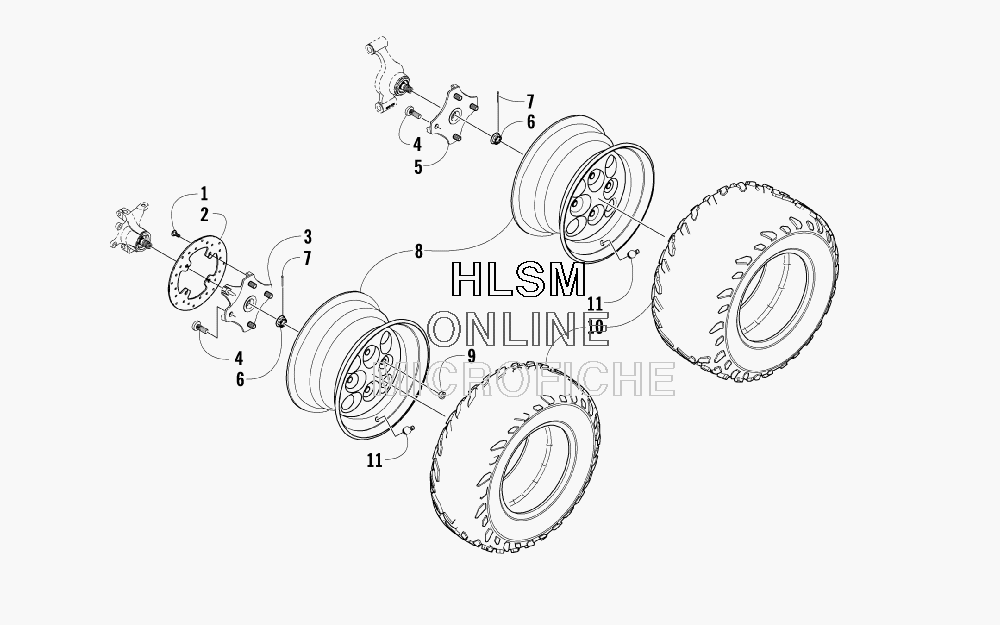

WHEEL AND TIRE ASSEMBLY для Arctic Cat 366 (RED) [A2008IDG4BUSR] - 2008 года выпуска
-
№АртикулНазвание
-
13323-102 SCREW, SHOULDER W/LOCTITESCREW, SHOULDER W/LOCTITE
-
23323-097 DISC, BRAKEDISC, BRAKE
-
33323-100 HUB, WHEEL - FRONT (INC. 4)HUB, WHEEL - FRONT (INC. 4)
-
40402-974 ...STUD, WHEEL HUB...STUD, WHEEL HUB
-
53323-113 HUB, WHEEL - REAR - LEFT (INC. 4)HUB, WHEEL - REAR - LEFT (INC. 4)
-
53323-100 HUB, WHEEL - REAR - RIGHT (INC. 4)HUB, WHEEL - REAR - RIGHT (INC. 4)
-
63323-140 NUT, CASTLE FLANGENUT, CASTLE FLANGE
-
70423-407 PIN, COTTERPIN, COTTER
-
83313-306 WHEEL - GRAYWHEEL - GRAY
-
93323-173 NUT, MOUNTING - WHEELNUT, MOUNTING - WHEEL
-
103313-311 TIRE - FRONTTIRE - FRONT
-
103313-312 TIRE - REARTIRE - REAR
-
113304-562 STEM, VALVESTEM, VALVE
