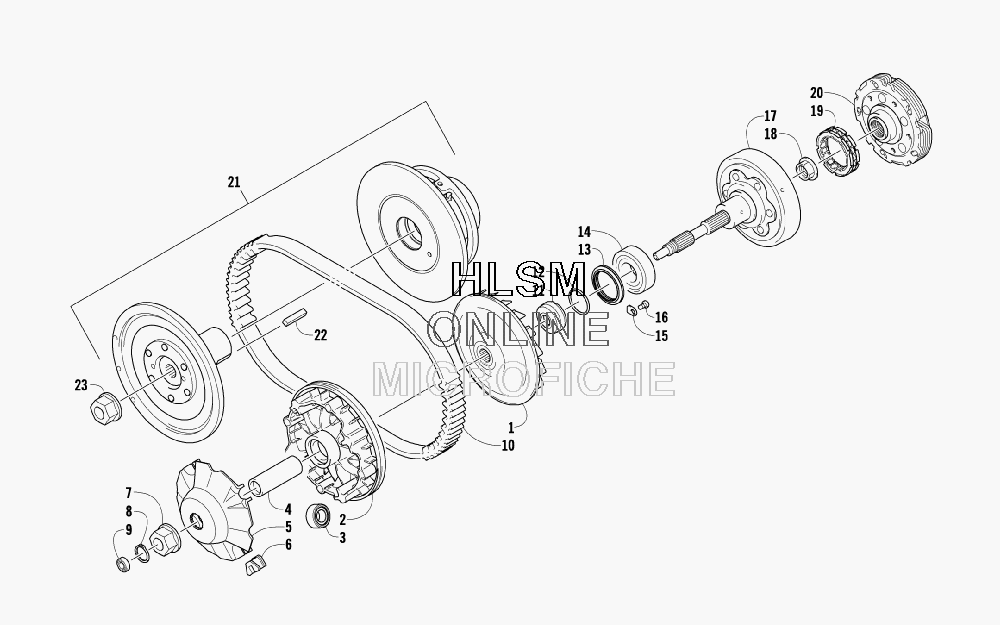

TRANSMISSION ASSEMBLY для Arctic Cat 366 (RED) [A2008IDG4BUSR] - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    0823-203 FACE, FIXED DRIVE
    FACE, FIXED DRIVE
  • 2
    0823-207 FACE, MOVABLE DRIVE
    FACE, MOVABLE DRIVE
  • 3
    0823-210 ROLLER, MOVABLE DRIVE FACE
    ROLLER, MOVABLE DRIVE FACE
  • 4
    0823-206 SPACER, MOVABLE DRIVE FACE
    SPACER, MOVABLE DRIVE FACE
  • 5
    0823-213 PLATE, MOVABLE DRIVE FACE
    PLATE, MOVABLE DRIVE FACE
  • 6
    0823-214 DAMPER, MOVABLE DRIVE FACE
    DAMPER, MOVABLE DRIVE FACE
  • 7
    3323-165 NUT, FLANGE
    NUT, FLANGE
  • 8
    3303-347 CIRCLIP
    CIRCLIP
  • 9
    0832-023 BEARING
    BEARING
  • 10
    0823-228 V-BELT
    V-BELT
  • 11
    0823-058 SPACER, FIXED DRIVE FACE
    SPACER, FIXED DRIVE FACE
  • 12
    0830-187 O-RING
    O-RING
  • 13
    0830-157 SEAL, CLUTCH HOUSING
    SEAL, CLUTCH HOUSING
  • 14
    0832-071 BEARING
    BEARING
  • 15
    0822-104 RETAINER, BEARING
    RETAINER, BEARING
  • 16
    0826-071 SCREW, BEARING RETAINER
    SCREW, BEARING RETAINER
  • 17
    0823-200 HOUSING, CLUTCH
    HOUSING, CLUTCH
  • 18
    0827-050 NUT
    NUT
  • 19
    0823-198 CLUTCH, ONE-WAY
    CLUTCH, ONE-WAY
  • 20
    0823-197 SHOE, CLUTCH - ASSEMBLY
    SHOE, CLUTCH - ASSEMBLY
  • 21
    0823-238 CLUTCH, DRIVEN - ASSEMBLY (INC. 22)
    CLUTCH, DRIVEN - ASSEMBLY (INC. 22)
  • 22
    0829-043 ...KEY
    ...KEY
  • 23
    0827-058 NUT, FLANGE
    NUT, FLANGE
